2390138 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
1.25P 14POS WTB VERT BRD W LATCH AU NA
| Part | Fastening Type | Contact Finish Thickness - Mating | Contact Finish - Mating | Material Flammability Rating | Contact Finish - Post | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Height | Number of Positions | Shrouding | Number of Positions Loaded | Contact Shape | Features | Insulation Material | Pitch - Mating | Contact Material | Insulation Color | Mounting Type | Current Rating (Per Contact) | Number of Rows | Contact Type | Voltage Rating | Termination | Connector Type | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post (string_set) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Latch Holder | Flash | Gold | UL94 V-0 | Gold | -40 °C | 105 °C | 0.159 in | 14 | Shrouded - 4 Wall | All | Rectangular | Solder Retention | Liquid Crystal Polymer (LCP) | 0.049 in | Copper Alloy | Natural | Surface Mount | 1 A | 1 | Male Pin | 50 V | Solder | Header | Board Cable/Wire | Flash | Flash |
 TE Connectivity AMP Connectors | Latch Holder | Flash | Gold | UL94 V-0 | Gold | -40 °C | 105 °C | 0.159 in | 11 | Shrouded - 4 Wall | All | Rectangular | Solder Retention | Liquid Crystal Polymer (LCP) | 0.049 in | Copper Alloy | Natural | Surface Mount | 1 A | 1 | Male Pin | 50 V | Solder | Header | Board Cable/Wire | Flash | Flash |

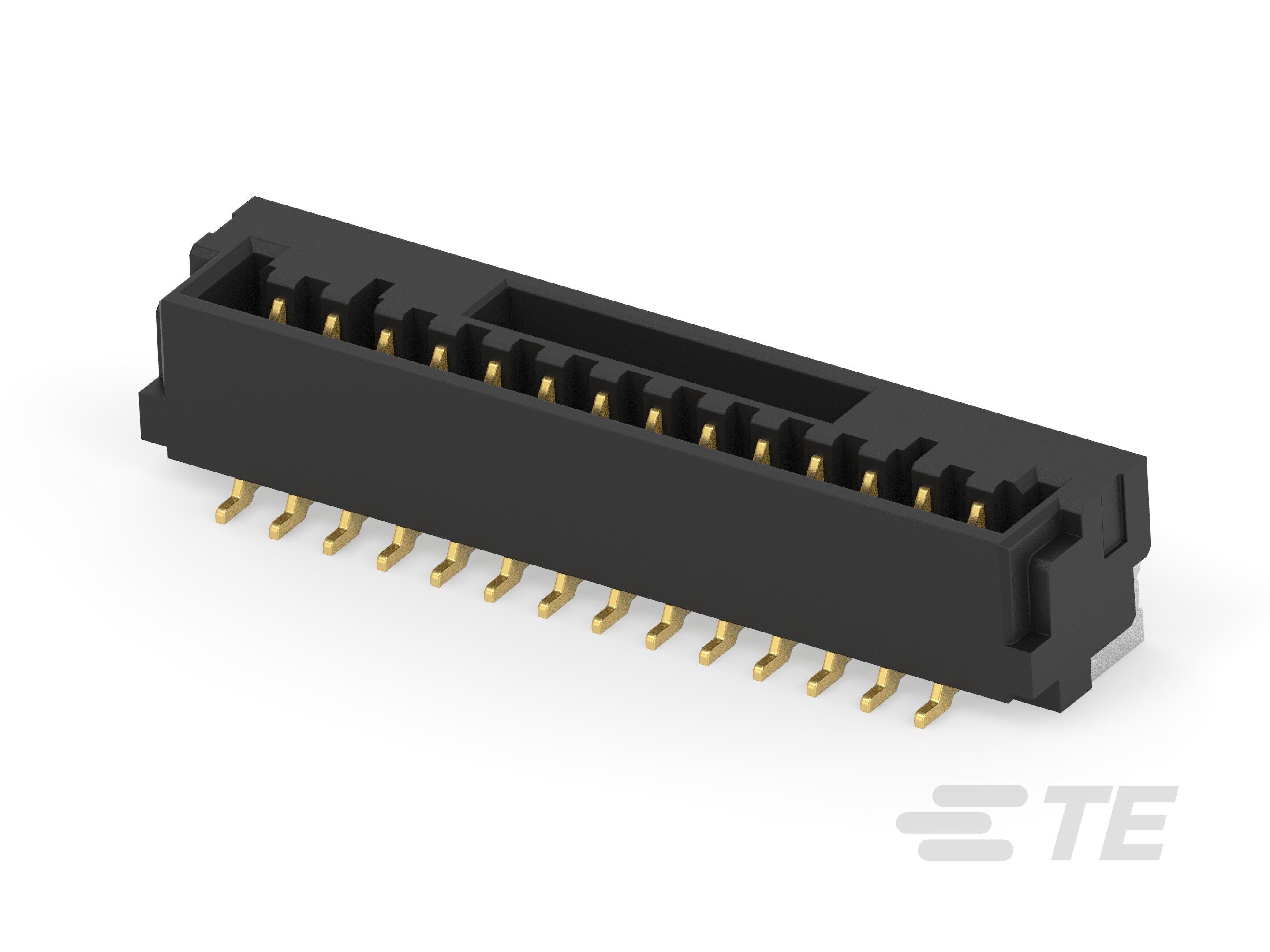

 TE Connectivity AMP Connectors | Latch Holder | Flash | Gold | UL94 V-0 | Gold | -40 °C | 105 °C | 0.159 in | 14 | Shrouded - 4 Wall | All | Rectangular | Solder Retention | Liquid Crystal Polymer (LCP) | 0.049 in | Copper Alloy | Black | Surface Mount | 1 A | 1 | Male Pin | 50 V | Solder | Header | Board Cable/Wire | Flash | Flash |
