85310I-11 Series

Low Skew,1-to-10 Differential-to-3.3V,2.5V LVPECL/ECL Fanout Buffer

Manufacturer: Renesas Electronics Corporation

Catalog

Low Skew,1-to-10 Differential-to-3.3V,2.5V LVPECL/ECL Fanout Buffer

Part	Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Package Width	Package Name	Package Length	Output	Differential Input	Differential Output	Package / Case	Input	Input Ratio	Output Ratio	Frequency - Max	Number of Circuits
Renesas Electronics Corporation 85310AYI-11LF	Fanout Buffer (Distribution) Multiplexer	3.8 V	2.375 V	Surface Mount	-40 °C	85 °C	7 mm	32-TQFP	7 mm	ECL LVPECL	Yes	Yes	32-LQFP	HCSL LVDS LVHSTL LVPECL SSTL	2	10	700 MHz	1
Renesas Electronics Corporation 85310AYI-11LFT	Fanout Buffer (Distribution) Multiplexer	3.8 V	2.375 V	Surface Mount	-40 °C	85 °C	7 mm	32-TQFP	7 mm	ECL LVPECL	Yes	Yes	32-LQFP	HCSL LVDS LVHSTL LVPECL SSTL	2	10	700 MHz	1

Catalog

Low Skew,1-to-10 Differential-to-3.3V,2.5V LVPECL/ECL Fanout Buffer

Description

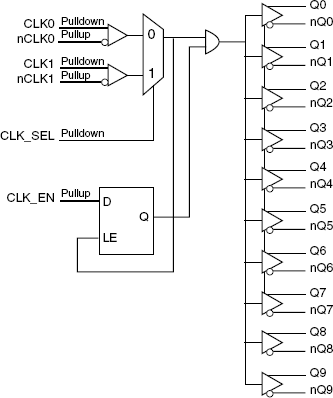

The 85310I-11 is a low skew, high performance 1-to-10 Differential-to-2.5V/3.3V ECL/LVPECL Fanout Buffer. The CLKx, nCLKx pairs can accept most standard differential input levels. The 85310I-11 is characterized to operate from either a 2.5V or a 3.3V power supply. Guaranteed output and part-to-part skew characteristics make the 85310I-11 ideal for those clock distribution applications demanding well defined performance and repeatability.
