EX-13 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

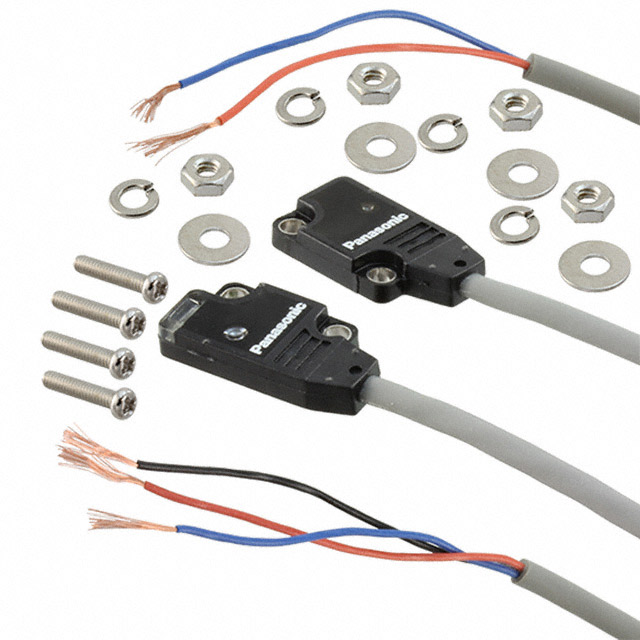

SENSOR THROUGH-BEAM 500MM NPN
| Part | Cable Length | Sensing Method | Output Configuration | Connection Method | Sensing Distance | Operating Temperature (Min) | Operating Temperature (Max) | Ingress Protection | Light Source | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 78.74 in | Through-Beam | Light-ON NPN - Open Collector | Cable | 19.685 " | -25 °C | 55 °C | IP67 | Red LED | 12 VDC | 24 VAC | 500 µs |
 Panasonic Industrial Automation Sales | 78.74 in | Through-Beam | Light-ON NPN - Open Collector | Cable | 19.685 " | -25 °C | 55 °C | IP67 | Red LED | 12 VDC | 24 VAC | 500 µs |
 Panasonic Industrial Automation Sales | 78.74 in | Through-Beam | Dark-ON NPN - Open Collector | Cable | 19.685 " | -25 °C | 55 °C | IP67 | Red LED | 12 VDC | 24 VAC | 500 µs |
Panasonic Industrial Automation Sales | 118.1 in | Through-Beam | Light-ON PNP - Open Collector | Cable | 19.685 " | -25 °C | 55 °C | IP67 | Red LED | 12 VDC | 24 VAC | 500 µs |
Panasonic Industrial Automation Sales | 78.74 in | Through-Beam | Light-ON NPN - Open Collector | Cable | 19.685 " | -25 °C | 55 °C | IP67 | Red LED | 12 VDC | 24 VAC | 500 µs |
 Panasonic Industrial Automation Sales | 78.74 in | Through-Beam | Light-ON PNP - Open Collector | Cable | 19.685 " | -25 °C | 55 °C | IP67 | Red LED | 12 VDC | 24 VAC | 500 µs |
Panasonic Industrial Automation Sales | 118.1 in | Through-Beam | Light-ON NPN - Open Collector | Cable | 19.685 " | -25 °C | 55 °C | IP67 | Red LED | 12 VDC | 24 VAC | 500 µs |
 Panasonic Industrial Automation Sales | 196.85 in | Through-Beam | Light-ON NPN - Open Collector | Cable | 19.685 " | -25 °C | 55 °C | IP67 | Red LED | 12 VDC | 24 VAC | 500 µs |
 Panasonic Industrial Automation Sales | 78.74 in | Through-Beam | Dark-ON NPN - Open Collector | Cable | 19.685 " | -25 °C | 55 °C | IP67 | Red LED | 12 VDC | 24 VAC | 500 µs |
 Panasonic Industrial Automation Sales | 78.74 in | Through-Beam | Light-ON NPN - Open Collector | Cable | 19.685 " | -25 °C | 55 °C | IP67 | Red LED | 12 VDC | 24 VAC | 500 µs |
