382465 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

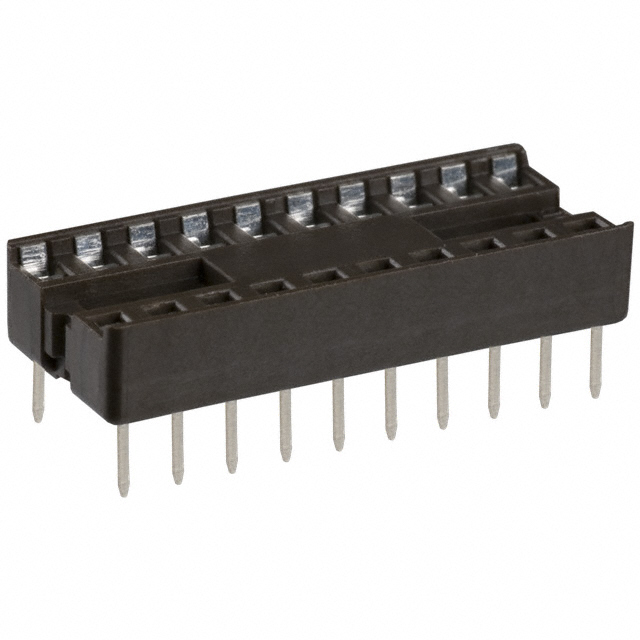

CONN IC DIP SOCKET 20POS TIN
| Part | Contact Resistance | Termination Post Length | Material Flammability Rating | Pitch - Mating | Features | Contact Finish - Mating | Contact Finish - Post | Pitch - Post | Operating Temperature (Min) | Operating Temperature (Max) | Termination | Contact Material - Mating | Row Spacing | Type | Grid Rows | Grid Columns | Number of Positions or Pins (Grid) | Contact Material - Post | Housing Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 30 mOhm | 0.128 in | UL94 V-0 | 0.1 in | Closed Frame | Tin | Tin | 0.1 in | -55 °C | 105 °C | Solder | Phosphor Bronze | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 2 | 10 | 20 | Phosphor Bronze | Thermoplastic | Through Hole |
