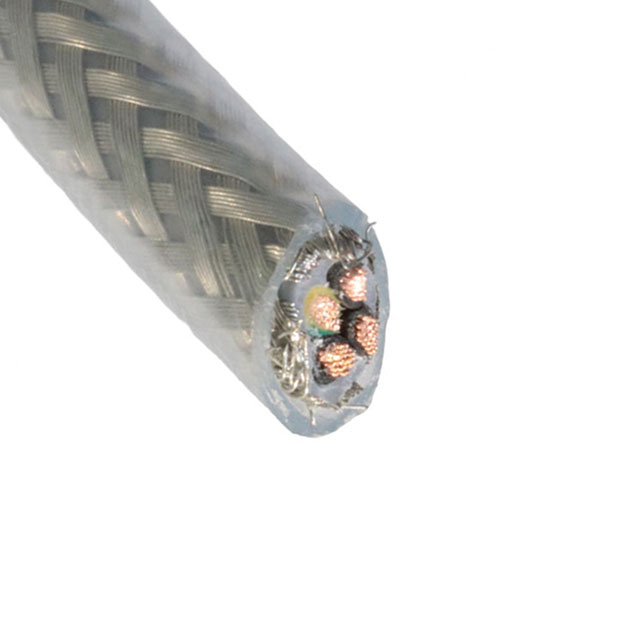

470415CY Series

Catalog

CABLE 4COND 15AWG CLEAR SHLD 1M

Part	Conductor Strand Count	Conductor Strand Diameter	Length	Jacket (Insulation) Material	Wire Gauge	Shield Type	Number of Conductors	Voltage	Shield Coverage	Jacket (Insulation) Diameter	Cable Type	Jacket (Insulation) Thickness	Features	Operating Temperature (Max)	Operating Temperature (Min)	Usage	Conductor Insulation	Jacket Color	Conductor Material	Shield Material
ALPHA WIRE 470415CY CL432	28	0.0098 in	3.28 ft 16.4 ft 32.81 ft 65.62 ft	Poly-Vinyl Chloride (PVC)	15 AWG	Braid	4	300 V	80 %	0.394 in	Conductor Multi	0.0394 in	Chemical Resistant Oil Resistant UV Resistant	80 °C	-40 °C	Industrial	Poly-Vinyl Chloride (PVC)	Clear	Bare Copper	Copper Tinned
ALPHA WIRE 470415CY GE432	28	0.0098 in	3.28 ft 32.81 ft 984.3 ft	Poly-Vinyl Chloride (PVC)	15 AWG	Braid	4	300 V	80 %	0.394 in	Conductor Multi	0.0394 in	Chemical Resistant Oil Resistant UV Resistant	80 °C	-40 °C	Industrial	Poly-Vinyl Chloride (PVC)	Gray	Bare Copper	Copper Tinned
ALPHA WIRE 470415CY CL033	28	0.0098 in	328.1 ft	Poly-Vinyl Chloride (PVC)	15 AWG	Braid	4	300 V	80 %	0.394 in	Conductor Multi	0.0394 in	Chemical Resistant Oil Resistant UV Resistant	80 °C	-40 °C	Industrial	Poly-Vinyl Chloride (PVC)	Clear	Bare Copper	Copper Tinned
ALPHA WIRE 470415CY GE321	28	0.0098 in	164 ft	Poly-Vinyl Chloride (PVC)	15 AWG	Braid	4	300 V	80 %	0.394 in	Conductor Multi	0.0394 in	Chemical Resistant Oil Resistant UV Resistant	80 °C	-40 °C	Industrial	Poly-Vinyl Chloride (PVC)	Gray	Bare Copper	Copper Tinned
