2337992 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

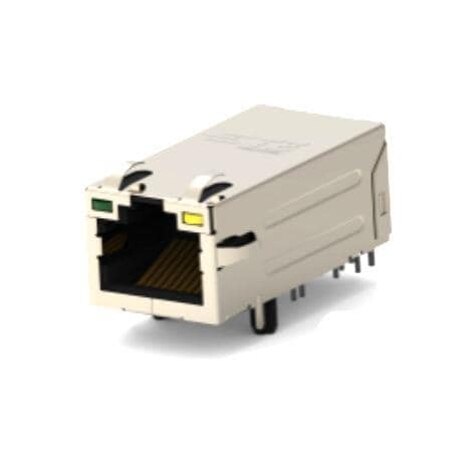

MODULAR CONNECTORS / ETHERNET CONNECTORS RJ45 JACK MAG. POE 1GB LED 1X1 INV.
| Part | Number of Ports | Operating Temperature (Min) | Operating Temperature (Max) | Connector Type | Applications | Tab Direction | Height Above Board | Mounting Type | LED Color | Termination | Features | Contact Finish | Number of Rows | Shielding | Orientation Angle | Orientation Direction | Number of Cores per Jack | Contact Material | Contact Finish Thickness | Housing Material | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | -40 °C | 85 °C | RJ45 | 1G Base-T AutoMDIX Power over Ethernet (PoE) | Up | 0.536 in | Through Hole | Green - Yellow | Solder | Board Guide | Gold | 1 | EMI Finger Shielded | 90 ° | Right | 8 | Copper Alloy | 30 µin | LCP Liquid Crystal Polymer | Brass |
 TE Connectivity AMP Connectors | 1 | -40 °C | 85 °C | RJ45 | 1G Base-T AutoMDIX Power over Ethernet (PoE) | Up | 0.536 in | Through Hole | Green - Yellow | Solder | Board Guide | Gold | 1 | EMI Finger Shielded | 90 ° | Right | 8 | Copper Alloy | 30 µin | LCP Liquid Crystal Polymer | Brass |
 TE Connectivity AMP Connectors | 1 | -40 °C | 85 °C | RJ45 | 1G Base-T AutoMDIX Power over Ethernet (PoE) | Down | 0.537 in | Through Hole | Green - Yellow | Solder | Board Guide | Gold | 1 | Shielded | 90 ° | Right | 8 | Copper Alloy | 30 µin | LCP Liquid Crystal Polymer | Brass |
