747562 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

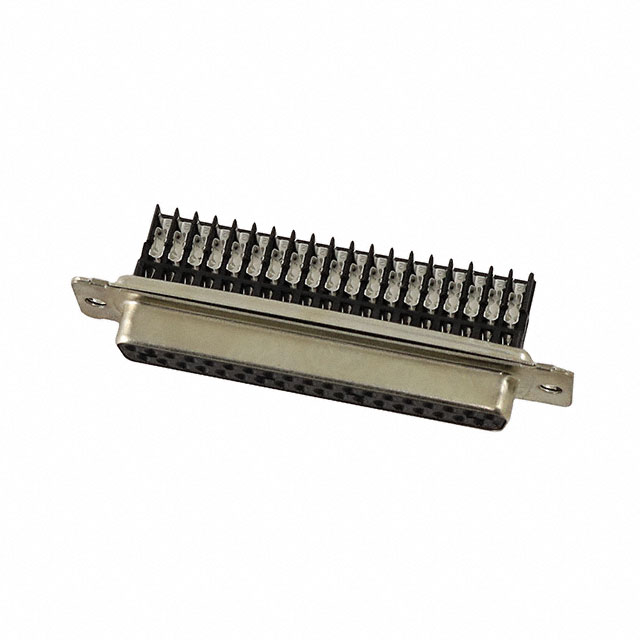

CONN D-SUB RCPT 37POS IDC
| Part | Dielectric Material | Connector Type | Connector Style | Contact Finish | Termination | Color | Shell Size, Connector Layout | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Voltage Rating | Wire Gauge [Min] | Wire Gauge [Max] | Flange Feature | Number of Rows | Mounting Type | Contact Material | Contact Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Thermoplastic | Receptacle Female Sockets | D-Sub | Gold | Discrete Wire IDC | Black | 4 (DC C) | 37 | 0.76 Ám | 30 Áin | 250 VDC | 22 AWG | 26 AWG | Housing/Shell (Unthreaded) | 2 | Free Hanging (In-Line) | Phosphor Bronze | Signal | Varies by Wire Gauge | 105 ░C | -55 °C | UL94 V-0 |
