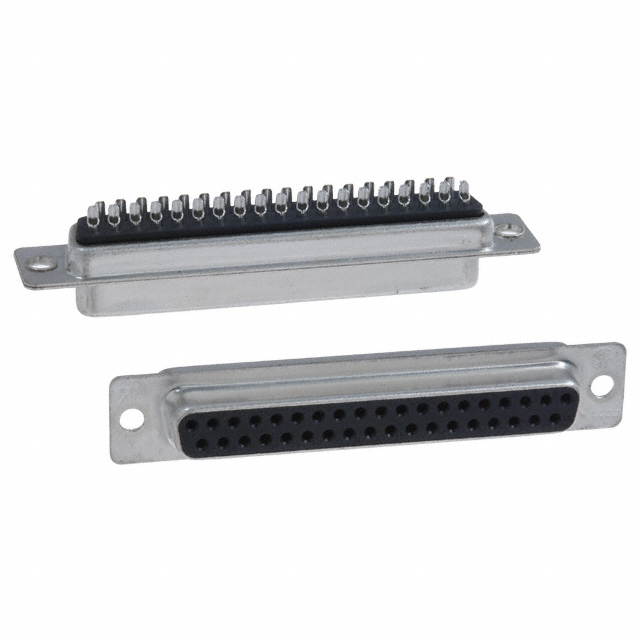

747917 Series

Catalog

37 RCPT SOLDER CUP, 30 GOLD, ROHS COMPLI

Part	Number of Positions	Termination	Contact Finish	Mounting Type	Contact Type	Current Rating	Connector Type	Number of Rows	Material Flammability Rating	Flange Feature	Contact Finish Thickness	Finish	Shell Material	Connector Style	Shell Size	Connector Layout	Dielectric Material	Color	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Voltage Rating
TE Connectivity AMP Connectors 5-747917-5	37 pos	Solder Cup	Gold	Free Hanging (In-Line)	Signal	3 A	Female Sockets Receptacle	2	UL94 V-0	Housing Shell (Unthreaded)	30 µin	Tin Plated	Steel	D-Sub	4	C DC	Glass Filled Polybutylene Terephthalate (PBT)	Black	-55 °C	105 °C	Brass	250 V
TE Connectivity AMP Connectors 747917-2	37 pos	Solder Cup	Gold	Free Hanging (In-Line)	Signal	3 A	Female Sockets Receptacle	2	UL94 V-0	Housing Shell (Unthreaded)	8 µin	Tin Plated	Steel	D-Sub	4	C DC	Glass Filled Polybutylene Terephthalate (PBT)	Black	-55 °C	105 °C	Brass	250 V
TE Connectivity AMP Connectors 747917-5	37 pos	Solder Cup	Gold	Free Hanging (In-Line)	Signal	3 A	Female Sockets Receptacle	2	UL94 V-0	Housing Shell (Unthreaded)	30 µin	Tin Plated	Steel	D-Sub	4	C DC	Glass Filled Polybutylene Terephthalate (PBT)	Black	-55 °C	105 °C	Brass	250 V
