PAH-28 Series | Murata Electronics | Zenode.ai

Catalog

Isolated DC/DC Converters - Through Hole 448W 36-75VIN 28VOUT DC/DC

Part	Voltage - Output 1	Voltage - Isolation	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Features	Control Features	Applications	Current - Output (Max)	Number of Outputs	Type	Mounting Type	Voltage - Input (Min)	Voltage - Input (Max)	Efficiency	Power (Watts)
Murata Electronics PAH-28/12.5-D48NB-C	28 V	2.25 kV	-40 °C	85 °C	1/2 Brick 9-DIP Module	2.3 in	0.5 in	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	ITE (Commercial)	12.5 A	1	Isolated Module	Through Hole	36 V	75 V	93 %	350 W

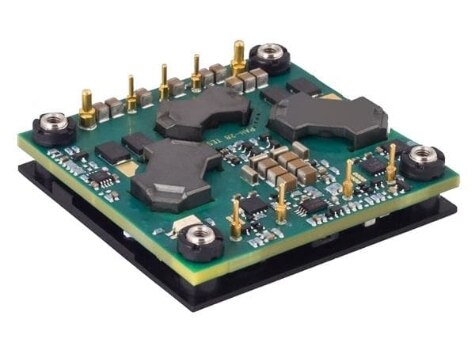

Murata Electronics PAH-28/16-D48PB1-C	28 V	2.25 kV	-40 °C	85 °C	1/2 Brick 9-DIP Module	2.3 in	0.5 in	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	ITE (Commercial)	16 A	1	Isolated Module	Through Hole	36 V	75 V	93.5 %	450 W
Murata Electronics PAH-28/12.5-D24PB-C	28 V	2.25 kV	-40 °C	85 °C	1/2 Brick 9-DIP Module	2.3 in	0.5 in	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	ITE (Commercial)	12.5 A	1	Isolated Module	Through Hole	18 V	36 V	92.5 %	350 W
Murata Electronics PAH-28/12.5-D48PB-C	28 V	2.25 kV	-40 °C	85 °C	1/2 Brick 9-DIP Module	2.3 in	0.5 in	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	ITE (Commercial)	12.5 A	1	Isolated Module	Through Hole	36 V	75 V	93 %	350 W
Murata Electronics PAH-28/12.5-D48NB1-C	28 V	2.25 kV	-40 °C	85 °C	1/2 Brick 9-DIP Module	2.3 in	0.5 in	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	ITE (Commercial)	12.5 A	1	Isolated Module	Through Hole	36 V	75 V	93 %	350 W
Murata Electronics PAH-28/16-D48N-C	28 V	2.25 kV	-40 °C	85 °C	1/2 Brick 9-DIP Module	2.3 in	0.5 in	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	ITE (Commercial)	16 A	1	Isolated Module	Through Hole	36 V	75 V	93.5 %	450 W
Murata Electronics PAH-28/12.5-D24NB-C	28 V	2.25 kV	-40 °C	85 °C	1/2 Brick 9-DIP Module	2.3 in	0.5 in	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	ITE (Commercial)	12.5 A	1	Isolated Module	Through Hole	18 V	36 V	92.5 %	350 W
Murata Electronics PAH-28/16-D48NB1-C	28 V	2.25 kV	-40 °C	85 °C	1/2 Brick 9-DIP Module	2.3 in	0.5 in	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	ITE (Commercial)	16 A	1	Isolated Module	Through Hole	36 V	75 V	93.5 %	450 W
Murata Electronics PAH-28/16-D48NB-C	28 V	2.25 kV	-40 °C	85 °C	1/2 Brick 9-DIP Module	2.3 in	0.5 in	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	ITE (Commercial)	16 A	1	Isolated Module	Through Hole	36 V	75 V	93.5 %	450 W
