292161 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
WIRE-TO-BOARD CONNECTOR, VERTICAL, AMP CT SERIES, THROUGH HOLE, HEADER, 4, 2 MM ROHS COMPLIANT: YES
| Part | Termination | Contact Finish - Mating | Insulation Color | Style | Contact Length - Mating | Overall Contact Length | Contact Finish - Post | Contact Length - Post | Contact Material | Insulation Material | Voltage Rating | Contact Shape | Pitch - Mating | Mounting Type | Connector Type | Contact Type | Fastening Type | Insulation Height | Number of Positions | Material Flammability Rating | Current Rating | Current Rating | Shrouding | Number of Rows | Number of Positions Loaded | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Kinked Pin Solder | Tin | Natural | Board Cable/Wire | 0.177 in | 0.37 in | Tin | 0.126 in | Brass | Nylon 6/6 Polyamide (PA66) | 125 V | Circular | 0.079 in | Through Hole | Header | Male Pin | Detent Lock | 0.268 in | 4 | UL94 V-0 | 0 A | Varies by Wire Gauge | Shrouded - 3 Wall | 1 | All | General Purpose |
 TE Connectivity AMP Connectors | Kinked Pin Solder | Tin | Black | Board Cable/Wire | 0.177 in | 0.37 in | Tin | 0.126 in | Brass | Nylon 6/6 Polyamide (PA66) | 125 V | Circular | 0.079 in | Through Hole | Header | Male Pin | Detent Lock | 0.268 in | 10 | UL94 V-0 | 0 A | Varies by Wire Gauge | Shrouded - 3 Wall | 1 | All | General Purpose |
 TE Connectivity AMP Connectors | Kinked Pin Solder | Tin | Natural | Board Cable/Wire | 0.177 in | 0.37 in | Tin | 0.126 in | Brass | Nylon 6/6 Polyamide (PA66) | 125 V | Circular | 0.079 in | Through Hole | Header | Male Pin | Detent Lock | 0.268 in | 12 | UL94 V-0 | 0 A | Varies by Wire Gauge | Shrouded - 3 Wall | 1 | All | General Purpose |
 TE Connectivity AMP Connectors | Kinked Pin Solder | Tin | Natural | Board Cable/Wire | 0.177 in | 0.37 in | Tin | 0.126 in | Brass | Nylon 6/6 Polyamide (PA66) | 125 V | Circular | 0.079 in | Through Hole | Header | Male Pin | Detent Lock | 0.268 in | 9 | UL94 V-0 | 0 A | Varies by Wire Gauge | Shrouded - 3 Wall | 1 | All | General Purpose |
TE Connectivity AMP Connectors | Kinked Pin Solder | Tin | Blue | Board Cable/Wire | 0.177 in | 0.37 in | Tin | 0.126 in | Brass | Nylon 6/6 Polyamide (PA66) | 125 V | Circular | 0.079 in | Through Hole | Header | Male Pin | Detent Lock | 0.268 in | 6 | UL94 V-0 | 0 A | Varies by Wire Gauge | Shrouded - 3 Wall | 1 | All | General Purpose |

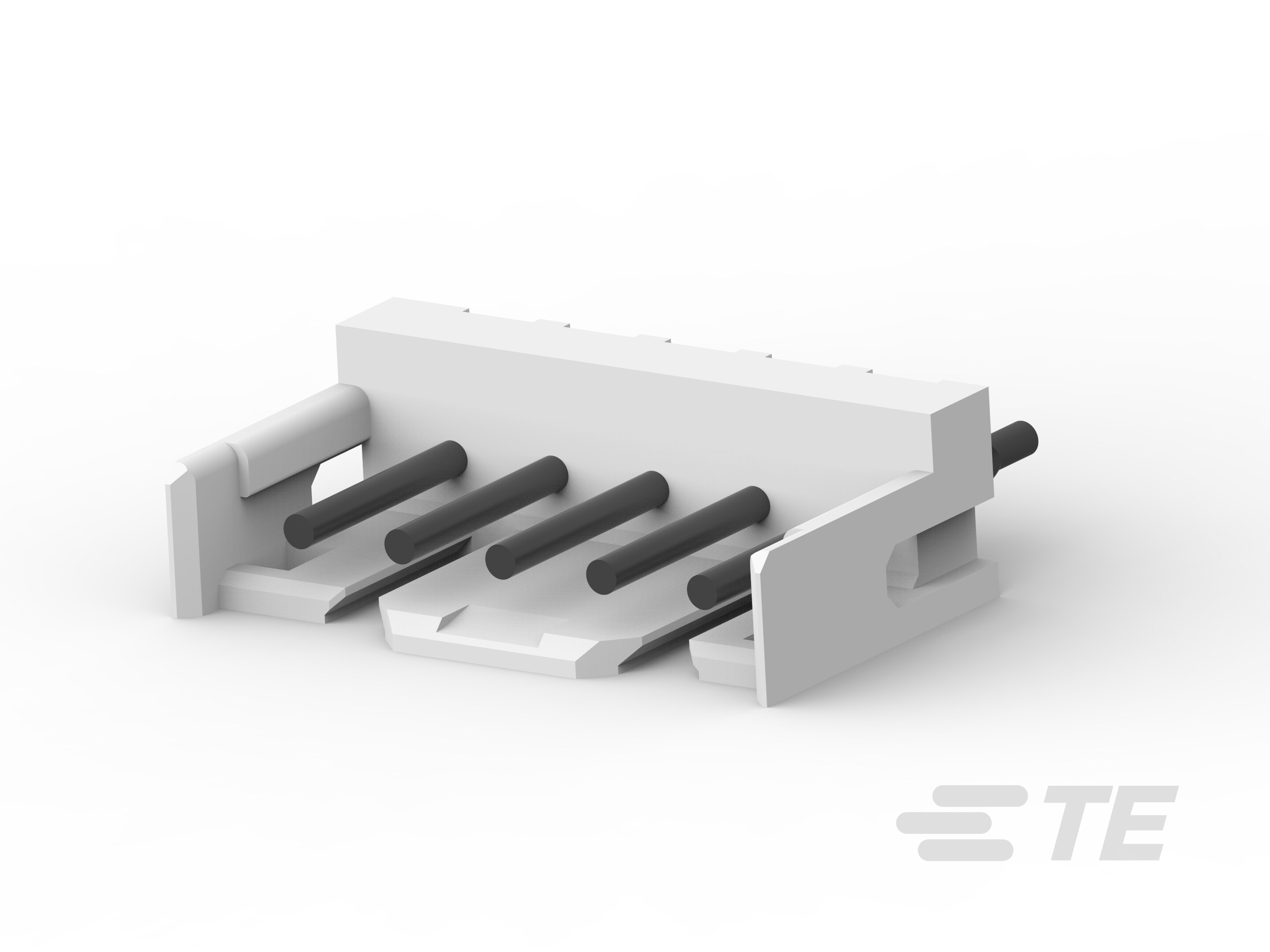

 TE Connectivity AMP Connectors | Kinked Pin Solder | Tin | Natural | Board Cable/Wire | 0.177 in | 0.37 in | Tin | 0.126 in | Brass | Nylon 6/6 Polyamide (PA66) | 125 V | Circular | 0.079 in | Through Hole | Header | Male Pin | Detent Lock | 0.268 in | 5 | UL94 V-0 | 0 A | Varies by Wire Gauge | Shrouded - 3 Wall | 1 | All | General Purpose |
 TE Connectivity AMP Connectors | Kinked Pin Solder | Tin | Black | Board Cable/Wire | 0.177 in | 0.37 in | Tin | 0.126 in | Brass | Nylon 6/6 Polyamide (PA66) | 125 V | Circular | 0.079 in | Through Hole | Header | Male Pin | Detent Lock | 0.268 in | 3 | UL94 V-0 | 0 A | Varies by Wire Gauge | Shrouded - 3 Wall | 1 | All | General Purpose |
