2373375 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

42P,2MM,SHRD HDR,DRVT,SMD,SN,TB

Part	Mounting Type	Row Spacing - Mating	Number of Rows	Contact Material	Contact Finish - Mating	Voltage Rating	Voltage Rating (Type)	Insulation Color	Number of Positions Loaded	Current Rating	Termination	Connector Type	Contact Finish Thickness - Mating	Material Flammability Rating	Pitch - Mating	Contact Length - Mating	Number of Positions	Insulation Material	Fastening Type	Contact Finish - Post	Contact Shape	Shrouding	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Contact Type	Style	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 4-2373375-2	Surface Mount	0.079 in	2	Copper Alloy	Tin	125 V	DC	Black	All	2 A	Solder	Header	78.7 Ąin	UL94 V-0	0.079 in	0.146 in	42	Thermoplastic	Detent Lock	Tin	Square	Shrouded - 2 Wall	-40 °C	105 °C	0.252 in	Male Pin	Board Board or Cable	78.7 µin
TE Connectivity AMP Connectors 1-2373375-6	Surface Mount	0.079 in	2	Copper Alloy	Tin	125 V	DC	Black	All	2 A	Solder	Header	78.7 Ąin	UL94 V-0	0.079 in	0.146 in	16	Thermoplastic	Detent Lock	Tin	Square	Shrouded - 2 Wall	-40 °C	105 °C	0.252 in	Male Pin	Board Board or Cable	78.7 µin
TE Connectivity AMP Connectors 5-2373375-0	Surface Mount	0.079 in	2	Copper Alloy	Tin	125 V	DC	Black	All	2 A	Solder	Header	78.7 Ąin	UL94 V-0	0.079 in	0.146 in	50	Thermoplastic	Detent Lock	Tin	Square	Shrouded - 2 Wall	-40 °C	105 °C	0.252 in	Male Pin	Board Board or Cable	78.7 µin
TE Connectivity AMP Connectors 2-2373375-2	Surface Mount	0.079 in	2	Copper Alloy	Tin	125 V	DC	Black	All	2 A	Solder	Header	78.7 Ąin	UL94 V-0	0.079 in	0.146 in	22	Thermoplastic	Detent Lock	Tin	Square	Shrouded - 2 Wall	-40 °C	105 °C	0.252 in	Male Pin	Board Board or Cable	78.7 µin
TE Connectivity AMP Connectors 4-2373375-8	Surface Mount	0.079 in	2	Copper Alloy	Tin	125 V	DC	Black	All	2 A	Solder	Header	78.7 Ąin	UL94 V-0	0.079 in	0.146 in	48	Thermoplastic	Detent Lock	Tin	Square	Shrouded - 2 Wall	-40 °C	105 °C	0.252 in	Male Pin	Board Board or Cable	78.7 µin

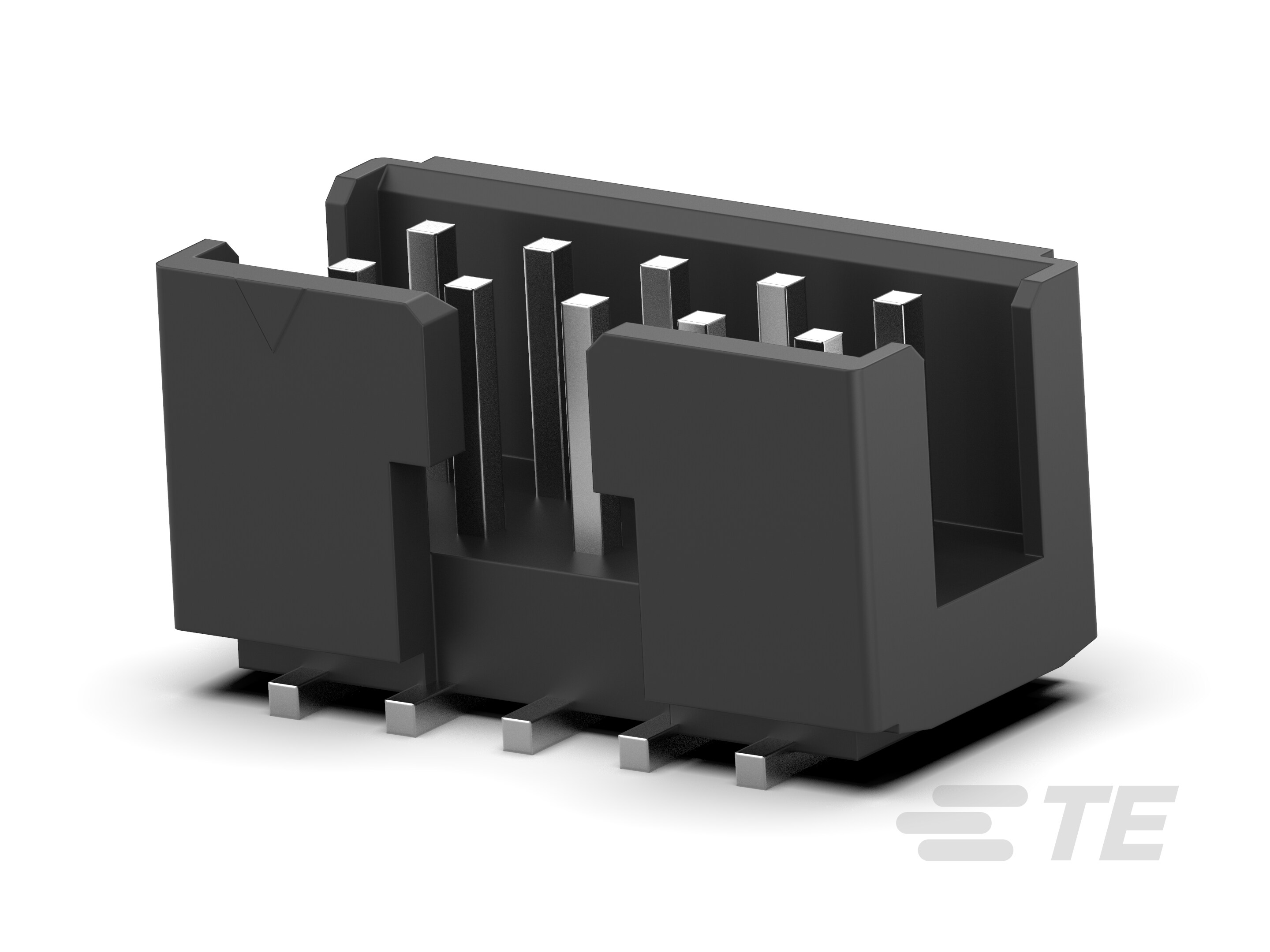

TE Connectivity AMP Connectors 1-2373375-0	Surface Mount	0.079 in	2	Copper Alloy	Tin	125 V	DC	Black	All	2 A	Solder	Header	78.7 Ąin	UL94 V-0	0.079 in	0.146 in	10	Thermoplastic	Detent Lock	Tin	Square	Shrouded - 2 Wall	-40 °C	105 °C	0.252 in	Male Pin	Board Board or Cable	78.7 µin
TE Connectivity AMP Connectors 1-2373375-2	Surface Mount	0.079 in	2	Copper Alloy	Tin	125 V	DC	Black	All	2 A	Solder	Header	78.7 Ąin	UL94 V-0	0.079 in	0.146 in	12	Thermoplastic	Detent Lock	Tin	Square	Shrouded - 2 Wall	-40 °C	105 °C	0.252 in	Male Pin	Board Board or Cable	78.7 µin
TE Connectivity AMP Connectors 1-2373375-8	Surface Mount	0.079 in	2	Copper Alloy	Tin	125 V	DC	Black	All	2 A	Solder	Header	78.7 Ąin	UL94 V-0	0.079 in	0.146 in	18	Thermoplastic	Detent Lock	Tin	Square	Shrouded - 2 Wall	-40 °C	105 °C	0.252 in	Male Pin	Board Board or Cable	78.7 µin
TE Connectivity AMP Connectors 3-2373375-2	Surface Mount	0.079 in	2	Copper Alloy	Tin	125 V	DC	Black	All	2 A	Solder	Header	78.7 Ąin	UL94 V-0	0.079 in	0.146 in	32	Thermoplastic	Detent Lock	Tin	Square	Shrouded - 2 Wall	-40 °C	105 °C	0.252 in	Male Pin	Board Board or Cable	78.7 µin
TE Connectivity AMP Connectors 1-2373375-4	Surface Mount	0.079 in	2	Copper Alloy	Tin	125 V	DC	Black	All	2 A	Solder	Header	78.7 Ąin	UL94 V-0	0.079 in	0.146 in	14	Thermoplastic	Detent Lock	Tin	Square	Shrouded - 2 Wall	-40 °C	105 °C	0.252 in	Male Pin	Board Board or Cable	78.7 µin
