FUS 300V F/A CLASS T 80A PLTD
Description
AI

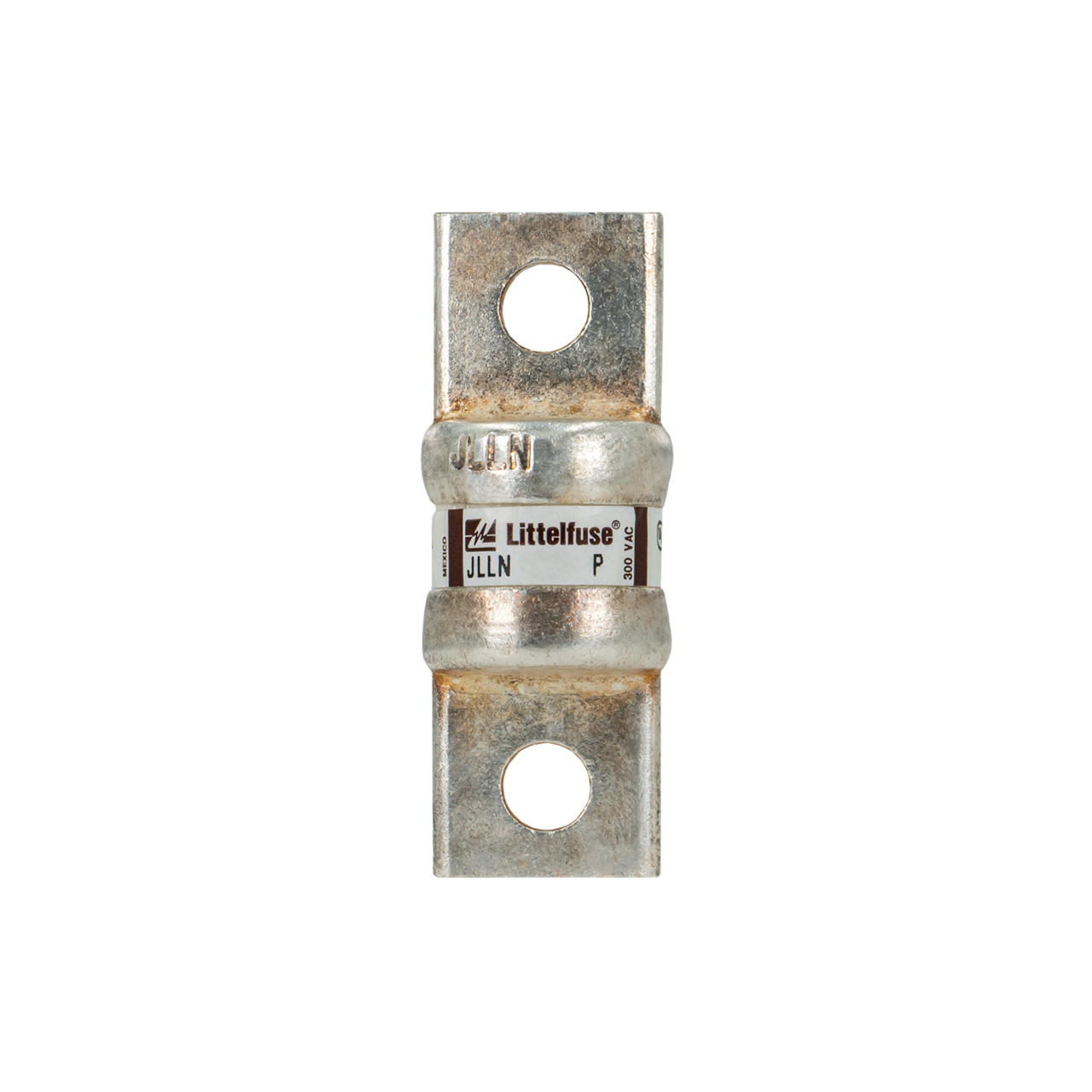

JLLN080P is a Class T fuse with an ampere rating of 80 and knife-blade-style construction.
Beta
⌘K
FUS 300V F/A CLASS T 80A PLTD
FUS 300V F/A CLASS T 80A PLTD
| Part | Voltage Rating - AC | Current Rating | Fuse Type | Size / Dimension Length | Size / Dimension Diameter | Approval Agency | Breaking Capacity (AC) | Breaking Capacity (DC) | Class | Applications | Voltage Rating - DC | Response Time | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 300 V | 80 A | Cartridge | 2.157 in | 0.811 in | CE CSA UL UR | 200 kA | 20 kA | T | Electrical Industrial | 125 V | Fast Blow | Blade Terminal (Bolt) Cylindrical | Bolt Mount |
