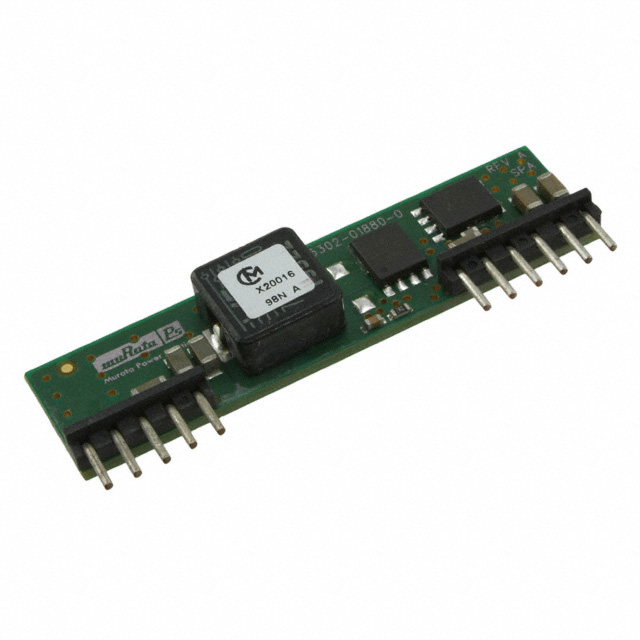

OKX2-T Series
Manufacturer: Murata Electronics
Beta
⌘K
NON ISOLATED POL DC/DC CONVERTER, 50 W, 750 MV, 5.5 V, 10 A, ADJUSTABLE, DOSA, SIP
| Part | Power (Watts) | Applications | Type | Voltage - Output 1 (Max) | Voltage - Output 1 (Min) | Features | Mounting Type | Efficiency | Voltage - Input (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Current - Output (Max) | Number of Outputs | Voltage - Input (Min) | Size / Dimension Height | Size / Dimension Length | Size / Dimension Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 50 W | ITE (Commercial) | Non-Isolated PoL Module | 5.5 V | 0.75 V | OCP OTP Remote On/Off SCP UVLO | Through Hole | 94.5 % | 14 V | -40 °C | 85 °C | 11-SIP Module | 10 A | 1 | 8.3 V | 0.5 in | 2 in | 0.37 in |
 Murata Electronics | 80 W | ITE (Commercial) | Non-Isolated PoL Module | 5.5 V | 0.75 V | OCP OTP Remote On/Off SCP UVLO | Through Hole | 94 % | 14 V | -40 °C | 85 °C | 11-SIP Module | 16 A | 1 | 8.3 V | 0.5 in | 2 in | 0.37 in |
 Murata Electronics | 53 W | ITE (Commercial) | Non-Isolated PoL Module | 3.63 V | 0.75 V | OCP OTP Remote On/Off SCP UVLO | Through Hole | 95 % | 5.5 V | -40 °C | 85 °C | 11-SIP Module | 16 A | 1 | 2.4 V | 0.5 in | 2 in | 0.37 in |
