AU-04PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

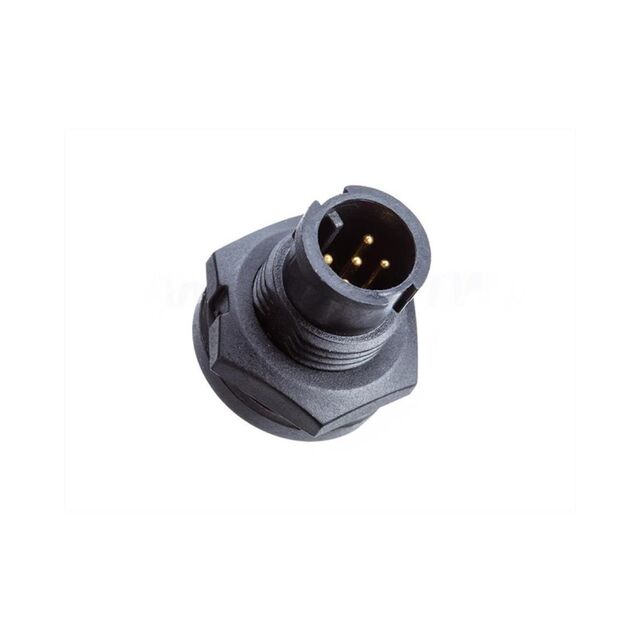

CERES, MINI SIZE, 2A, 04 PINS, R
| Part | Shell Size - Insert | Mounting Type | Color | Number of Positions | Ingress Protection Description | Ingress Protection IP Rating | Termination | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Mounting Feature | Contact Finish - Mating | Insert Material | Voltage Rating | Shielding | Fastening Type | Shell Material | Connector Type | Current Rating | Orientation | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | A | Panel Mount Through Hole | Black | 4 | Dust Tight Waterproof | IP67 | Solder | -40 °C | 105 °C | Copper Alloy | Flange | Gold | Glass Filled Nylon PA Polyamide | 250 V | Unshielded | Bayonet Lock | Glass Filled Nylon Polyamide (PA) | Male Pins Receptacle | 2 A | Keyed | Plastic |
 McGill Microwave Systems | A | Panel Mount Through Hole | Black | 4 | Dust Tight Waterproof | IP67 | Solder | -40 °C | 105 °C | Copper Alloy | Bulkhead Front Side Nut | Gold | Glass Filled Nylon PA Polyamide | 250 V | Unshielded | Bayonet Lock | Glass Filled Nylon Polyamide (PA) | Male Pins Receptacle | 2 A | Keyed | Plastic |
 McGill Microwave Systems | A | Panel Mount Through Hole | Black | 4 | Dust Tight Waterproof | IP67 | Solder | -40 °C | 105 °C | Copper Alloy | Bulkhead Front Side Nut | Gold | Glass Filled Nylon PA Polyamide | 250 V | Unshielded | Threaded | Glass Filled Nylon Polyamide (PA) | Male Pins Receptacle | 2 A | Keyed | Plastic |
