53125 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

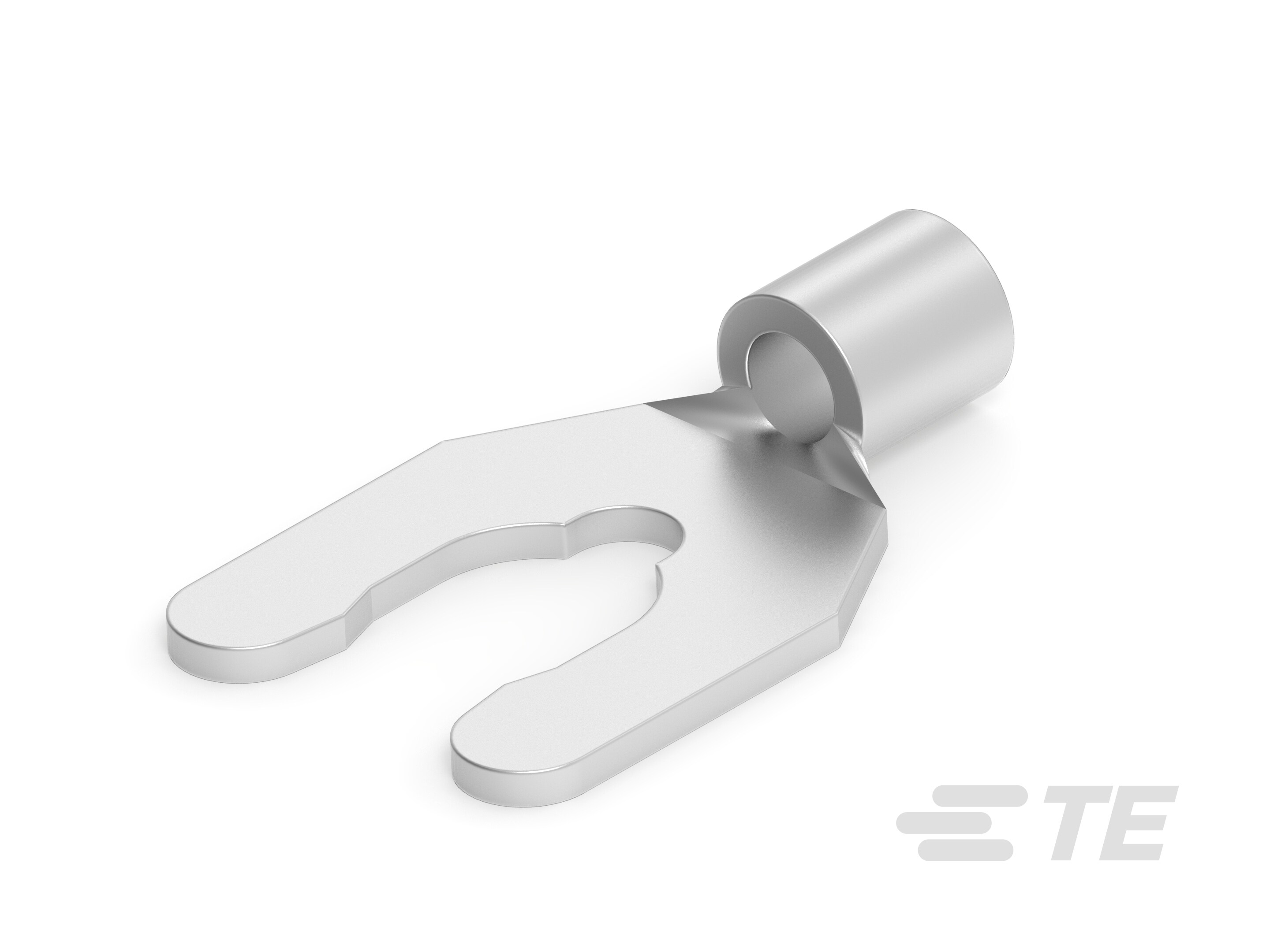

TERMINAL,SOLIS SPR SPD 16-14 ROHS COMPLIANT: YES
| Part | Features | Terminal Type | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Stud/Tab Size | Mounting Type | Contact Material | Width - Outer Edges | Termination | Length - Overall | Insulation | Contact Finish | Length - Termination | Length - Ring Center to Termination | Tongue Inside Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brazed Seam Serrated Termination | Snap Spring | 16 AWG | 14 AWG | 10 Stud | Free Hanging (In-Line) | Phosphor Bronze | 0.406 in | Crimp | 0.685 in | Non-Insulated | Tin | 0.181 in | 0.281 in | 0.19 in |
