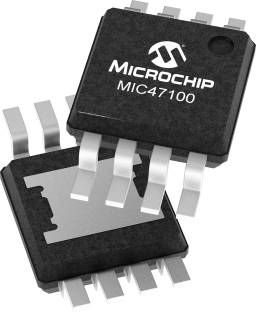

MIC47100 Series

Catalog

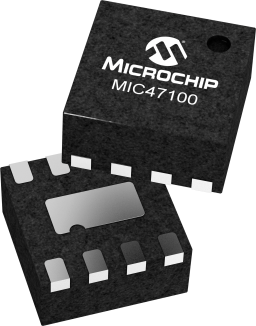

1A HIGH SPEED, LOW VIN LDO 8 VDFN 2X2X0.9MM T/R ROHS COMPLIANT: YES

Part	Package Length	Package Name	Package Width	Output Configuration	Package / Case	Number of Regulators	PSRR (Maximum)	PSRR (Minimum)	Voltage - Input (Max)	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Dropout (Max)	Output Type	Protection Features	Current - Output	Control Features	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Package Features	Voltage - Output (Max)
Microchip Technology MIC47100-0.8YML-TR	2 mm	8-MLF®	2 mm	Positive	8-MLF® 8-VFDFN Exposed Pad	1	80 dB	45 dB	3.6 V	Surface Mount	125 °C	-40 °C	0.25 V	Fixed	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 A	Enable	6 µA	0.8 V
Microchip Technology MIC47100-10YMME-TR	0.118 in	8-MSOP 8-MSOP-EP 8-TSSOP	3 mm	Positive		1	80 dB	45 dB	3.6 V	Surface Mount	125 °C	-40 °C	0.25 V	Fixed	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 A	Enable	6 µA	1 V	Exposed Pad
Microchip Technology MIC47100YML-TR	2 mm	8-MLF®	2 mm	Positive	8-MLF® 8-VFDFN Exposed Pad	1	80 dB	45 dB	3.6 V	Surface Mount	125 °C	-40 °C	0.25 V	Adjustable	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 A	Enable	6 µA	0.8 V		2 V
Microchip Technology MIC47100-12YMME	0.118 in	8-MSOP 8-MSOP-EP 8-TSSOP	3 mm	Positive		1	80 dB	45 dB	3.6 V	Surface Mount	125 °C	-40 °C	0.25 V	Fixed	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 A	Enable	6 µA	1.2 V	Exposed Pad
Microchip Technology MIC47100-1.0YML-TR	2 mm	8-MLF®	2 mm	Positive	8-MLF® 8-VFDFN Exposed Pad	1	80 dB	45 dB	3.6 V	Surface Mount	125 °C	-40 °C	0.25 V	Fixed	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 A	Enable	6 µA	1 V
Microchip Technology MIC47100-08YMME	0.118 in	8-MSOP 8-MSOP-EP 8-TSSOP 8-TSSOP 8-MSOP	3 mm	Positive		1	80 dB	45 dB	3.6 V	Surface Mount	125 °C	-40 °C	0.25 V	Fixed	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 A	Enable	6 µA	0.8 V	Exposed Pad
Microchip Technology MIC47100-1.2YML-TR	2 mm	8-MLF®	2 mm	Positive	8-MLF® 8-VFDFN Exposed Pad	1	80 dB	45 dB	3.6 V	Surface Mount	125 °C	-40 °C	0.25 V	Fixed	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 A	Enable	6 µA	1.2 V
Microchip Technology MIC47100-08YMME-TR	0.118 in	8-MSOP 8-MSOP-EP 8-TSSOP	3 mm	Positive		1	80 dB	45 dB	3.6 V	Surface Mount	125 °C	-40 °C	0.25 V	Fixed	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 A	Enable	6 µA	0.8 V	Exposed Pad
Microchip Technology MIC47100-10YMME	0.118 in	8-MSOP 8-MSOP-EP 8-TSSOP 8-TSSOP 8-MSOP	3 mm	Positive		1	80 dB	45 dB	3.6 V	Surface Mount	125 °C	-40 °C	0.25 V	Fixed	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 A	Enable	6 µA	1 V	Exposed Pad
Microchip Technology MIC47100-12YMME-TR	0.118 in	8-MSOP 8-MSOP-EP 8-TSSOP	3 mm	Positive		1	80 dB	45 dB	3.6 V	Surface Mount	125 °C	-40 °C	0.25 V	Fixed	Over Current Over Temperature Under Voltage Lockout (UVLO)	1 A	Enable	6 µA	1.2 V	Exposed Pad
