MS27499E12B Series

Catalog

CONN RCPT MALE 3POS GOLD CRIMP

Part	Fastening Type	Shell Finish	Mounting Feature	Orientation	Number of Positions	Shielding	Color	Contact Finish - Mating	Primary Material	Termination	Shell Size - Insert Length	Shell Size - Insert Width	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Connector Type	Ingress Protection	Contact Material	Shell Material	Applications	Mounting Type	Qualification	Insert Material	Current Rating	Grade	Shell Size (MIL)

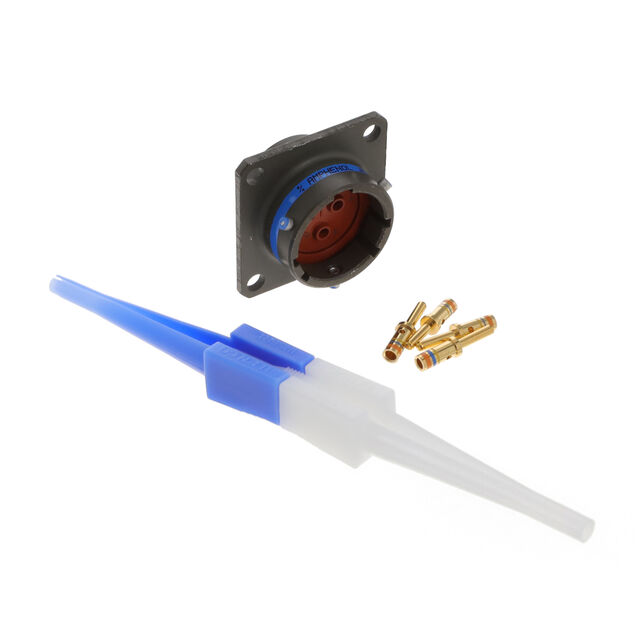

Amphenol Aerospace Operations MS27499E12B3P	Bayonet Lock	Nickel Olive Drab Cadmium	Flange	N (Normal)	3	Unshielded	Olive Drab	Gold	Metal	Crimp	12 mm	3 mm	200 °C	-65 °C	50 µin	Male Pins Receptacle	Environment Resistant	Copper Alloy	Aluminum	Aviation Military	Panel Mount
Amphenol Aerospace Operations MS27499E12B3P	Bayonet Lock	Olive Drab Cadmium	Flange	N (Normal)	3	Shielded	Olive Drab	Gold	Metal	Crimp	12 mm	3 mm	175 °C	-65 °C		Male Pins Receptacle	Environment Resistant	Copper Alloy	Aluminum Alloy	Aviation Communication Systems Marine Medical Military	Panel Mount	MIL-DTL-38999 Series II	Thermoplastic	13 A	Military	C
