5745076 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

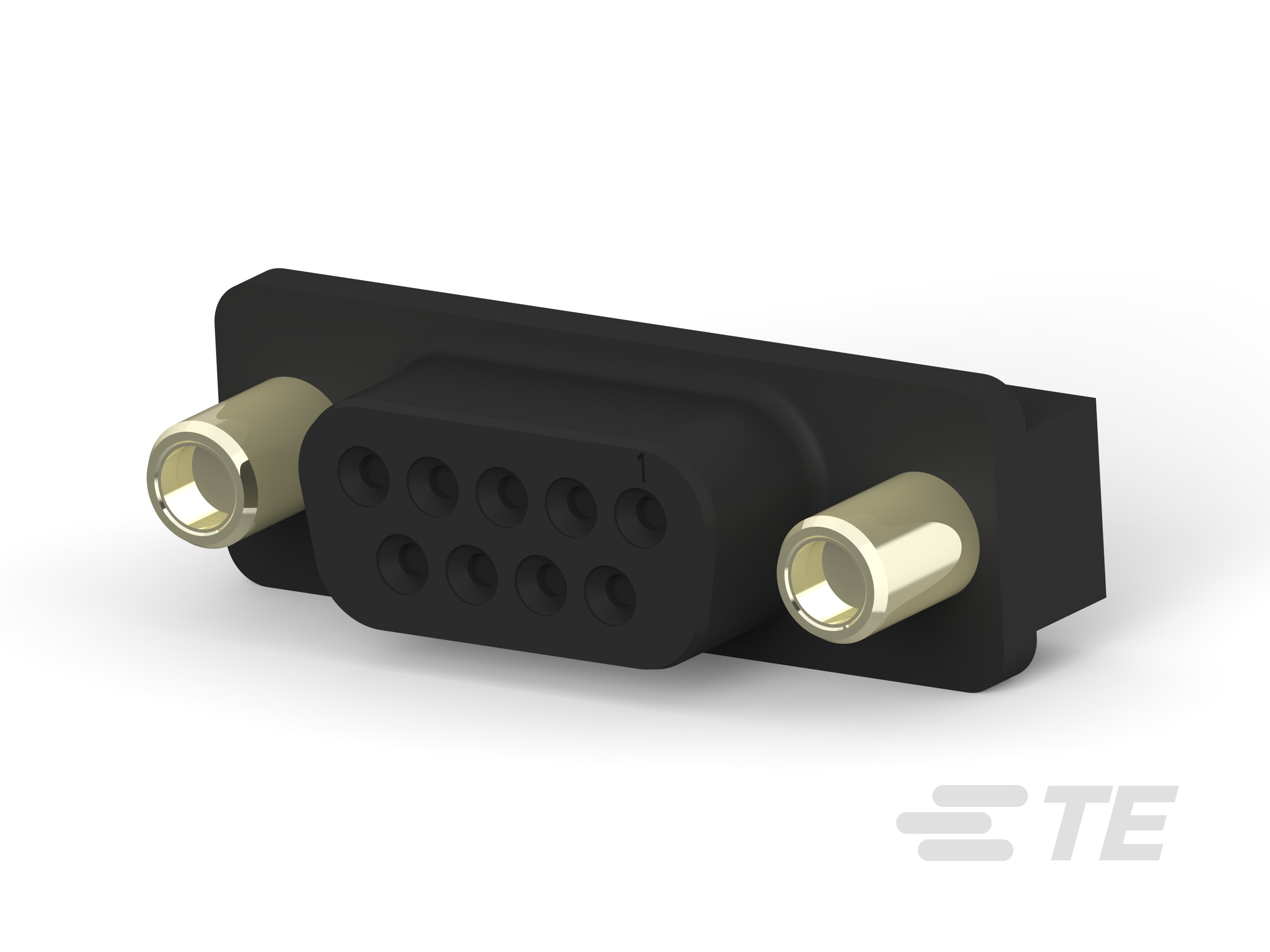

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Number of Rows | Material Flammability Rating | Current Rating | Contact Type | Contact Finish | Flange Feature | Termination | Contact Finish Thickness | Mounting Type | Connector Style | Connector Type | Shell Size | Connector Layout | Number of Positions | Color | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Voltage Rating | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 | UL94 V-0 | 6 A | Signal | Gold | Female Screwlock (4-40) Mating Side | Solder | 30 µin | Through Hole | D-Sub | Female Sockets Receptacle | 1 | DE E | 9 | Black | Phosphor Bronze | -55 °C | 105 °C | Polyester | 125 V | ||
 TE Connectivity AMP Connectors | 2 | UL94 V-0 | 6 A | Signal | Gold | Female Screwlock (4-40) Mating Side | Solder | 0 | Through Hole | D-Sub | Female Sockets Receptacle | 1 | DE E | 9 | Black | Phosphor Bronze | -55 °C | 105 °C | Polyester | 125 V | Flash | Flash |
