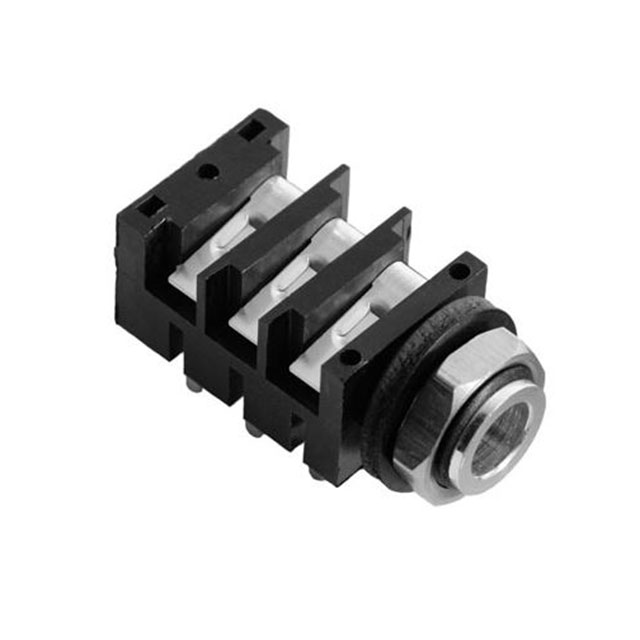

ACJS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
1/4" PHONE STEREO VERTICAL SCHEM
| Part | Gender | Features | Internal Switch(s) | Number of Contacts | Number of Conductors | Operating Temperature (Max) | Operating Temperature (Min) | Connector Type | Termination | Mounting Type | Industry Recognized Mating Diameter (Headphone) | Shielding | Signal Lines | Current Rating | Body Color | Panel Hole Size | Contact Material | Contact Material - Plating | Voltage - Rated | Housing Material | Internal Switch Count | Industry Recognized Mating Diameter (Headphone - Mini Plug) | Industry Recognized Mating Diameter (Headphone Options) | Includes Total Count | Includes | Thread Pitch | Thread Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Female | Mounting Hardware Thread Lock | Does Not Contain Switch | 3 Contacts | 3 Conductors | 70 °C | -25 °C | Phone Jack | Press-Fit Solder | Panel Mount Through Hole | 6.35 mm | Unshielded | 3 Conductor Stereo TRS | 10 A | Black Silver | 0.374 in | Brass | Tin | 34 VAC/DC | Glass Filled Nylon 6/6 PA66 Polyamide | |||||||
 McGill Microwave Systems | Female | 6 Contacts | 3 Conductors | 70 °C | -25 °C | Phone Jack | Kinked Pin | Right Angle Through Hole | 6.35 mm | 3 Conductor Stereo TRS | Black | 0.449 in | Copper | Glass Filled Nylon 6/6 PA66 Polyamide | 3 count | ||||||||||||
 McGill Microwave Systems | Female | Single Switch | 4 Contacts | 3 Conductors | 70 °C | -25 °C | Phone Jack | Solder Eyelet(s) | Panel Mount | Unshielded | 3 Conductor Stereo TRS | Black Silver | 0.236 in | Copper | Glass Filled Nylon 6/6 PA66 Polyamide | 3.5 mm | Mini Plug | 3 pcs | Connector Nut Washer | 0.5 mm | 6 mm | ||||||
 McGill Microwave Systems | Female | Mounting Hardware | 6 Contacts | 3 Conductors | 70 °C | -25 °C | Phone Jack | Press-Fit Solder | Panel Mount Right Angle Through Hole | 6.35 mm | Unshielded | 3 Conductor Stereo TRS | Black Silver | 0.394 in | Copper Alloy | Glass Filled Nylon 6/6 PA66 Polyamide | 2 count | 3 pcs | Connector Nut Washer |
