745497 Series

Catalog

CONN D-SUB RCPT 37POS IDC

Part	Termination	Number of Positions	Contact Type	Mounting Type	Finish	Shell Material	Connector Type	Shell Size	Connector Layout	Number of Rows	Connector Style	Current Rating	Flange Feature	Contact Finish Thickness	Contact Finish	Material Flammability Rating	Color	Voltage Rating	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Material
TE Connectivity AMP Connectors 745497-2	Discrete Wire IDC	37 pos	Signal	Free Hanging (In-Line)	Tin Plated	Steel	Female Sockets Receptacle	4	C DC	2	D-Sub	Varies by Wire Gauge	Housing Shell (Unthreaded)	30 µin	Gold	UL94 V-0	Black	250 V	26 AWG	22 AWG	-55 °C	105 °C	Glass Filled Thermoplastic	Phosphor Bronze
TE Connectivity AMP Connectors 745497-1	Discrete Wire IDC	37 pos	Signal	Free Hanging (In-Line)	Tin Plated	Steel	Female Sockets Receptacle	4	C DC	2	D-Sub	Varies by Wire Gauge	Housing Shell (Unthreaded)	30 µin	Gold	UL94 V-0	Black	250 V	30 AWG	26 AWG	-55 °C	105 °C	Glass Filled Thermoplastic	Phosphor Bronze

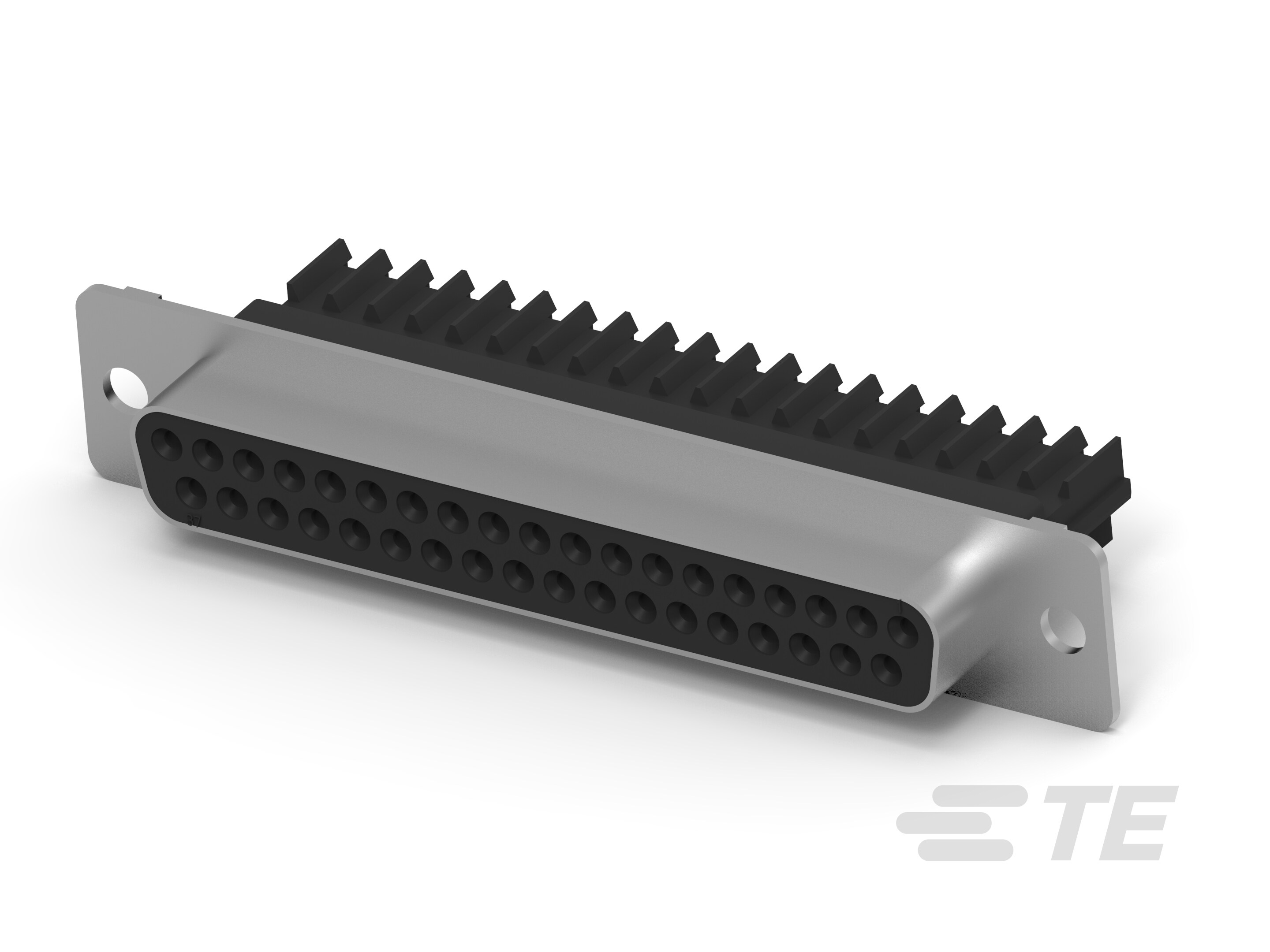

TE Connectivity AMP Connectors 1-745497-5	Discrete Wire IDC	37 pos	Signal	Free Hanging (In-Line)	Tin Plated	Steel	Female Sockets Receptacle	4	C DC	2	D-Sub	Varies by Wire Gauge	Housing Shell (Unthreaded)	30 µin	Gold	UL94 V-0	Black	250 V	26 AWG	22 AWG	-55 °C	105 °C	Glass Filled Thermoplastic	Phosphor Bronze
