644751 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER R/A 16POS 3.96MM

Part	Number of Positions	Contact Finish - Post	Mounting Type	Shrouding	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Style	Material Flammability Rating	Connector Type	Insulation Height	Pitch - Mating	Voltage Rating	Contact Type	Contact Shape	Contact Length - Mating	Insulation Material	Number of Rows	Number of Positions Loaded	Insulation Color	Contact Length - Post	Contact Finish - Mating	Current Rating	Contact Material	Applications
TE Connectivity AMP Connectors 1-644751-6	16	Tin	Right Angle Through Hole	Unshrouded	Solder	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Header	0.125 in	0.156 in	600 V	Male Pin	Square	0.39 in	Glass Filled Thermoplastic	1	All	Natural	0.175 in	Tin	Varies by Wire Gauge	Copper Alloy	General Purpose Industrial
TE Connectivity AMP Connectors 644751-2	2	Tin	Right Angle Through Hole	Unshrouded	Solder	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Header	0.125 in	0.156 in	600 V	Male Pin	Square	0.39 in	Glass Filled Thermoplastic	1	All	Natural	0.175 in	Tin	Varies by Wire Gauge	Copper Alloy	General Purpose Industrial
TE Connectivity AMP Connectors 644751-8	8	Tin	Right Angle Through Hole	Unshrouded	Solder	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Header	0.125 in	0.156 in	600 V	Male Pin	Square	0.39 in	Glass Filled Thermoplastic	1	All	Natural	0.175 in	Tin	Varies by Wire Gauge	Copper Alloy	General Purpose Industrial
TE Connectivity AMP Connectors 1-644751-1	11	Tin	Right Angle Through Hole	Unshrouded	Solder	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Header	0.125 in	0.156 in	600 V	Male Pin	Square	0.39 in	Glass Filled Thermoplastic	1	All	Natural	0.175 in	Tin	Varies by Wire Gauge	Copper Alloy	General Purpose Industrial

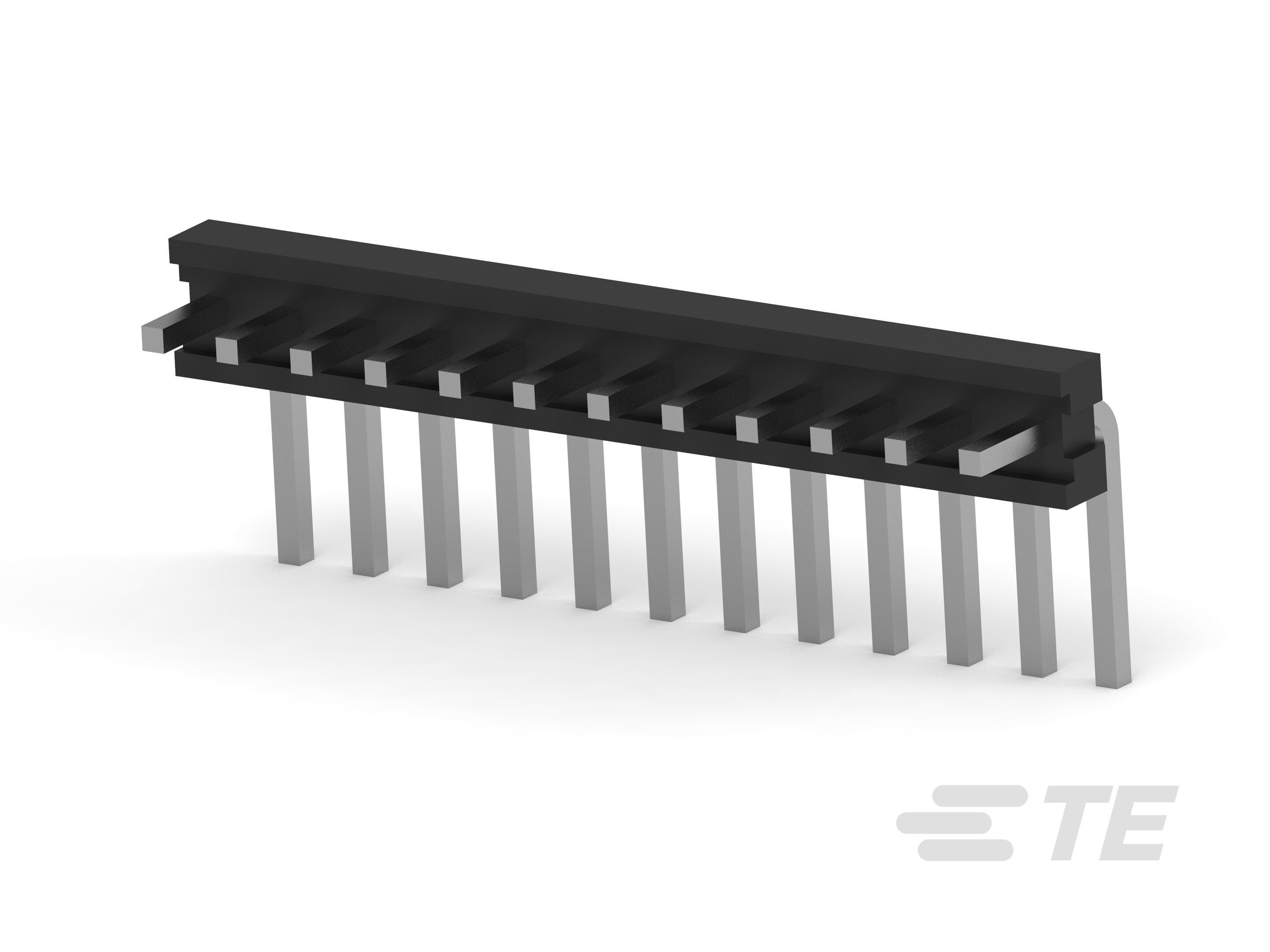

TE Connectivity AMP Connectors 1-644751-2	12	Tin	Right Angle Through Hole	Unshrouded	Solder	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Header	0.125 in	0.156 in	600 V	Male Pin	Square	0.39 in	Glass Filled Thermoplastic	1	All	Natural	0.175 in	Tin	Varies by Wire Gauge	Copper Alloy	General Purpose Industrial

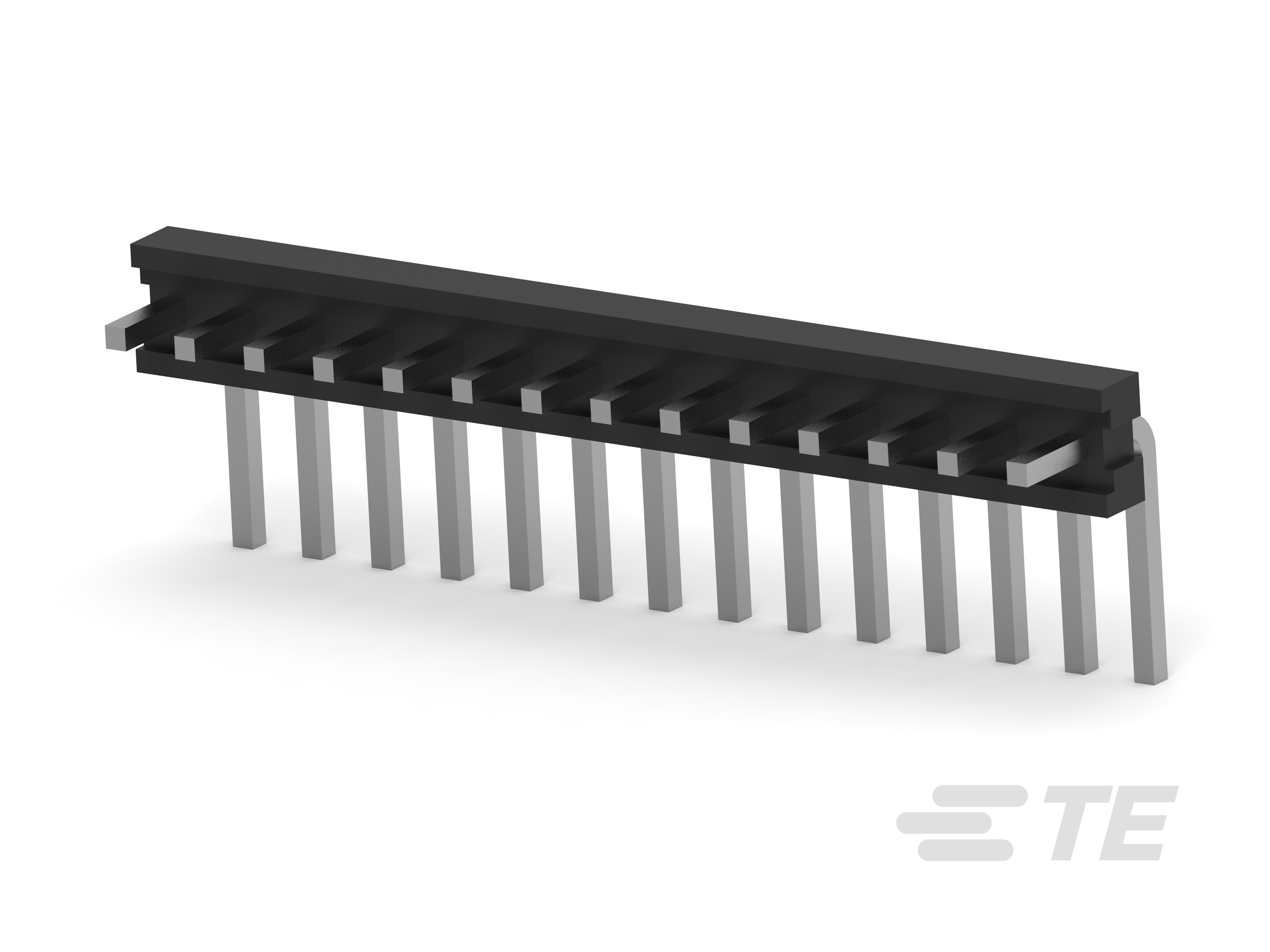

TE Connectivity AMP Connectors 1-644751-4	14	Tin	Right Angle Through Hole	Unshrouded	Solder	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Header	0.125 in	0.156 in	600 V	Male Pin	Square	0.39 in	Glass Filled Thermoplastic	1	All	Natural	0.175 in	Tin	Varies by Wire Gauge	Copper Alloy	General Purpose Industrial
TE Connectivity AMP Connectors 1-644751-3	13	Tin	Right Angle Through Hole	Unshrouded	Solder	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Header	0.125 in	0.156 in	600 V	Male Pin	Square	0.39 in	Glass Filled Thermoplastic	1	All	Natural	0.175 in	Tin	Varies by Wire Gauge	Copper Alloy	General Purpose Industrial

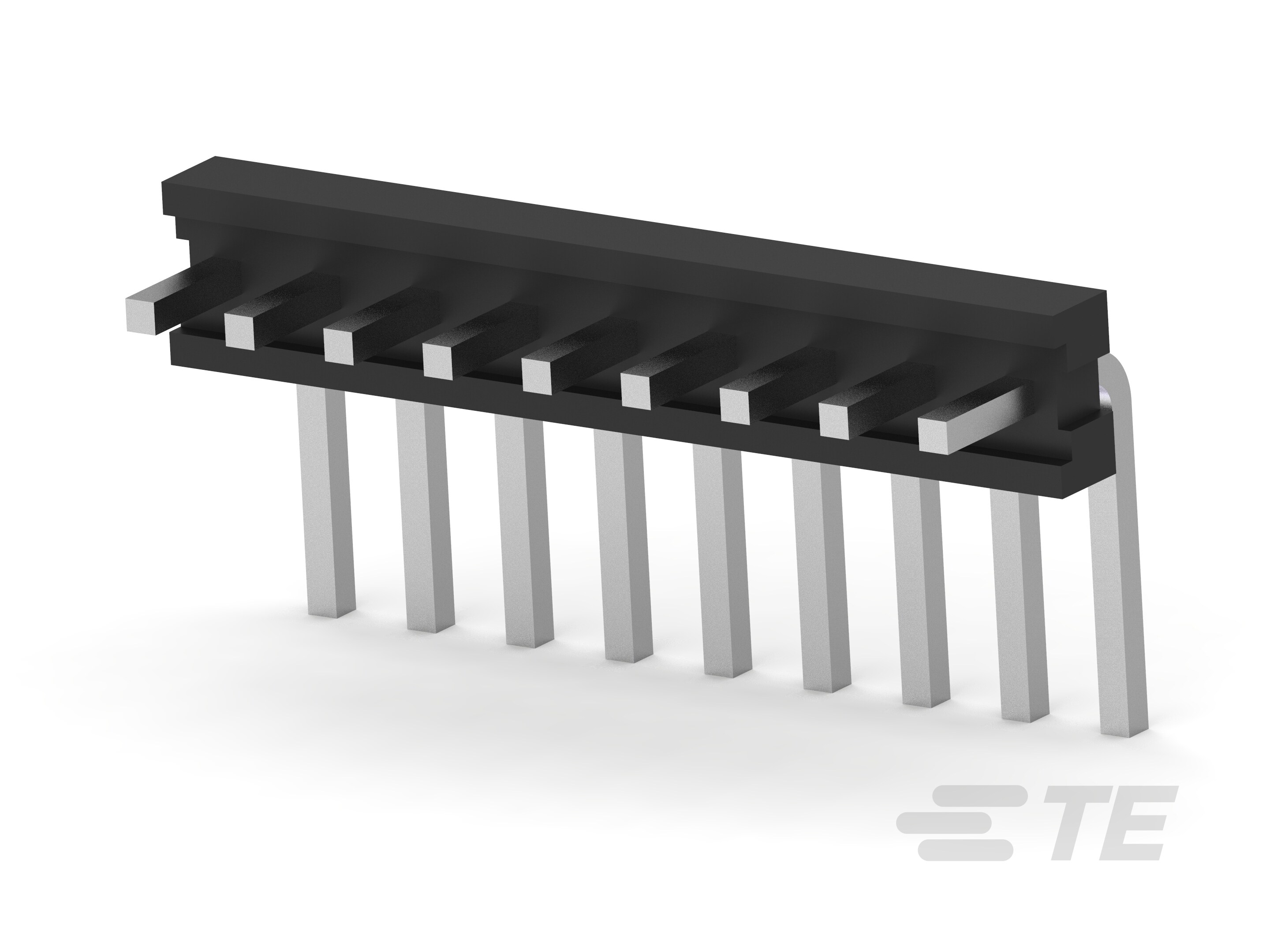

TE Connectivity AMP Connectors 644751-9	9	Tin	Right Angle Through Hole	Unshrouded	Solder	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Header	0.125 in	0.156 in	600 V	Male Pin	Square	0.39 in	Glass Filled Thermoplastic	1	All	Natural	0.175 in	Tin	Varies by Wire Gauge	Copper Alloy	General Purpose Industrial
TE Connectivity AMP Connectors 1-644751-5	15	Tin	Right Angle Through Hole	Unshrouded	Solder	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Header	0.125 in	0.156 in	600 V	Male Pin	Square	0.39 in	Glass Filled Thermoplastic	1	All	Natural	0.175 in	Tin	Varies by Wire Gauge	Copper Alloy	General Purpose Industrial
TE Connectivity AMP Connectors 644751-4	4	Tin	Right Angle Through Hole	Unshrouded	Solder	-55 °C	105 °C	Board Cable/Wire	UL94 V-0	Header	0.125 in	0.156 in	600 V	Male Pin	Square	0.39 in	Glass Filled Thermoplastic	1	All	Natural	0.175 in	Tin	Varies by Wire Gauge	Copper Alloy	General Purpose Industrial
