Kmt00 Series Series
Manufacturer: LITTELFUSE
Beta
⌘K

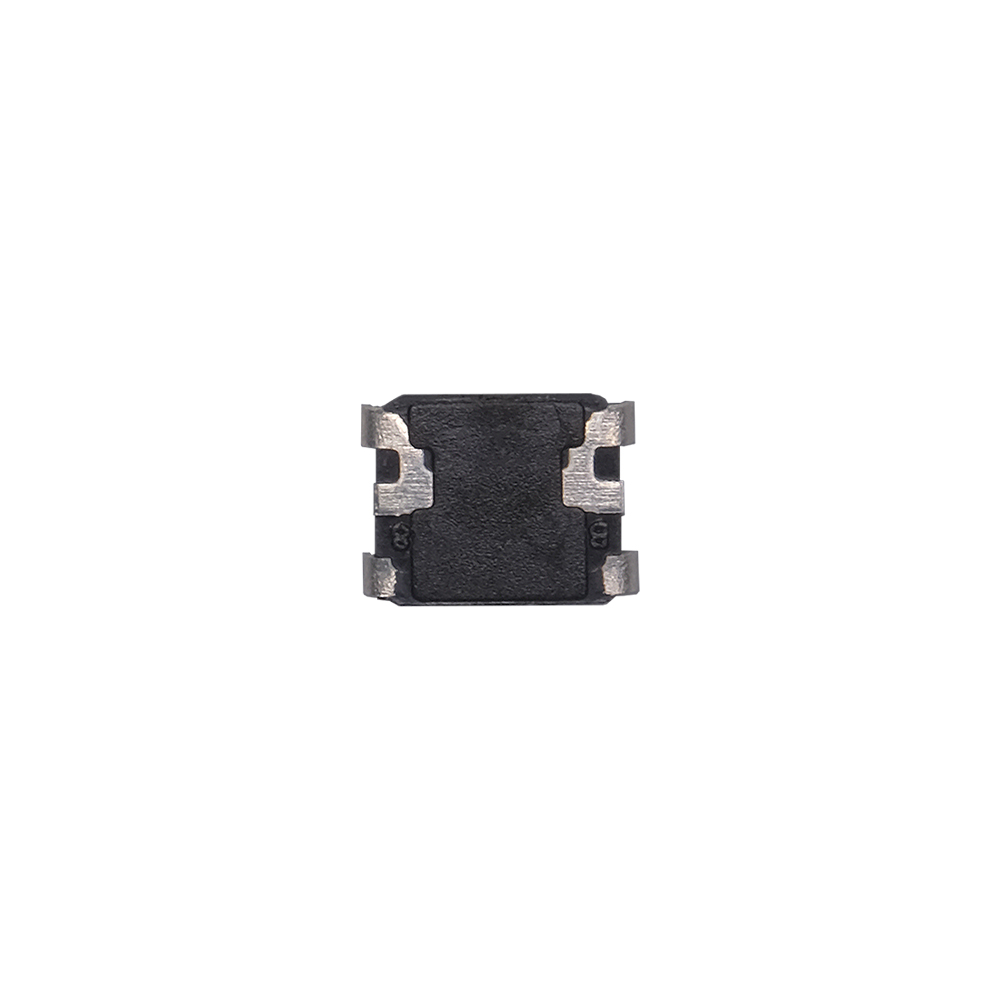

NANO-MINIATURE SMT TOP ACTUATED
| Part | Termination Style | Actuator Type | Outline Length | Outline Width | Actuator Height off PCB (Vertical) | Switch Function | Ingress Protection IP Rating | Ingress Protection Description | Mounting Type | Circuit | Contact Rating (Current) | Operating Temperature (Min) | Operating Temperature (Max) | Actuator Orientation | Illumination | Operating Force | Mechanical Life (Cycles) | Switch Travel | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | J Lead | Standard | 3 mm | 2.6 mm | 0.65 mm | Off-Mom | IP68 | Dust Tight Waterproof | Surface Mount | SPST-NO | 0.05 A | -40 °C | 85 °C | Top Actuated | Non-Illuminated | 230 gf | |||
 LITTELFUSE | J Lead | Standard | 3 mm | 2.6 mm | 0.65 mm | Off-Mom | IP68 | Dust Tight Waterproof | Surface Mount | SPST-NO | 0.05 A | -40 °C | 85 °C | Top Actuated | Non-Illuminated | 340 gf | 300000 Cycles | 0.15 mm | |
 LITTELFUSE | J Lead | Standard | 3 mm | 2.6 mm | 0.65 mm | Off-Mom | IP68 | Dust Tight Waterproof | Surface Mount | SPST-NO | 0.05 A | -40 °C | 85 °C | Top Actuated | Non-Illuminated | 0.1 kgf | 1000000 Cycles | 0.15 mm | Tactile Feedback |
