747840 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

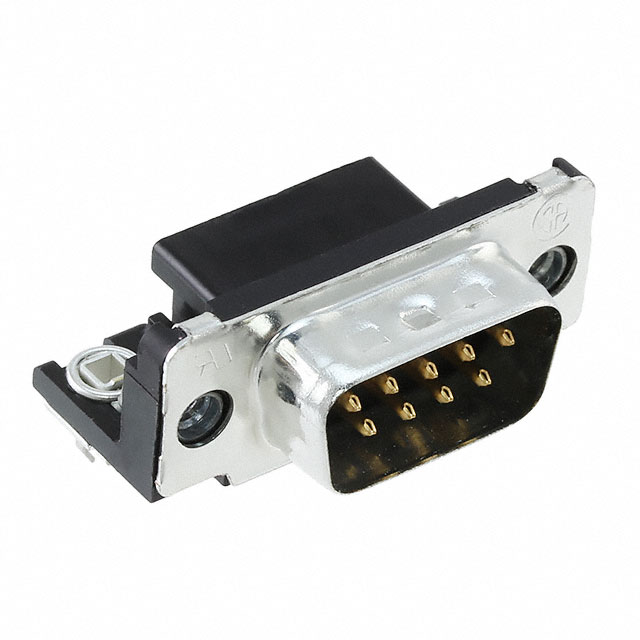

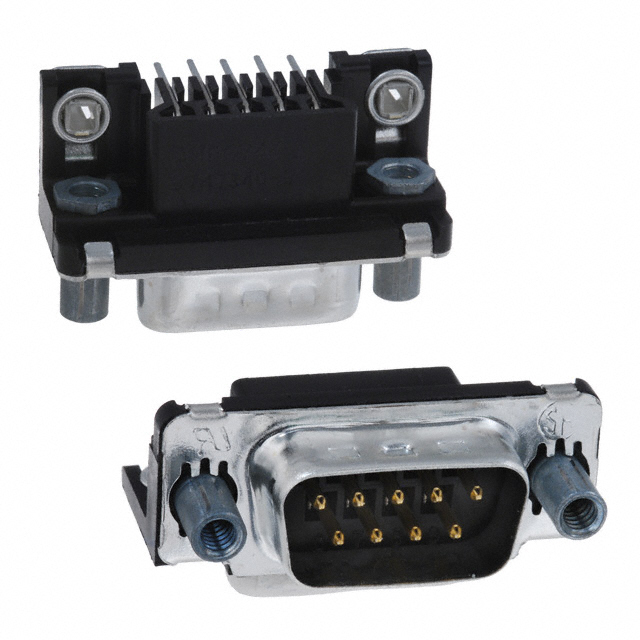

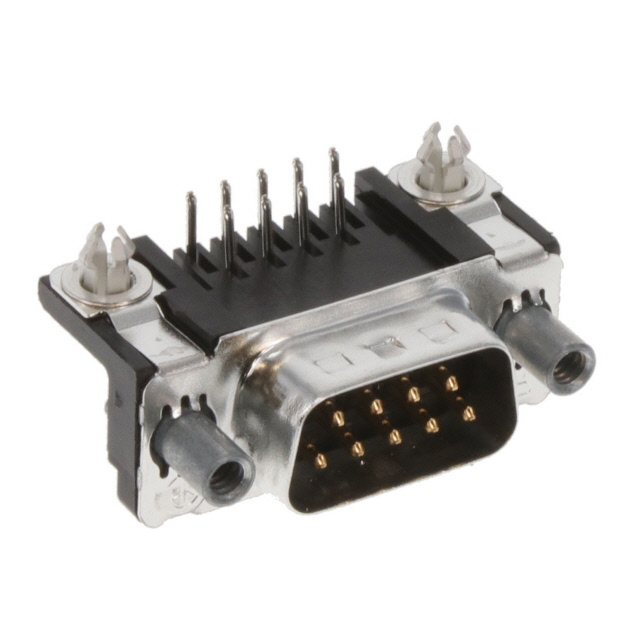

CONN D-SUB PLUG 9POS R/A SLDR
| Part | Material Flammability Rating | Color | Features | Contact Type | Number of Rows | Current Rating (Amps) | Contact Material | Voltage Rating | Contact Finish | Flange Feature | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Termination | Connector Type | Connector Style | Backset Spacing | Backset Spacing | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Black | Board Lock Ground Strap Grounding Indents | Signal | 2 | 6 A | Brass | 125 VDC | Gold | Female Screwlock (4-40) Mating Side | 9 | 105 ░C | -55 °C | DE E | 1 | Through Hole Right Angle | Solder | Male Pins Plug | D-Sub | 8.08 mm | 0.318 " | |
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Black | Board Lock Ground Strap Grounding Indents | Signal | 2 | 6 A | Brass | 125 VDC | Gold | Female Screwlock (4-40) Mating Side | 9 | 105 ░C | -55 °C | DE E | 1 | Through Hole Right Angle | Solder | Male Pins Plug | D-Sub | 8.08 mm | 0.318 " | Flash |
TE Connectivity Raychem Cable Protection | UL94 V-0 | Black | Board Lock Ground Strap Grounding Indents | Signal | 2 | 6 A | Brass | 125 VDC | Gold | Housing/Shell (Unthreaded) | 9 | 105 ░C | -55 °C | DE E | 1 | Through Hole Right Angle | Solder | Male Pins Plug | D-Sub | 8.08 mm | 0.318 " | |
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Black | Board Lock Ground Strap Grounding Indents | Signal | 2 | 6 A | Brass | 125 VDC | Gold | Housing/Shell (4-40) | 9 | 105 ░C | -55 °C | DE E | 1 | Through Hole Right Angle | Solder | Male Pins Plug | D-Sub | 8.08 mm | 0.318 " | |
TE Connectivity Raychem Cable Protection | UL94 V-0 | Black | Board Lock Ground Strap Grounding Indents | Signal | 2 | 6 A | Brass | 125 VDC | Gold | Female Screwlock (4-40) Mating Side | 9 | 105 ░C | -55 °C | DE E | 1 | Through Hole Right Angle | Solder | Male Pins Plug | D-Sub | 8.08 mm | 0.318 " | Flash |
TE Connectivity Raychem Cable Protection | UL94 V-0 | Black | Board Lock Ground Strap Grounding Indents | Signal | 2 | 6 A | Brass | 125 VDC | Gold | Female Screwlock (4-40) Mating Side | 9 | 105 ░C | -55 °C | DE E | 1 | Through Hole Right Angle | Solder | Male Pins Plug | D-Sub | 8.08 mm | 0.318 " |
