5536507 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

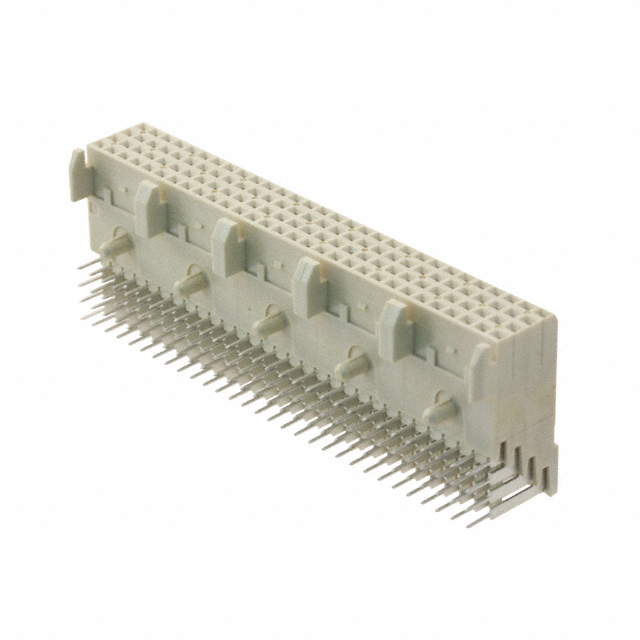

CONN BACKPLANE RCP 72 POS 2MM SOLDER RA THRU-HOLE TUBE
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating | Material Flammability Rating | Number of Rows | Termination | Connector Type | Mounting Type | Features | Pitch | Color | Number of Positions Loaded | Contact Finish | Connector Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 °C | -55 °C | 30 V | UL94 V-0 | 4 | Solder | Female Sockets Receptacle | Board Edge Right Angle Through Hole | Board Guide Spacer | 0.079 in | Natural | All | Gold | Futurebus | 72 |
TE Connectivity AMP Connectors | 125 °C | -55 °C | 30 V | UL94 V-0 | 4 | Solder | Female Sockets Receptacle | Board Edge Right Angle Through Hole | Board Guide Spacer | 0.079 in | Natural | All | Gold | Futurebus | 144 |
 TE Connectivity AMP Connectors | 125 °C | -55 °C | 30 V | UL94 V-0 | 4 | Solder | Female Sockets Receptacle | Board Edge Right Angle Through Hole | Board Guide Spacer | 0.079 in | Natural | All | Gold | Futurebus | 120 |
