TC72 Series

Catalog

DIGITAL TEMPERATURE SENSOR WITH SPI INTERFACE

Part	Sensor Type	Features	Sensing Temperature - Local (Min)	Sensing Temperature - Local (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Resolution	Package Width	Package Name	Package Length	Test Condition (Primary) Minimum	Test Condition (Primary) Maximum	Test Condition (Alternate) Maximum	Test Condition (Alternate) Minimum	Mounting Type	Output Type	Accuracy - Lowest	Accuracy - Highest	Supplied Contents	Interface	Contents	Utilized IC / Part	Embedded	Sensing Range (Max)	Sensing Range (Min)	Sensitivity Tolerance
Microchip Technology TC72-3.3MMFTR	Digital Local	One-Shot Shutdown Mode	-55 °C	125 °C	125 °C	-55 °C	8-VDFN Exposed Pad	5.5 V	2.65 V	9 b	3 mm	8-DFN	3 mm	-40 °C	85 °C	125 ¯C	-55 °C	Surface Mount	SPI	3 °C	2 °C
Microchip Technology TC72-3.3MUATR	Digital Local	One-Shot Shutdown Mode	-55 °C	125 °C	125 °C	-55 °C		5.5 V	2.65 V	9 b	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	-40 °C	85 °C	125 ¯C	-55 °C	Surface Mount	SPI	3 °C	2 °C
Microchip Technology TC72-5.0MUATR	Digital Local	One-Shot Shutdown Mode	-55 °C	125 °C	125 °C	-55 °C		5.5 V	2.65 V	9 b	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	-40 °C	85 °C	125 ¯C	-55 °C	Surface Mount	SPI	3 °C	2 °C
Microchip Technology TC72-2.8MMFTR	Digital Local	One-Shot Shutdown Mode	-55 °C	125 °C	125 °C	-55 °C	8-VDFN Exposed Pad	5.5 V	2.65 V	9 b	3 mm	8-DFN	3 mm	-40 °C	85 °C	125 ¯C	-55 °C	Surface Mount	SPI	3 °C	2 °C
Microchip Technology TC72-3.3MUA	Digital Local	One-Shot Shutdown Mode	-55 °C	125 °C	125 °C	-55 °C		5.5 V	2.65 V	9 b	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	-40 °C	85 °C	125 ¯C	-55 °C	Surface Mount	SPI	3 °C	2 °C
Microchip Technology TC72-2.8MUATR	Digital Local	One-Shot Shutdown Mode	-55 °C	125 °C	125 °C	-55 °C		5.5 V	2.65 V	9 b	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	-40 °C	85 °C	125 ¯C	-55 °C	Surface Mount	SPI	3 °C	2 °C
Microchip Technology TC72-5.0MMFTR	Digital Local	One-Shot Shutdown Mode	-55 °C	125 °C	125 °C	-55 °C	8-VDFN Exposed Pad	5.5 V	2.65 V	9 b	3 mm	8-DFN	3 mm	-40 °C	85 °C	125 ¯C	-55 °C	Surface Mount	SPI	3 °C	2 °C
Microchip Technology TC72-2.8MUA	Digital Local	One-Shot Shutdown Mode	-55 °C	125 °C	125 °C	-55 °C		5.5 V	2.65 V	9 b	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	-40 °C	85 °C	125 ¯C	-55 °C	Surface Mount	SPI	3 °C	2 °C

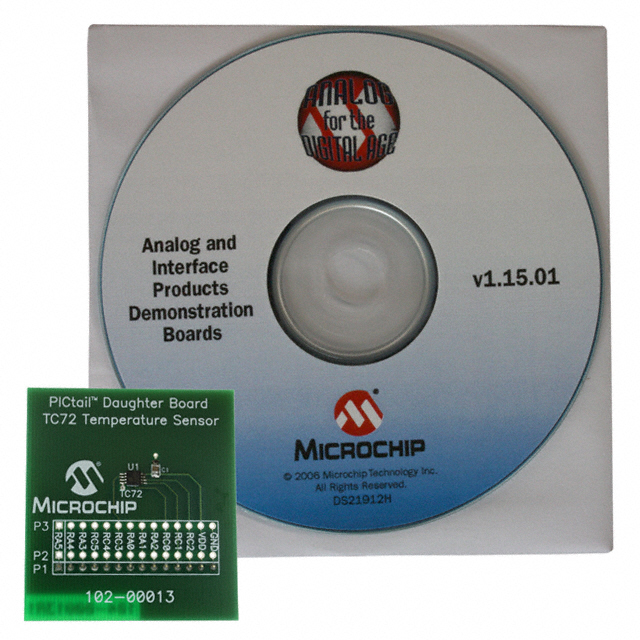

Microchip Technology TC72DM-PICTL	Temperature							5.5 V	2.65 V													Board(s)	SPI	Board	TC72	No	125 °C	-55 °C	2 °C
Microchip Technology TC72-5.0MUA	Digital Local	One-Shot Shutdown Mode	-55 °C	125 °C	125 °C	-55 °C		5.5 V	2.65 V	9 b	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	-40 °C	85 °C	125 ¯C	-55 °C	Surface Mount	SPI	3 °C	2 °C
