150274 Series

Catalog

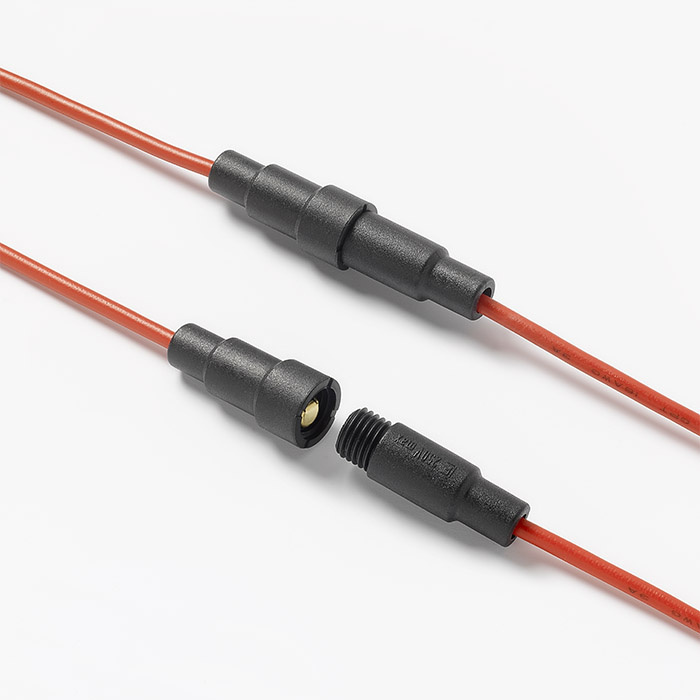

FUSEHOLDER, CARTRIDGE IN LINE, 1 FUSE, 10 A, 350 V, 5MM X 20MM, 2AG, CRIMP, UNASSEMBLED

Part	Current Rating	Voltage	Contact Material	Number of Circuits	Termination Style	Fuseholder Type	Fuse Type	For Use With/Related Products	Fuse Diameter	Fuse Length (Min)	Fuse Length (Max)	Mounting Type
LITTELFUSE 01500274ZXU	10 A	350 V	Brass	1	Crimp	Holder	Cartridge	2AG 5mm x 15mm 5mm x 20mm	0.197 in	0.591 in	0.787 in	Free Hanging (In-Line)
LITTELFUSE 01500274Z	10 A	350 V	Brass	1	Wire Leads	Holder	Cartridge	2AG 5mm x 15mm 5mm x 20mm	0.197 in	0.591 in	0.787 in	Free Hanging (In-Line)

Catalog

Description

This fuseholder, part number 150274, is intended for use with 2AG and 5 × 20mm fuses. Maximum current ratings are 5 amperes at 350V for the 2AG size fuses and 10 amperes at 350V for the 5 × 20mm size fuses.** ** If use above 32V, power must be turn off when changing the fuse.
