2385345 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

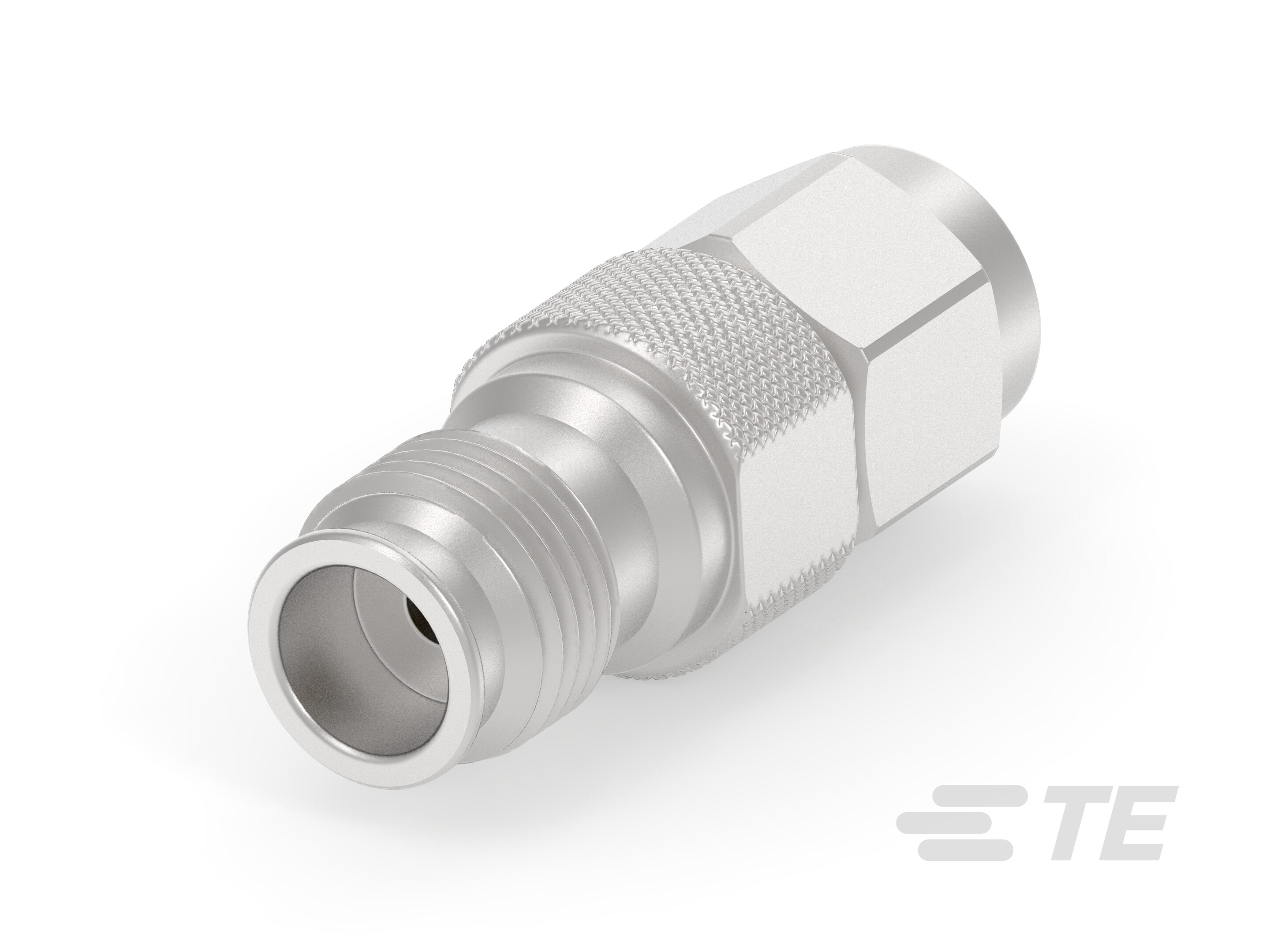

1.35MM FEMALE TO 1.0MM MALE ADAPTOR
| Part | Mating Cycles | Center Contact Material | Dielectric Material | Body Material | Operating Temperature (Max) | Operating Temperature (Min) | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Conversion Type | Adapter Type | Fastening Type | Mounting Type | Frequency - Max | Adapter Series Size | Style | Center Contact Plating | Convert From (Adapter End) Type | Convert From (Adapter End) Plug Size | Center Gender | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 cycles | Beryllium Copper | Polyetheretherketone (PEEK) | Stainless Steel | 125 °C | -55 °C | 1.35mm Jack | Female Socket | Between Series | Plug to Jack | Threaded | Free Hanging (In-Line) | 90 GHz | 1 mm 1.35 mm | Straight | Gold | Male Pin | 1 mm | Female Male | 50 Ohm |
