284512 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK HDR 24POS 90DEG 3.5MM

Part	Contact Material	Housing Material	Contact Tail Length	Insulation Height	Material Flammability Rating	Termination Style	Number of Levels	Mounting Type	Number of Positions	Type	Color	Contact Mating Finish	Current - UL	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - UL	Positions Per Level	Header Orientation Angle	Header Orientation
TE Connectivity AMP Connectors 2-284512-4	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.134 in	0.287 in	UL94 V-0	Solder	1	Through Hole	24 pos	Header Male Pins Shrouded (4 Side)	Green	Tin	11 A	0.138 in	-40 °C	110 °C	300 V	24	90 °	Right Angle
TE Connectivity AMP Connectors 1-284512-3	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.134 in	0.287 in	UL94 V-0	Solder	1	Through Hole	13	Header Male Pins Shrouded (4 Side)	Green	Tin	11 A	0.138 in	-40 °C	110 °C	300 V	13	90 °	Right Angle
TE Connectivity AMP Connectors 1-284512-4	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.134 in	0.287 in	UL94 V-0	Solder	1	Through Hole	14	Header Male Pins Shrouded (4 Side)	Green	Tin	11 A	0.138 in	-40 °C	110 °C	300 V	14	90 °	Right Angle
TE Connectivity AMP Connectors 284512-5	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.134 in	0.287 in	UL94 V-0	Solder	1	Through Hole	5	Header Male Pins Shrouded (4 Side)	Green	Tin	11 A	0.138 in	-40 °C	110 °C	300 V	5	90 °	Right Angle

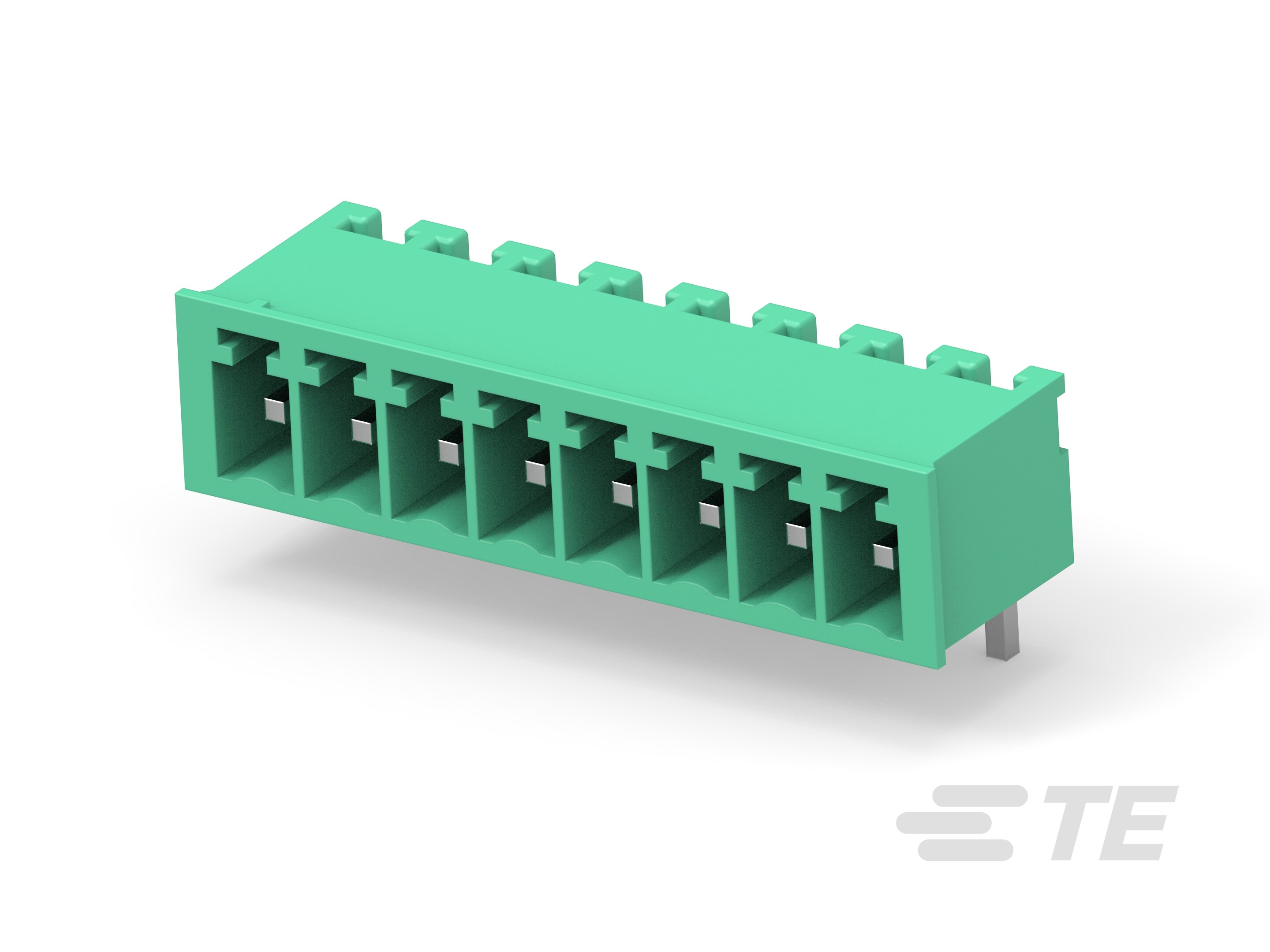

TE Connectivity AMP Connectors 284512-8	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.134 in	0.287 in	UL94 V-0	Solder	1	Through Hole	8	Header Male Pins Shrouded (4 Side)	Green	Tin	11 A	0.138 in	-40 °C	110 °C	300 V	8	90 °	Right Angle
TE Connectivity AMP Connectors 284512-9	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.134 in	0.287 in	UL94 V-0	Solder	1	Through Hole	9	Header Male Pins Shrouded (4 Side)	Green	Tin	11 A	0.138 in	-40 °C	110 °C	300 V	9	90 °	Right Angle
TE Connectivity AMP Connectors 284512-6	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.134 in	0.287 in	UL94 V-0	Solder	1	Through Hole	6	Header Male Pins Shrouded (4 Side)	Green	Tin	11 A	0.138 in	-40 °C	110 °C	300 V	6	90 °	Right Angle
TE Connectivity AMP Connectors 1-284512-9	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.134 in	0.287 in	UL94 V-0	Solder	1	Through Hole	19	Header Male Pins Shrouded (4 Side)	Green	Tin	11 A	0.138 in	-40 °C	110 °C	300 V	19	90 °	Right Angle
TE Connectivity AMP Connectors 2-284512-0	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.134 in	0.287 in	UL94 V-0	Solder	1	Through Hole	20	Header Male Pins Shrouded (4 Side)	Green	Tin	11 A	0.138 in	-40 °C	110 °C	300 V	20	90 °	Right Angle
TE Connectivity AMP Connectors 284512-4	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.134 in	0.287 in	UL94 V-0	Solder	1	Through Hole	4	Header Male Pins Shrouded (4 Side)	Green	Tin	11 A	0.138 in	-40 °C	110 °C	300 V	4	90 °	Right Angle
