3527 Series

Catalog

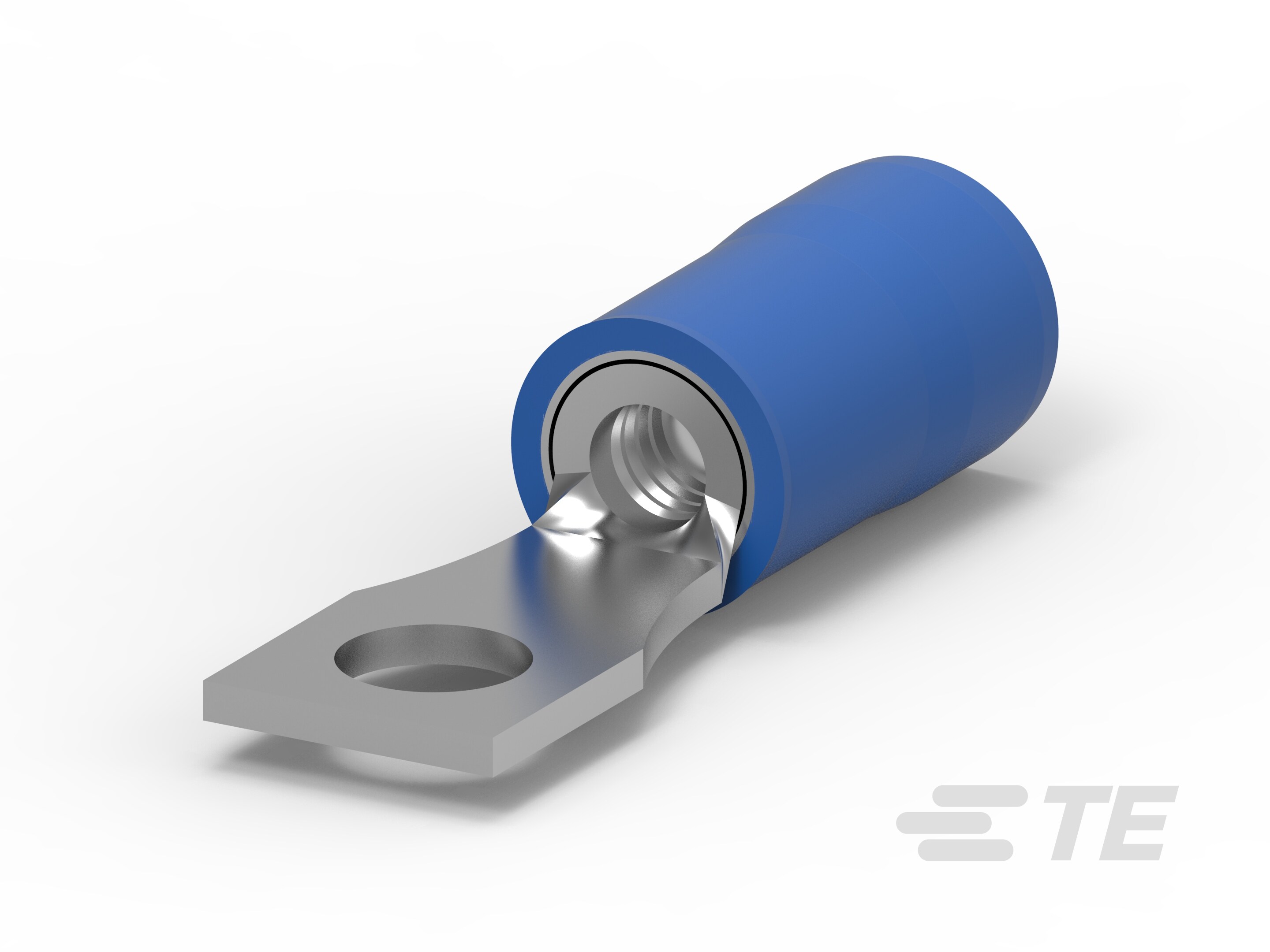

RING TONGUE TERMINAL, M4, #8, 14 AWG, 2.62 MM², PIDG SERIES, BLUE

Part	Contact Finish	Contact Material	Diameter - Ring ID	Tab Thickness	Terminal Type	Terminal Style	Termination	Mounting Type	Width - Outer Edges	Stud/Tab Size	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Features	Color	Insulation	Length - Overall	Thickness	Material - Insulation	Insulation Diameter (Max)	Insulation Diameter (Min)
TE Connectivity AMP Connectors 35279	Tin	Copper	0.171 in	0.031 in	Rectangular Tongue	Single Stud Hole	Crimp	Free Hanging (In-Line)	0.244 in	8 Stud	16 AWG	14 AWG	Serrated Termination	Blue	Insulated	0.856 in
TE Connectivity AMP Connectors 35274	Tin	Copper			Oval		Crimp	Free Hanging (In-Line)	0.468 in	0.25 Stud	16 AWG	14 AWG	Serrated Termination	Blue	Insulated	0.953 in	0.031 in	Nylon PA Polyamide	0.17 in	0.115 in
