840002I Series

FemtoClock Crystal-to-LVCMOS/LVTTL Frequency Synthesizer

Manufacturer: Renesas Electronics Corporation

Catalog

FemtoClock Crystal-to-LVCMOS/LVTTL Frequency Synthesizer

Part	Differential Output	Differential Input	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Output	Package Name	Input Ratio	Output Ratio	Type	Frequency - Max	Multiplier	Divider	PLL	Number of Circuits	Package Length	Package Width	Input	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)
Renesas Electronics Corporation 840002AGILF	No	No	2.375 V	3.465 V	LVCMOS LVTTL	16-TSSOP	1	2	Frequency Synthesizer	226.67 MHz	No	Yes	Yes with Bypass	1	0.173 in	4.4 mm	Crystal LVCMOS LVTTL	Surface Mount	-40 °C	85 °C

Catalog

FemtoClock Crystal-to-LVCMOS/LVTTL Frequency Synthesizer

Description

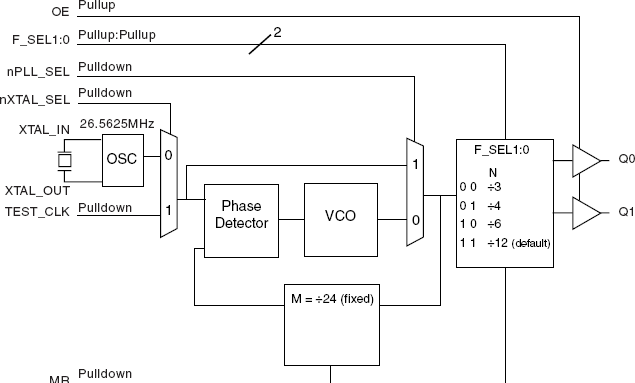

The 840002I is a 2 output LVCMOS/LVTTL synthesizer optimized to generate Fibre Channel reference clock frequencies. Using a 26.5625MHz 18pF parallel resonant crystal, the following frequencies can be generated based on the 2 frequency select pins (F_SEL1:0): 212.5MHz, 159.375MHz, 156.25MHz, 106.25MHz, and 53.125MHz. The 840002I uses our 3rd generation low phase noise VCO technology and can achieve 1ps or lower typical rms phase jitter, easily meeting Fibre Channel jitter requirements. The 840002I is packaged in a 16-pin TSSOP package.
