60713 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

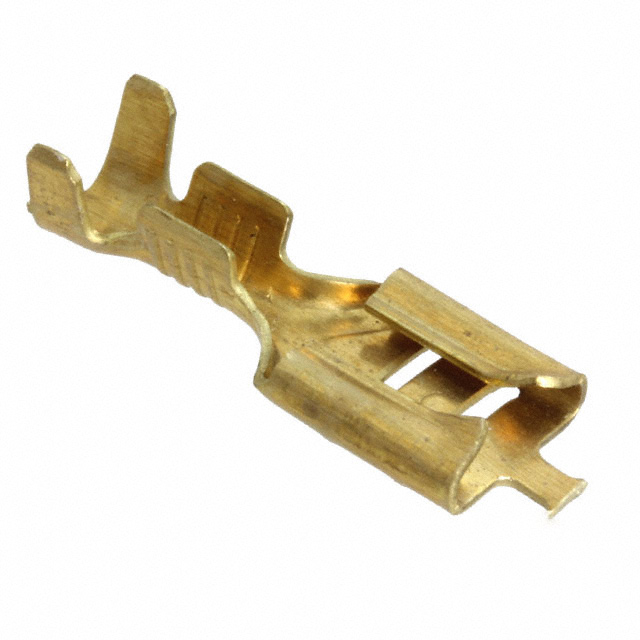

250 FAST REC 18-14 .016BR ROHS COMPLIANT: YES
| Part | Insulation Diameter (Max) | Insulation Diameter (Min) | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Length - Overall | Contact Material | Tab Thickness | Gender | Tab Length | Tab Width | Termination | Mounting Type | Terminal Type | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.17 in | 0.12 in | 18 AWG | 14 AWG | 0.753 in | Brass | 0.032 in | Female | 0.305 in | 0.25 in | Crimp | Free Hanging (In-Line) | Standard | Non-Insulated |
