ADL5531 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

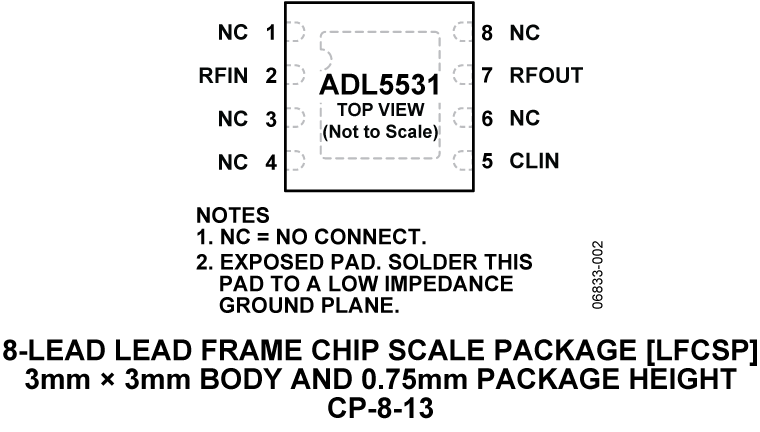

IC AMP W-CDMA 20-500MHZ 8LFCSP
| Part | Mounting Type | Package / Case | RF Type | Gain (Max) | Gain (Min) | P1dB | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Noise Figure | Frequency (Min) | Frequency (Max) | Current - Supply (Min) | Current - Supply (Max) | Test Frequency | Package Name | Package Length | Package Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Surface Mount | 8-VFDFN Exposed Pad CSP | CDMA GSM UMTS W-CDMA | 20.5 dB | 19.2 dB | 20.4 dBm | 5.25 V | 4.75 V | 3 dB | 20 MHz | 500 MHz | 100 mA | 110 mA | 380 MHz | 8-LFCSP-VD | 3 mm | 3 mm |
