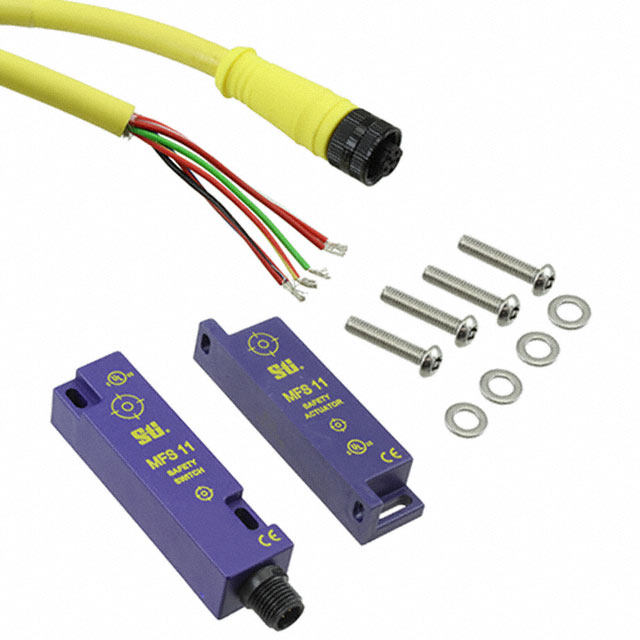

MFS-11 Series

Catalog

INTERLOCK MAGNETIC DPST

Part	Current Rating	Type	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Type	Circuit	Termination Style	Conduit Size	Voltage - Supply	Voltage Rating (DC)	Voltage Rating (AC)	Ingress Protection Description	Ingress Protection IP Rating	Features	Approval Agency	Must Release (Max)	Must Release (Min)	Must Operate (Length) (Max)	Must Operate (Length) (Min)
Omron Automation and Safety MFS-11P11CC5	2 A	Magnetic	-10 °C	55 °C	Non-Contact	DPST-NO/NC	Connector (Micro)	0.5 in	24 VDC	30 VDC	230 VAC	Dust Tight Waterproof	IP67	Status Indicator	CE cULus	12 mm	10 mm	9 mm	6 mm
Omron Automation and Safety MFS-11P11C3	2 A	Magnetic	-10 °C	55 °C	Non-Contact	DPST-NO/NC	Cable Leads		24 VDC	30 VDC	230 VAC	Dust Tight Waterproof	IP67	Status Indicator	CE cULus	12 mm	10 mm	9 mm	6 mm
Omron Automation and Safety MFS-11P20CC5	2 A	Magnetic	-10 °C	55 °C	Non-Contact	DPST-NC	Connector (Micro)	0.5 in	24 VDC	30 VDC	230 VAC	Dust Tight Waterproof	IP67	Status Indicator	CE cULus	12 mm	10 mm	9 mm	6 mm
Omron Automation and Safety MFS-11P20C10	2 A	Magnetic	-10 °C	55 °C	Non-Contact	DPST-NC	Cable Leads		24 VDC	30 VDC	230 VAC	Dust Tight Waterproof	IP67	Status Indicator	CE cULus	12 mm	10 mm	9 mm	6 mm
Omron Automation and Safety MFS-11P20CC	2 A	Magnetic	-10 °C	55 °C	Non-Contact	DPST-NC	Connector (Micro)	0.5 in	24 VDC	30 VDC	230 VAC	Dust Tight Waterproof	IP67	Status Indicator	CE cULus	12 mm	10 mm	9 mm	6 mm
Omron Automation and Safety MFS-11P11CC	2 A	Magnetic	-10 °C	55 °C	Non-Contact	DPST-NO/NC	Connector (Micro)	0.5 in	24 VDC	30 VDC	230 VAC	Dust Tight Waterproof	IP67	Status Indicator	CE cULus	12 mm	10 mm	9 mm	6 mm
