6600333 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER MULTI-BEAM 28POS PCB

Part	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Features	Contact Finish Thickness	Termination	Number of Positions	Mounting Type	Connector Type	Color	Power Contacts (Typical)	Signal Contacts (Typical)	Connector Style	Contact Finish	Pitch	Number of Positions Loaded	Current Rating	Number of Rows	Number of Positions Loaded

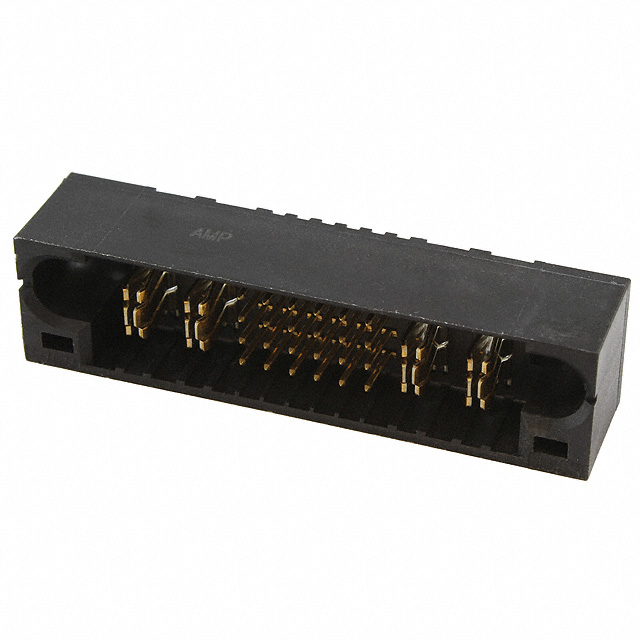

TE Connectivity AMP Connectors 1-6600333-2	UL94 V-0	-20 °C	105 °C	Board Lock Mating Guide	30 µin	Press-Fit	28	Through Hole	Blades Header Male Pins	Black	4	24	Multi-Beam	Gold	0.1 in	All

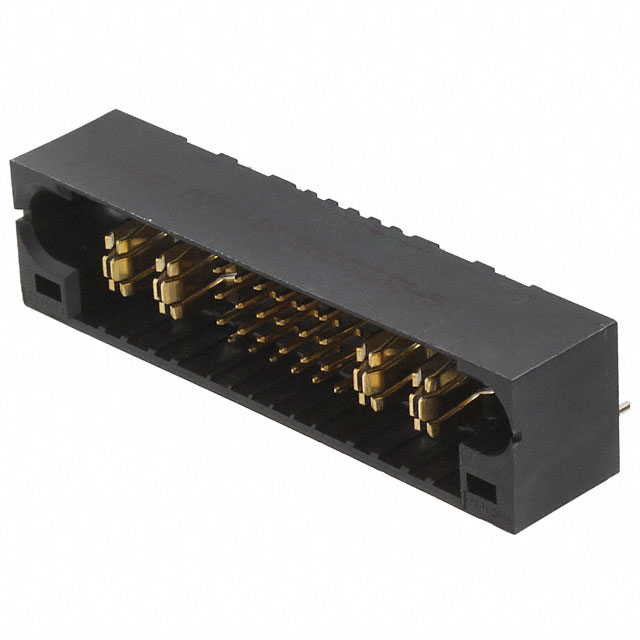

TE Connectivity AMP Connectors 6600333-5	UL94 V-0	-20 °C	105 °C	Board Lock Mating Guide		Press-Fit	28	Through Hole	Header Male Pins	Black	4	24	Multi-Beam		0.1 in	All	42 A	4
TE Connectivity AMP Connectors 3-6600333-7	UL94 V-0	-20 °C	105 °C	Board Lock Mating Guide		Press-Fit	28	Through Hole	Blades Header Male Pins	Black	4	24	Multi-Beam		0.1 in	All	42 A	4
TE Connectivity AMP Connectors 2-6600333-7	UL94 V-0	-20 °C	105 °C	Board Lock Mating Guide		Press-Fit	33	Through Hole	Blades Header Male Pins	Black	9	24	Multi-Beam		0.1 in		42 A	4	29
TE Connectivity AMP Connectors 3-6600333-6	UL94 V-0	-20 °C	105 °C	Mating Guide	30 µin	Press-Fit	64	Through Hole	Blades Header Male Pins	Black	8	56	Multi-Beam	Gold	0.1 in	All		4
TE Connectivity AMP Connectors 3-6600333-5	UL94 V-0	-20 °C	105 °C	Board Lock Mating Guide		Press-Fit	30	Through Hole	Blades Header Male Pins	Black	6	24	Multi-Beam		0.1 in	All	42 A	4
TE Connectivity AMP Connectors 4-6600333-3	UL94 V-0	-20 °C	105 °C	Board Lock Mating Guide		Press-Fit	28	Through Hole	Blades Header Male Pins	Black	4	24	Multi-Beam		0.1 in	All	42 A	4

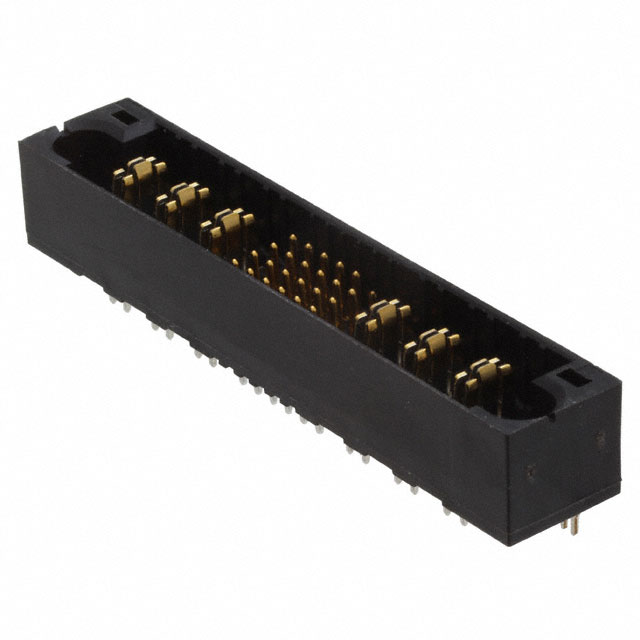

TE Connectivity AMP Connectors 3-6600333-9	UL94 V-0	-20 °C	105 °C	Board Lock Mating Guide	30 µin	Press-Fit	30	Through Hole	Blades Header Male Pins	Black	6	24	Multi-Beam	Gold	0.1 in	All		4
TE Connectivity AMP Connectors 2-6600333-6	UL94 V-0	-20 °C	105 °C	Board Lock Guide Pin	30 µin	Solder	23	Right Angle Through Hole	Blade Sockets Female Sockets Receptacle	Black	7	16	Multi-Beam	Gold	0.1 in	All		4

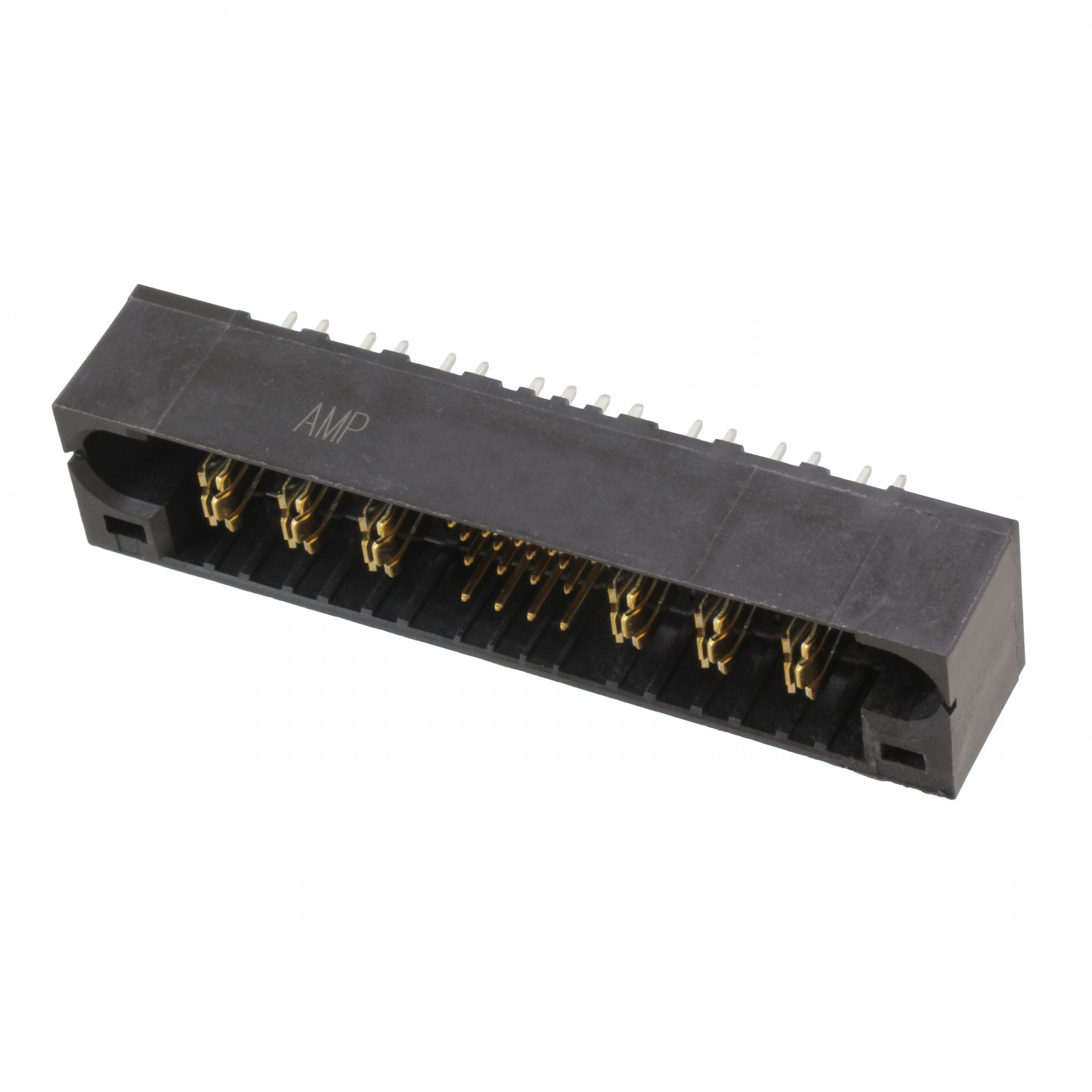

TE Connectivity AMP Connectors 6600333-7	UL94 V-0	-20 °C	105 °C	Board Lock Mating Guide		Press-Fit	22	Through Hole	Header Male Pins	Black	6	16	Multi-Beam		0.1 in	All	42 A	4
