000-35 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN N JACK STR 50 OHM SOLDER
| Part | Contact Termination | Cable Group | Frequency - Max | Fastening Type | Connector Type | Connector Style | Housing Color | Shield Termination | Mounting Type | Impedance | Number of Ports | Center Contact Material | Dielectric Material | Body Material | Includes | Includes Total Count | Center Contact Plating | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Body Finish | Features | Contact Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Solder | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | 11 GHz | Threaded | Female Socket Jack | N Type | Silver | Clamp | Free Hanging (In-Line) | 50 Ohm | 1 | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Brass | Braid Clamp Clamp Connector Contact Gasket | 5 pcs | Silver | 500 cycles | -40 °C | 150 °C | Nickel | |||

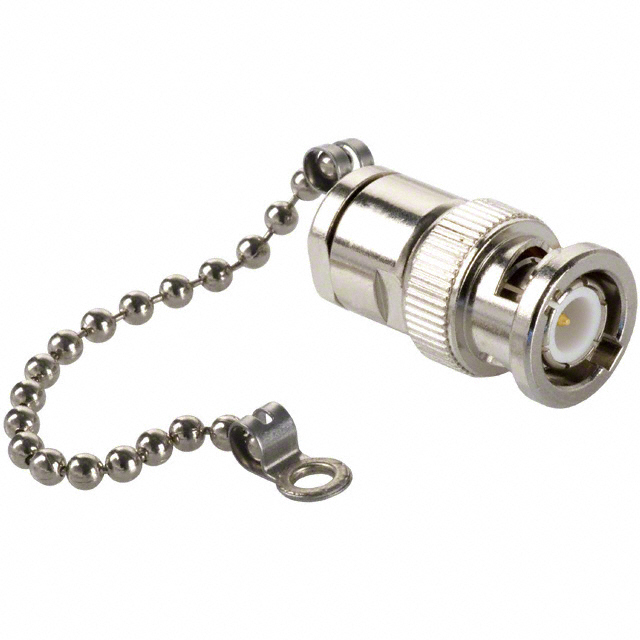

 McGill Microwave Systems | 2 GHz | Male Pin Plug | BNC | Cap Free Hanging | 75 Ohm | Polytetrafluoroethylene (PTFE) | Brass | Nickel | Chain | Gold | Brass | |||||||||||||

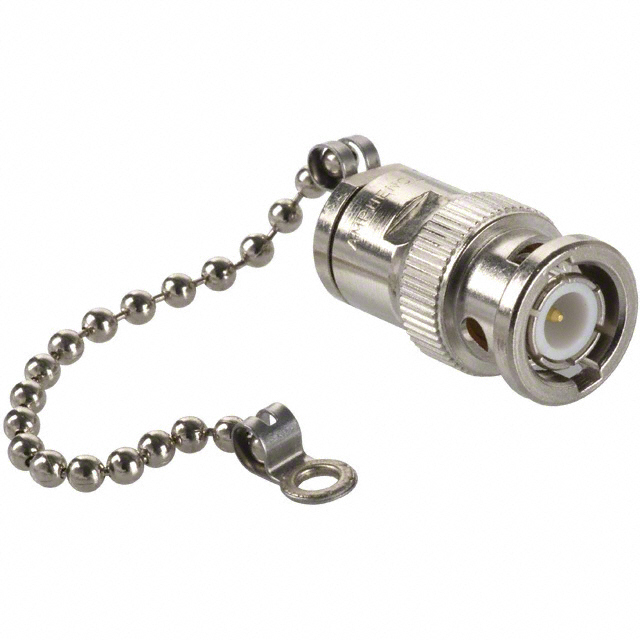

 McGill Microwave Systems | 4 GHz | Male Pin Plug | BNC | Cap Free Hanging | 51 Ohms | Polytetrafluoroethylene (PTFE) | Brass | Nickel | Chain | Gold | Brass |
