FUS 250V T/D MIDGET .100A
Description
AI

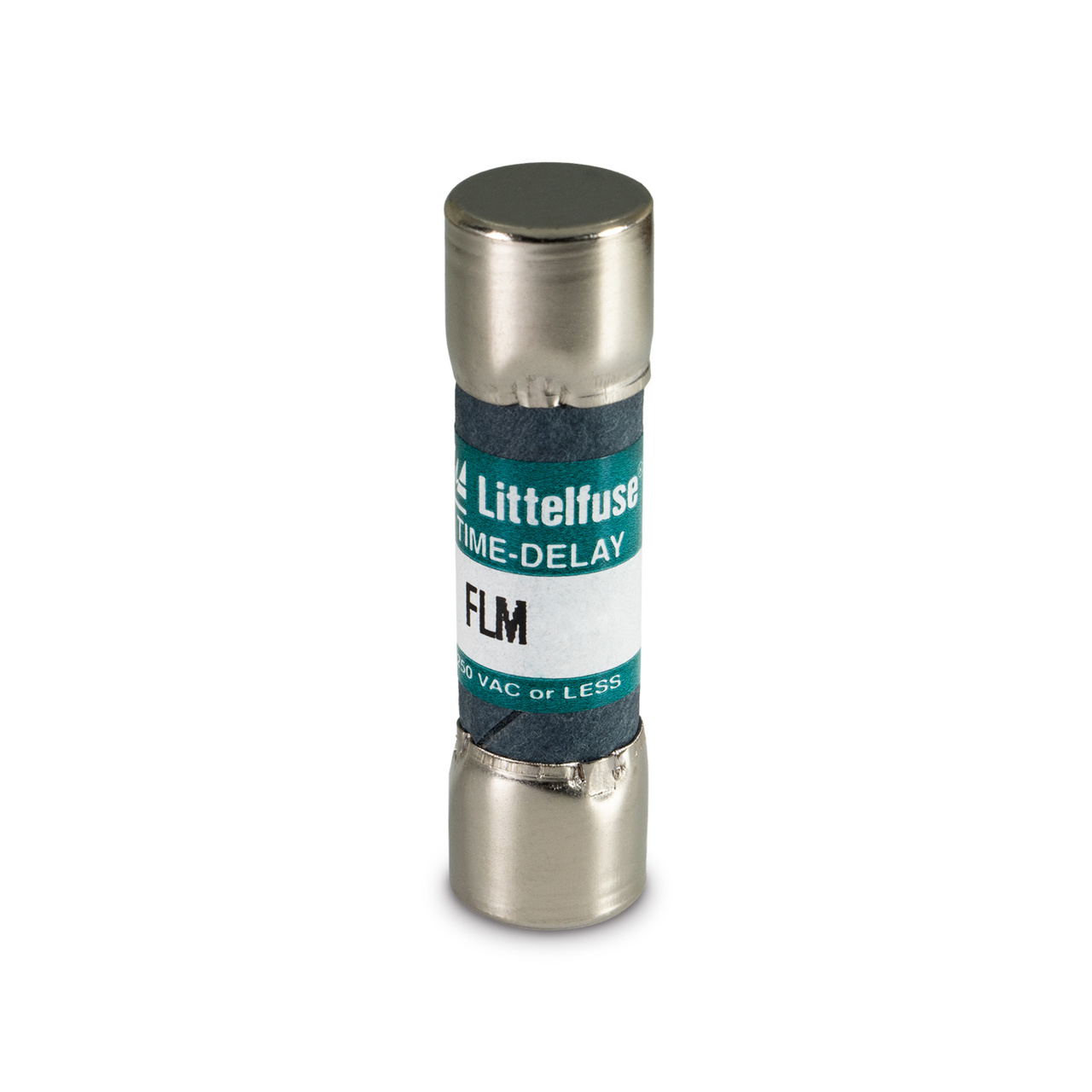

FLM.100 is a Midget fuse with an ampere rating of 0.1.
Beta
⌘K
FUS 250V T/D MIDGET .100A
FUS 250V T/D MIDGET .100A
| Part | DC Cold Resistance | Package Length | Package Name | Package / Case | Package Features | Package Width | Voltage Rating - DC | Applications | Response Time | Approval Agency | Voltage Rating - AC | Current Rating | Size / Dimension Diameter | Size / Dimension Length | Fuse Type | Breaking Capacity | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 188 Ohms | 10 mm | 5AG 5AG Midget | 10mm x 38mm (Midget) 5AG | Midget | 38 mm | 125 V | Motor Protection | Slow Blow | CSA PSE QPL UL | 250 V | 100 mA | 0.406 in | 1.5 in | Cartridge | 10 kA | Requires Holder |
