5212034 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

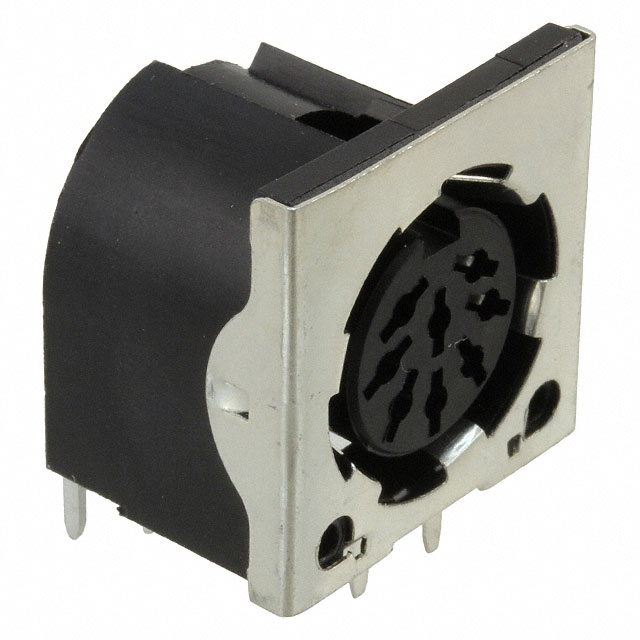

CONN RCPT FMALE DIN 8POS SOLDER
| Part | Connector Type | Number of Positions | Contact Finish Thickness - Mating | Fastening Type | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Insert Material | Shell Material | Contact Finish - Mating | Shielding | Termination | Applications | Mounting Type | Material Flammability Rating | Orientation | Primary Material | Shell Size - Insert | Current Rating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Female Sockets Receptacle | 8 | 100 µin | Push-Pull | Brass | -55 °C | 105 °C | PC Polycarbonate | Nylon Polyamide (PA) | Tin | Shielded | Solder | Audio | Right Angle Through Hole | UL94 V-0 | Keyed | Plastic | DIN (270 Degree) | 7.5 A | 250 V |
