046113 Series

Manufacturer: Molex

Catalog

CONN RCPT LPHPOWER 28POS PCB

Part	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Connector Type	Features	Color	Number of Positions	Connector Style	Number of Positions Loaded	Number of Rows	Contact Finish	Pitch	Mounting Type	Contact Finish Thickness	Termination	Power Contacts (Typical)
Molex 0461130283	-40 °C	105 °C	UL94 V-0	Outer Shroud Contacts Receptacle	Guide Pin	Black	28	LPHPower	All	2	Gold	0.05 in	Through Hole	30 µin	Press-Fit
Molex 0461130403	-40 °C	105 °C	UL94 V-0	Outer Shroud Contacts Receptacle	Guide Pin	Black	40	LPHPower	All	2	Gold	0.05 in	Through Hole	30 µin	Press-Fit

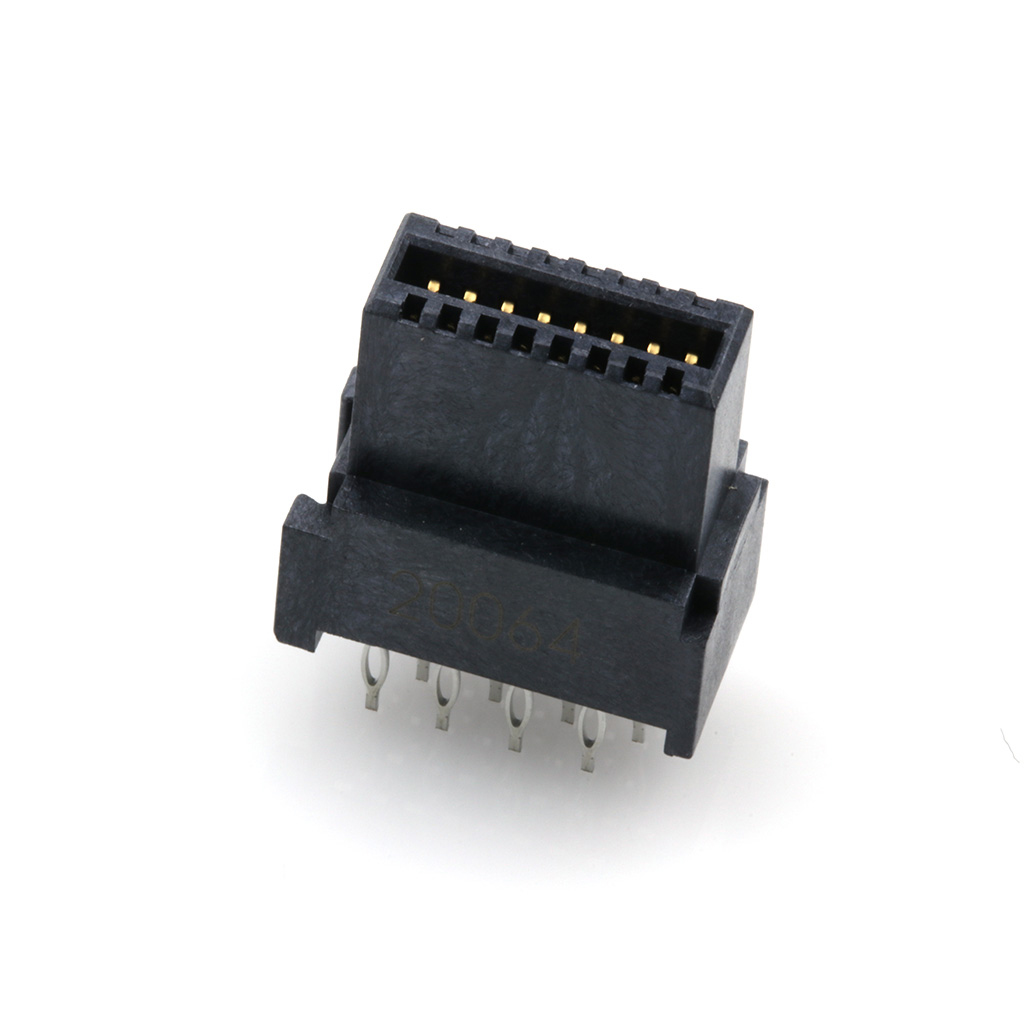

Molex 0461130161	-40 °C	105 °C	UL94 V-0	Outer Shroud Contacts Receptacle		Black	16	LPHPower	All	2	Gold	0.05 in	Through Hole	30 µin	Press-Fit
Molex 0461130363	-40 °C	105 °C	UL94 V-0	Outer Shroud Contacts Receptacle	Guide Pin	Black	36	LPHPower	All	2	Gold	0.05 in	Through Hole	30 µin	Press-Fit
Molex 0461130361	-40 °C	105 °C	UL94 V-0	Outer Shroud Contacts Receptacle		Black	36	LPHPower	All	2	Gold	0.05 in	Through Hole	30 µin	Press-Fit
Molex 0461130121	-40 °C	105 °C	UL94 V-0	Outer Shroud Contacts Receptacle		Black	12	LPHPower	All	2	Gold	0.05 in	Through Hole	30 µin	Press-Fit	12
Molex 0461130401	-40 °C	105 °C	UL94 V-0	Outer Shroud Contacts Receptacle		Black	40	LPHPower	All	2	Gold	0.05 in	Through Hole	30 µin	Press-Fit
Molex 0461130201	-40 °C	105 °C	UL94 V-0	Outer Shroud Contacts Receptacle		Black	20	LPHPower	All	2	Gold	0.05 in	Through Hole	30 µin	Press-Fit
Molex 0461130243	-40 °C	105 °C	UL94 V-0	Outer Shroud Contacts Receptacle	Guide Pin	Black	24 pos	LPHPower	All	2	Gold	0.05 in	Through Hole	30 µin	Press-Fit
