Q-030200 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

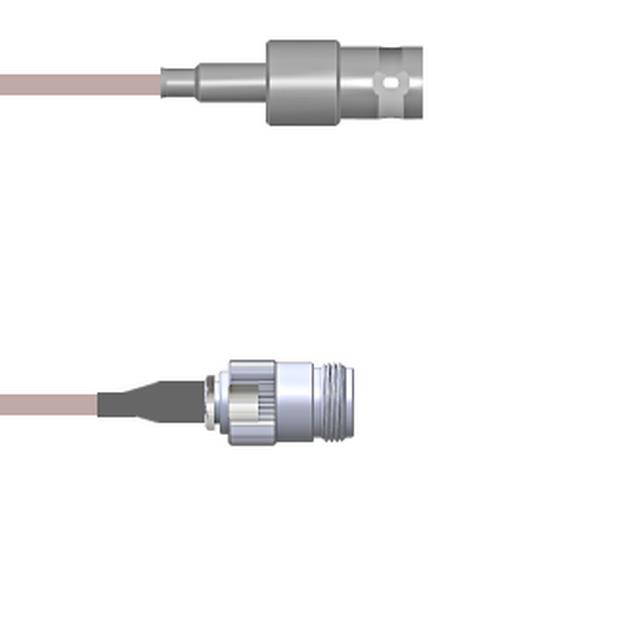

CBL ASSY BNC-NTYPE JK-JK 19.69"
| Part | 2nd Connector | Overall Impedance | 1st Connector Mounting Type | Color | 2nd Connector Mounting Type | 1st Contact Gender | Cable Type | Style | Frequency - Max | Length | 2nd Contact Gender | Features | 1st Connector | Length (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | N-Type Jack | 50 Ohms | Free Hanging (In-Line) | Copper | Free Hanging (In-Line) | Female | 316 RG | BNC N-Type | 4 GHz | 19.69 in | Female | Shielded | BNC Jack | |
McGill Microwave Systems | N-Type Jack | 50 Ohms | Free Hanging (In-Line) | Copper | Free Hanging (In-Line) | Female | 316 RG | BNC N-Type | 4 GHz | 24 in | Female | Shielded | BNC Jack | |

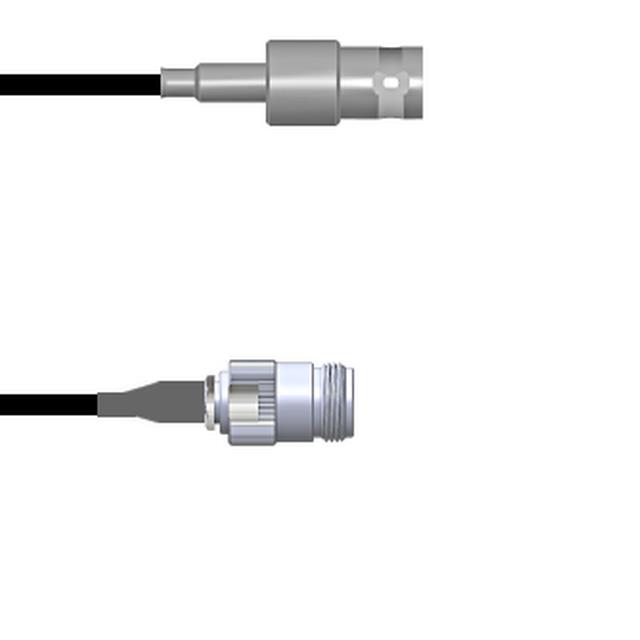

 McGill Microwave Systems | N-Type Jack | 50 Ohms | Free Hanging (In-Line) | Black | Free Hanging (In-Line) | Female | 174 RG | BNC N-Type | 4 GHz | 98.4 in | Female | Shielded | BNC Jack | 8.2 ft |
McGill Microwave Systems | N-Type Jack | 50 Ohms | Free Hanging (In-Line) | Copper | Free Hanging (In-Line) | Female | 316 RG | BNC N-Type | 4 GHz | Female | Shielded | BNC Jack | 6.6 ft | |
McGill Microwave Systems | N-Type Jack | 50 Ohms | Free Hanging (In-Line) | Copper | Free Hanging (In-Line) | Female | 316 RG | BNC N-Type | 4 GHz | 72 in | Female | Shielded | BNC Jack | |
McGill Microwave Systems | N-Type Jack | 50 Ohms | Free Hanging (In-Line) | Copper | Free Hanging (In-Line) | Female | 316 RG | BNC N-Type | 4 GHz | 118.1 in | Female | Shielded | BNC Jack | |
McGill Microwave Systems | N-Type Jack | 50 Ohms | Free Hanging (In-Line) | Copper | Free Hanging (In-Line) | Female | 316 RG | BNC N-Type | 4 GHz | 12 in | Female | Shielded | BNC Jack | |
McGill Microwave Systems | N-Type Jack | 50 Ohms | Free Hanging (In-Line) | Copper | Free Hanging (In-Line) | Female | 316 RG | BNC N-Type | 4 GHz | 98.4 in | Female | Shielded | BNC Jack | 8.2 ft |
McGill Microwave Systems | N-Type Jack | 50 Ohms | Free Hanging (In-Line) | Copper | Free Hanging (In-Line) | Female | 316 RG | BNC N-Type | 4 GHz | 9.843 in | Female | Shielded | BNC Jack | |
McGill Microwave Systems | N-Type Jack | 50 Ohms | Free Hanging (In-Line) | Copper | Free Hanging (In-Line) | Female | 316 RG | BNC N-Type | 4 GHz | 228.6 mm | Female | Shielded | BNC Jack |
