901-14 Series

Catalog

CONN SMA RCPT STR 50 OHM PCB

Part	Shield Termination	Contact Termination	Center Contact Material	Mounting Type	Impedance	Housing Color	Fastening Type	Number of Ports	Connector Style	Connector Type	Mating Cycles	Body Material	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Body Finish	Cable Group	Frequency - Max	Ingress Protection	Voltage Rating	Includes Total Count	Includes
McGill Microwave Systems 901-144	Solder	Solder	Beryllium Copper	Through Hole	50 Ohm	Gold	Threaded	1	SMA	Female Socket Recepture	500 cycles	Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Gold
McGill Microwave Systems 901-148-15	Crimp	Solder	Beryllium Copper	Free Hanging (In-Line) Right Angle	50 Ohm	Gold	Threaded	1	SMA	Male Pin Plug	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Gold	142 223 400 RG-55	12.4 GHz	Weatherproof	500 V	4 pcs	Connector Contact Ferrule Heat Shrink

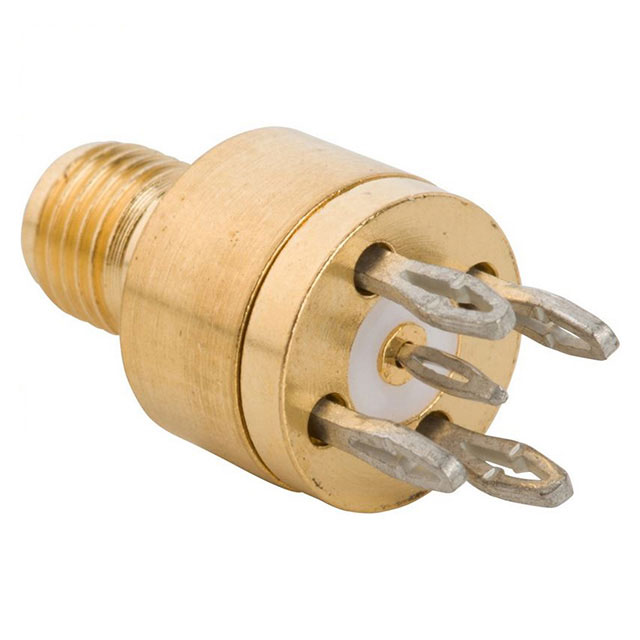

McGill Microwave Systems 901-144-PF8	Press-Fit	Press-Fit	Beryllium Copper	Through Hole	50 Ohm	Gold	Threaded	1	SMA	Female Socket Jack	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Gold		18 GHz
McGill Microwave Systems 901-143	Solder	Solder	Beryllium Copper	Right Angle Through Hole	50 Ohm	Gold	Threaded	1	SMA	Female Socket Jack	500 cycles	Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Gold		18 GHz

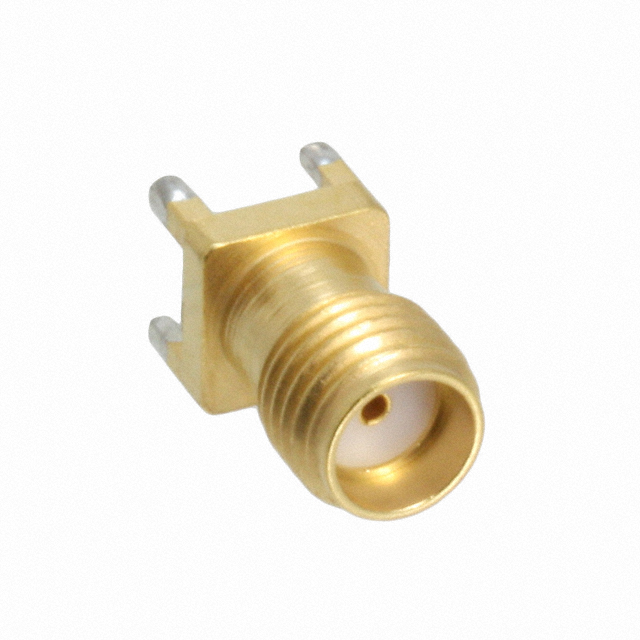

McGill Microwave Systems 901-144-2	Solder	Solder	Beryllium Copper	Through Hole	50 Ohm	Gold	Threaded	1	SMA	Female Socket Recepture	500 cycles	Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Gold

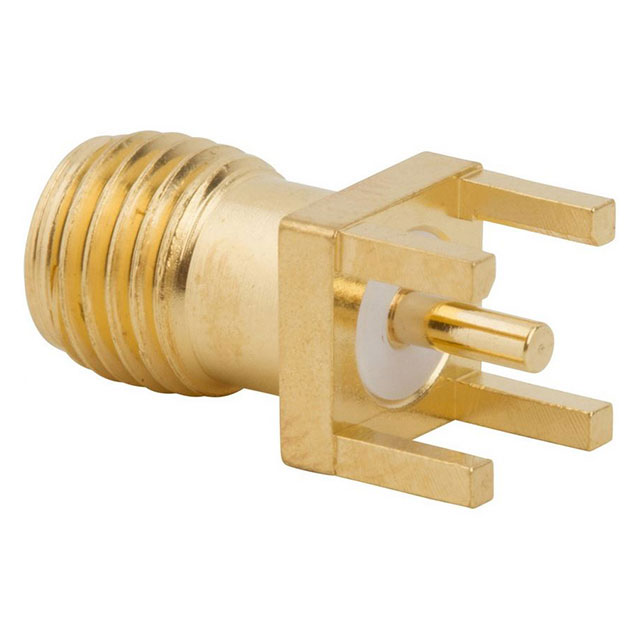

McGill Microwave Systems 901-144-3	Solder	Solder	Beryllium Copper	Through Hole	50 Ohm	Gold	Threaded	1	SMA	Female Socket Recepture	500 cycles	Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	Gold
