ADF5901 Series

24 GHz VCO and PGA with 2-Channel PA Output

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

24 GHz VCO and PGA with 2-Channel PA Output

Part	Frequency	Package / Case	Package Length	Package Name	Package Width	RF Type	Mounting Type	Function	Grade	Frequency (Min)	Frequency (Max)	Supplied Contents	Secondary Attributes	Type	Utilized IC / Part	Contents
Analog Devices Inc./Maxim Integrated ADF5901WCCPZ	24 GHz	32-WFQFN Exposed Pad CSP	5 mm	32-LFCSP	5 mm	Radar	Surface Mount	VCO	Automotive
Analog Devices Inc./Maxim Integrated ADF5901WCCPZ-RL7	24 GHz	32-WFQFN Exposed Pad CSP	5 mm	32-LFCSP	5 mm	Radar	Surface Mount	VCO	Automotive
Analog Devices Inc./Maxim Integrated ADF5901ACPZ-RL7		32-WFQFN Exposed Pad CSP	5 mm	32-LFCSP	5 mm	Radar	Surface Mount	VCO		24 GHz	24.25 GHz

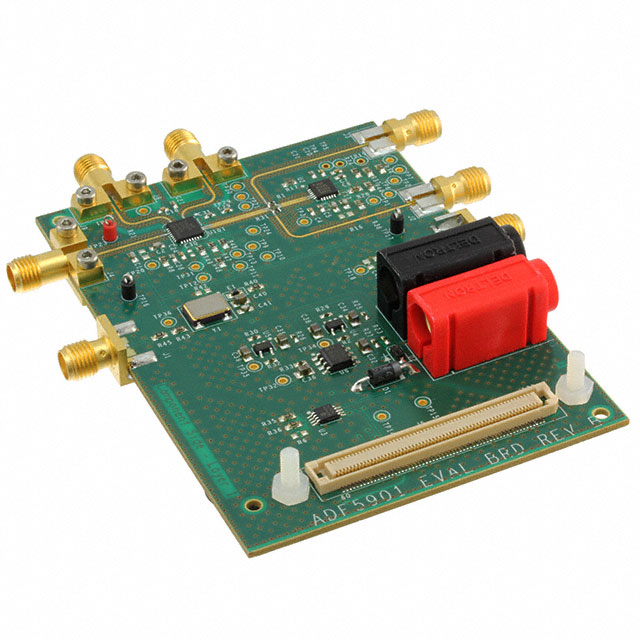

Analog Devices Inc./Maxim Integrated EV-ADF5901SD2Z								Voltage Controlled Oscillator (VCO)				Board(s)	Graphical User Interface (GUI)	Timing	ADF4159 ADF5901	Board
Analog Devices Inc./Maxim Integrated ADF5901ACPZ		32-WFQFN Exposed Pad CSP	5 mm	32-LFCSP	5 mm	Radar	Surface Mount	VCO		24 GHz	24.25 GHz

Catalog

24 GHz VCO and PGA with 2-Channel PA Output

Description

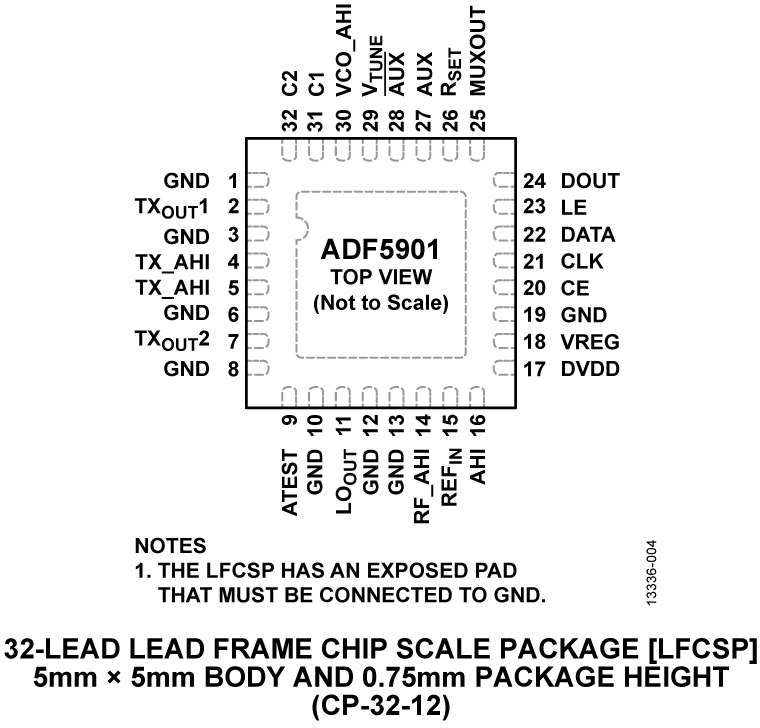

The ADF5901 is a 24 GHz Tx monolithic microwave integrated circuit (MMIC) with an on-chip, 24 GHz VCO with PGA and dual Tx channels for radar systems. The on-chip, 24 GHz VCO generates the 24 GHz signal for the two Tx channels and the LO output. Each Tx channel contains a power control circuit. There is also an on-chip temperature sensor.Control of all the on-chip registers is through a simple 4-wire interface.The ADF5901 comes in a compact 32-lead, 5 mm × 5 mm LFCSP package.ApplicationsAutomotive radarsIndustrial radarsMicrowave radar sensorsIndustrial sensorsPrecision instrumentationTank level sensorsSmart sensorsDoor openingEnergy savingCommercial sensors: object detection and trackingCars, boats, aircraft, and UAVs (drones): collision avoidanceIntelligent transportation systems: intelligent traffic monitoring and controlSurveillance and security
