ELFH102 Series

Catalog

TERM BLOCK HDR 10POS VERT 5.08MM

Part	Contact Mating Finish	Termination Style	Number of Levels	Housing Material	Features	Positions Per Level	Voltage - UL	Pitch	Header Orientation	Current - UL	Contact Material	Type	Number of Positions	Operating Temperature	Material Flammability Rating	Color	Mounting Type	Insulation Height	Contact Tail Length	Header Orientation Angle	Operating Temperature (Min)	Operating Temperature (Max)
McGill Microwave Systems ELFH10250J	Tin-Lead	Solder	1	PBT Polybutylene Terephthalate	Ejectors	10	300 V	5.08 mm	Vertical	15 A	Copper Alloy	Header Male Pins Shrouded (4 Side)	10	105 °C	UL94 V-0	Black	Through Hole	0.5 in	0.155 in

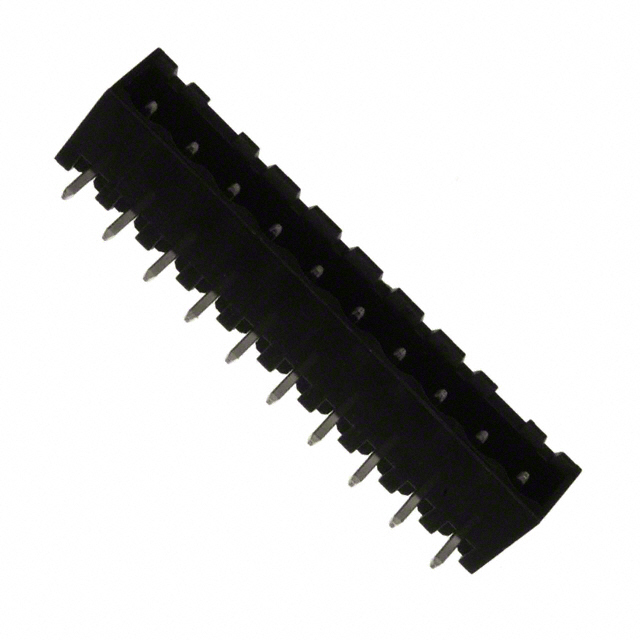

McGill Microwave Systems ELFH10210	Tin	Solder	1	PBT Polybutylene Terephthalate		10	300 V	5.08 mm	Right Angle	15 A	Brass	Header Male Pins Shrouded (4 Side)	10		UL94 V-0	Black	Through Hole	0.319 in		90 °	-40 °C	105 °C
McGill Microwave Systems ELFH10240	Tin	Solder	1			10	300 V	5.08 mm	Right Angle	15 A		Header Male Pins Shrouded (2 Side)	10			Black	Through Hole			90 °	-40 °C	105 °C
McGill Microwave Systems ELFH10280E
McGill Microwave Systems ELFH10290	Tin	Solder	1			10	300 V	5.08 mm	Vertical	15 A		Header Male Pins Shrouded (2 Side)	10			Black	Through Hole				-40 °C	105 °C
McGill Microwave Systems ELFH10230E
McGill Microwave Systems ELFH10210	Tin	Solder	1			10	300 V	5.08 mm	Right Angle	15 A		Header Male Pins Shrouded (4 Side)	10			Black	Through Hole			90 °	-40 °C	105 °C
McGill Microwave Systems ELFH10210E
McGill Microwave Systems ELFH10280E
McGill Microwave Systems ELFH10230E
