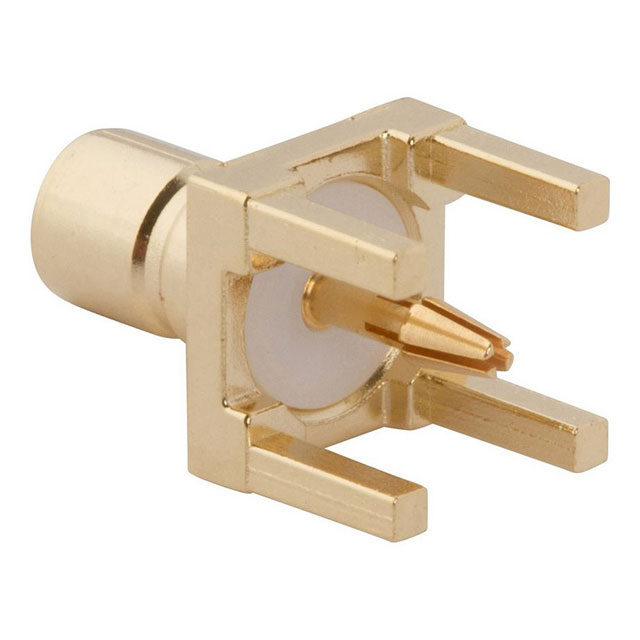

903-499J Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN SMB RCPT STR 50 OHM PCB
| Part | Body Finish | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Insertion Loss | Center Contact Plating | Dielectric Material | Body Material | Fastening Type | Connector Style | Center Contact Material | Shield Termination | Contact Termination | Features | Connector Type | Mounting Type | Frequency - Max | Housing Color | Number of Ports | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | 500 cycles | -65 °C | 165 °C | 0.3 dB | Gold | Polytetrafluoroethylene (PTFE) | Zinc Die Cast | Snap-On | SMB | Brass | Solder | Solder | Board Lock | Male Pin Receptacle | Through Hole | 4 GHz | Gold | 1 | 50 Ohm |
 McGill Microwave Systems | Gold | 500 cycles | -65 °C | 165 °C | 0.3 dB | Gold | Polytetrafluoroethylene (PTFE) | Zinc Die Cast | Snap-On | SMB | Brass | Solder | Solder | Jack Male Pin | Through Hole | 4 GHz | Gold | 1 | 50 Ohm |
