CLA1A Series

Catalog

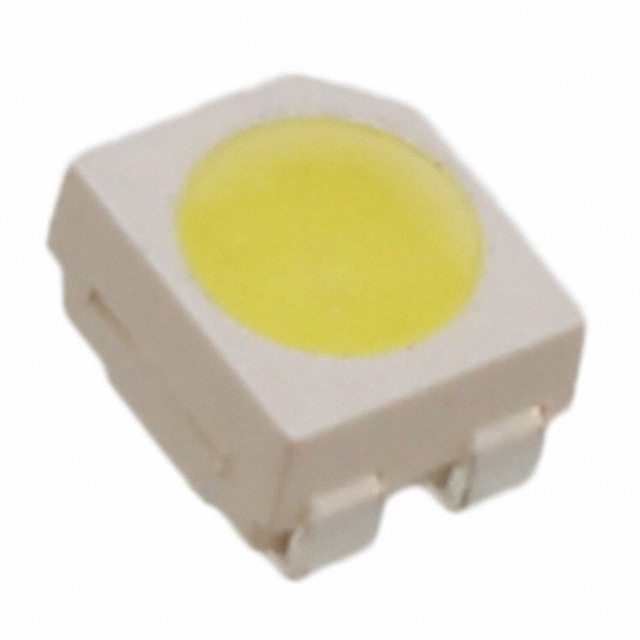

LED CLA1A-WKW WHT 3200K 4PLCC

Part	Current - Test	Lumens/Watt	CCT (K)	Package / Case	Voltage - Forward (Vf) (Typ)	Mounting Type	Package Name	Size / Dimension Width	Size / Dimension Length	CRI (Color Rendering Index) (Typ)	Height - Seated (Max)	Current - Max	Color	Flux	Thermal Resistance of Package
CreeLED, Inc. CLA1A-MKW-CXAYA513	30 mA	56 lm/W	3200 K	4-PLCC	3.6 V	Surface Mount	4-PLCC	0.11 in	0.126 in	80	0.083 in	35 mA	Warm White	6 lm	200 °C/W
CreeLED, Inc. CLA1A-WKB-CWBYA343	30 mA	65 lm/W		4-PLCC	3.6 V	Surface Mount	4-PLCC	0.11 in	0.126 in	72	0.083 in	35 mA	Cool White	7 lm	200 °C/W
CreeLED, Inc. CLA1A-WKW-CXBYB453	30 mA	65 lm/W	5500 K	4-PLCC	3.6 V	Surface Mount	4-PLCC	0.11 in	0.126 in	72	0.083 in	35 mA	Cool White	7 lm	200 °C/W
CreeLED, Inc. CLA1A-WKB-CWBYA153	30 mA	65 lm/W		4-PLCC	3.6 V	Surface Mount	4-PLCC	0.11 in	0.126 in	72	0.083 in	35 mA	Cool White	7 lm	200 °C/W
CreeLED, Inc. CLA1A-WKW-CXBYB453	30 mA	65 lm/W	5500 K	4-PLCC	3.6 V	Surface Mount	4-PLCC	0.11 in	0.126 in	72	0.083 in	35 mA	Cool White	7 lm
