153.5395.6402 Series

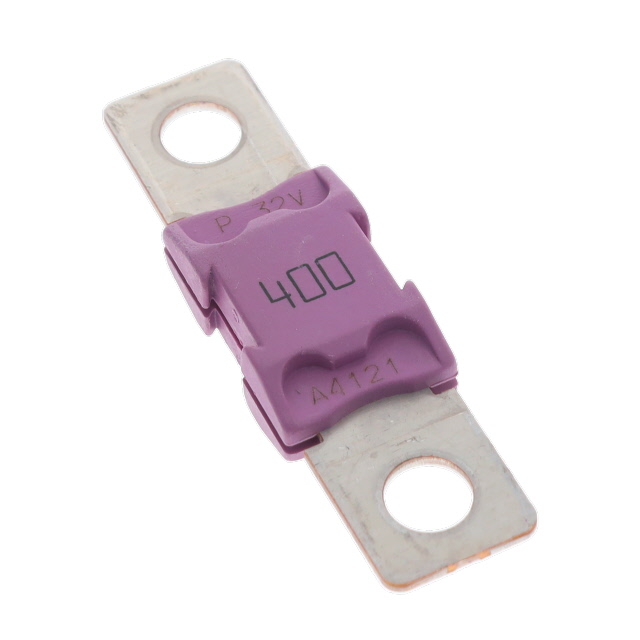

Fuse - BF2 32V / 1500A DC, 400A 200 pc

Catalog

Fuse - BF2 32V / 1500A DC, 400A 200 pc

Part	DC Cold Resistance	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Color	Breaking Capacity	Mounting Type	Current Rating	Melting I²t	Response Time	Voltage Rating - DC	Package / Case	Fuse Type
LITTELFUSE 153.5395.6402	0.00013 Ohms	0.382 in	1.142 in	0.74 in	Violet	2 kA	Bolt Mount	400 A	964000	Slow Blow	32 V	Auto Link	Automotive

Catalog

Fuse - BF2 32V / 1500A DC, 400A 200 pc

Description

Use this 400 A BF2 32V bolt-down automotive fuse for short circuit protection along high-current wiring harnesses. It employs SLO-BLO® technology to deliver time-delayed performance.
