MA1LAE Series

Catalog

CONN RCPT MALE 17POS GOLD CRIMP

Part	Connector Type	Shell Finish	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Current Rating	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Shell Material	Mounting Feature	Contact Finish - Mating	Primary Material	Color	Termination	Number of Positions	Voltage Rating	Voltage Rating (Type)	Shell Size - Insert	Contact Size	Type	Material Flammability Rating	Contact Shape	Note	Insert Material	Housing Color	Contact Type

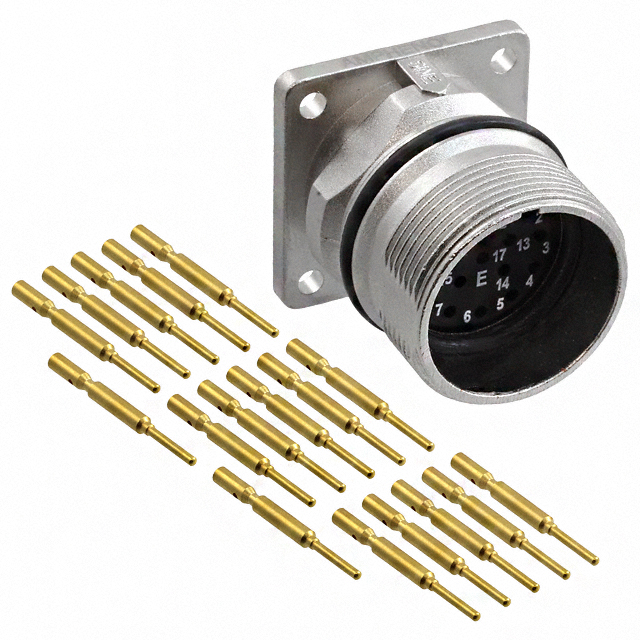

McGill Microwave Systems MA1LAE1700-KIT	Male Pins Receptacle	Nickel	E	-20 °C	130 °C	Shielded	9 A	Panel Mount	Dust Tight Waterproof	IP67	Threaded	Zinc Die Cast	Flange	Gold	Metal	Silver	Crimp	17	125 V	DC	M23-17

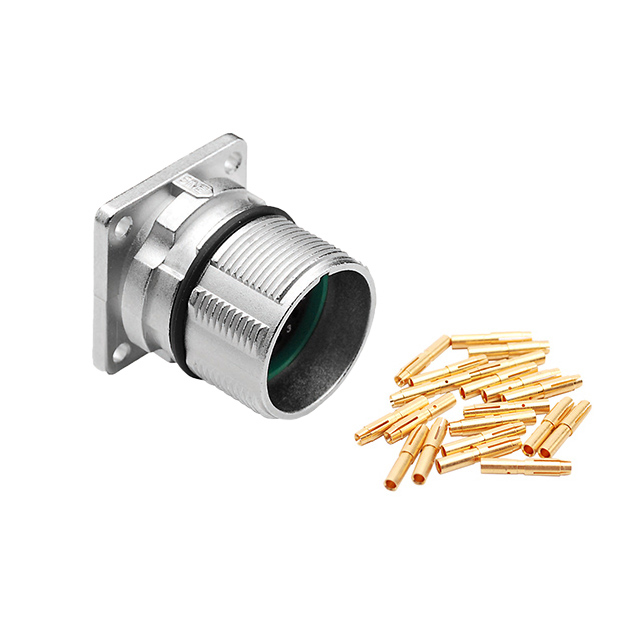

McGill Microwave Systems MA1LAE1200S-KIT	Female Sockets Receptacle	Nickel	E	-20 °C	130 °C	Shielded	9 A	Panel Mount	Dust Tight Waterproof	IP67	Threaded	Zinc Die Cast	Flange	Gold	Metal	Silver	Crimp	12	125 V	DC	M23-12

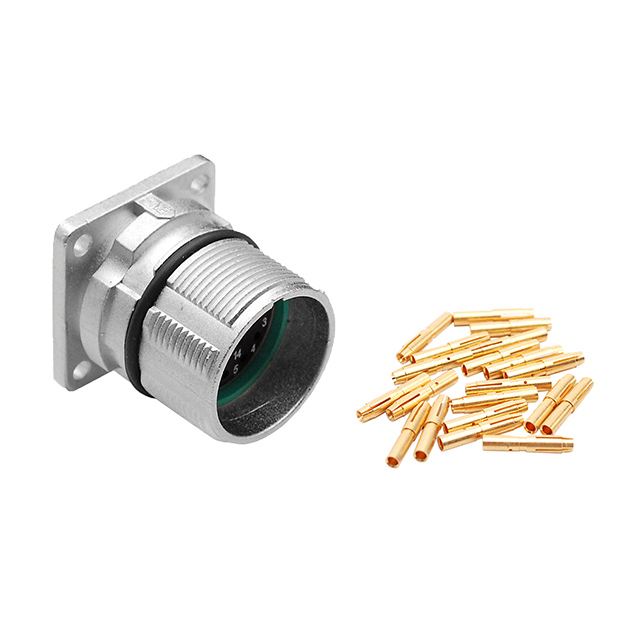

McGill Microwave Systems MA1LAE1700S-KIT	Female Sockets Receptacle	Nickel	E	-20 °C	130 °C	Shielded	9 A	Panel Mount	Dust Tight Waterproof	IP67	Threaded	Zinc Die Cast	Flange	Gold	Metal	Silver	Crimp	17	125 V	DC	M23-17

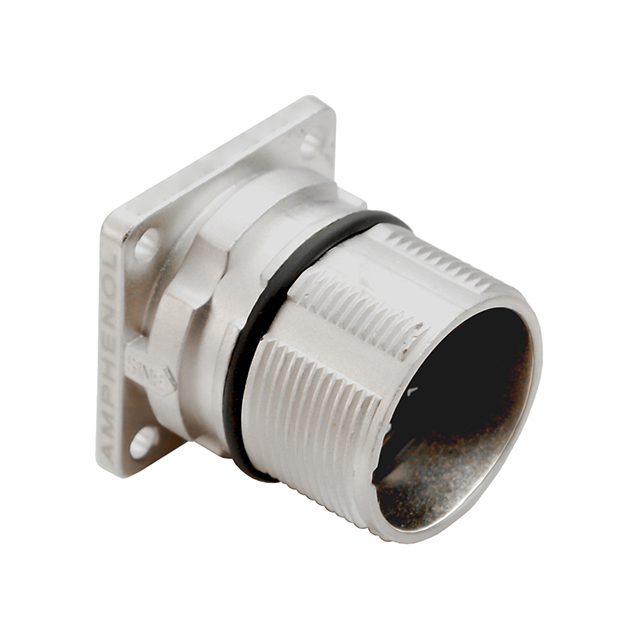

McGill Microwave Systems MA1LAE1600	Receptacle Housing	Nickel	E	-20 °C	130 °C	Shielded		Panel Mount	Dust Tight Waterproof	IP67	Threaded	Zinc Die Cast	Flange					16			M23-16	1 mm	For Female Sockets or Male Pins	UL94 V-0	Circular	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Silver	Crimp

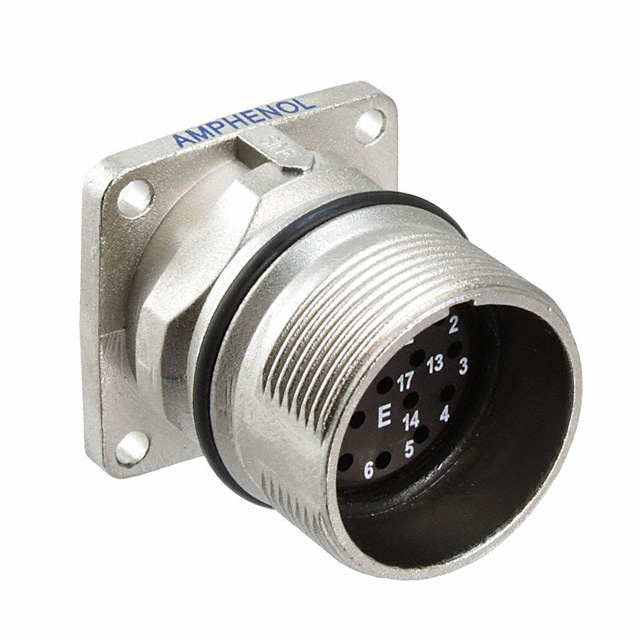

McGill Microwave Systems MA1LAE1700	Receptacle Housing	Nickel	E	-20 °C	130 °C	Shielded		Panel Mount	Dust Tight Waterproof	IP67	Threaded	Zinc Die Cast	Flange					17			M23-17	1 mm	For Female Sockets or Male Pins	UL94 V-0	Circular	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Silver	Crimp
