RT062028 Series

Catalog

CONN PLUG MALE 28POS GOLD CRIMP

Part	Shell Material	Number of Positions	Shell Finish	Connector Type	Cable Opening (Min)	Cable Opening (Max)	Color	Shielding	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Primary Material	Operating Temperature (Min)	Operating Temperature (Max)	Orientation	Voltage Rating	Mounting Type	Current Rating	Ingress Protection IP Rating	Ingress Protection Description	Termination	Features	Insert Material	Applications	Contact Material	Plating	Backshell Material	Contact Finish Thickness - Mating	Contact Type	Contact Shape	Contact Size	Note	Housing Color	Type	Voltage Rating (Type)	Includes	Includes Total Count
McGill Microwave Systems RT062028PNH03SS-K	Zinc Die Cast	28	Nickel	Male Pins Plug	0.63 in	0.669 in	Silver	Shielded	28	20	UL94 V-0	Bayonet Lock	Gold	Metal	-40 °C	115 °C	N (Normal)	500 V	Free Hanging (In-Line)	3 A	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	Backshell Coupling Nut	Nylon 6/6 PA66 Polyamide	Aerospace Automation Industrial Telecom Transportation	Brass	Nickel	Zinc Die Cast	Flash
McGill Microwave Systems RT062028SNH	Zinc Alloy	28	Nickel	Plug Housing				Shielded	28	20	UL94 V-0	Bayonet Lock			-40 °C	105 °C	N (Normal)		Free Hanging (In-Line)		IP67	Dust Tight Waterproof		Coupling Nut	Thermoplastic						Crimp	Circular	16 S	Contacts Not Included	Silver	For Female Sockets

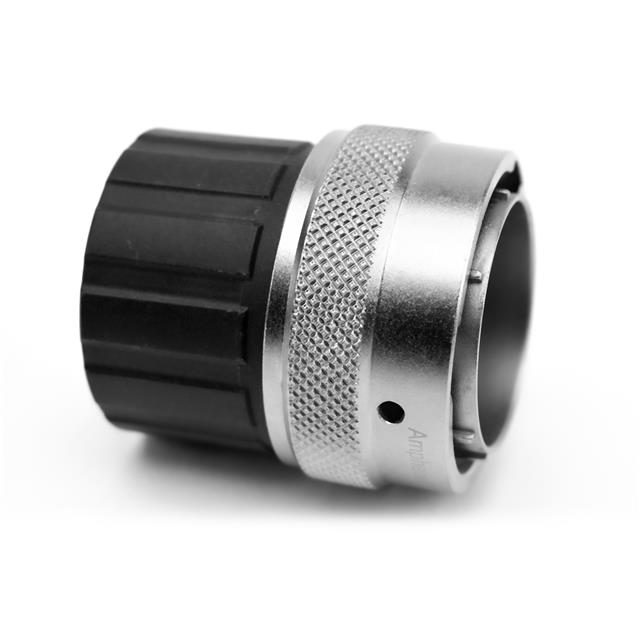

McGill Microwave Systems RT062028SNHEC03R	Zinc Alloy	28	Nickel	Plug Housing				Shielded	28	20	UL94 V-0	Bayonet Lock			-40 °C	125 °C	N (Normal)		Free Hanging (In-Line)		IP67	Dust Tight Waterproof		Backshell Coupling Nut	Thermoplastic						Crimp	Circular	16 S	Contacts Not Included	Silver	For Female Sockets
McGill Microwave Systems RT062028PNH	Zinc Alloy	28	Nickel	Plug Housing				Shielded	28	20	UL94 V-0	Bayonet Lock			-40 °C	105 °C	N (Normal)		Free Hanging (In-Line)		IP67	Dust Tight Waterproof		Coupling Nut	Thermoplastic						Crimp	Circular	16 S	Contacts Not Included	Silver	For Male Pins
McGill Microwave Systems RT062028SNHECR	Zinc Alloy	28	Nickel	Plug Housing				Shielded	28	20	UL94 V-0	Bayonet Lock		Metal	-40 °C	105 °C	N (Normal)		Free Hanging (In-Line)		IP67	Dust Tight Waterproof		Coupling Nut	Thermoplastic						Crimp	Circular	16 S	Contacts Not Included	Silver	For Female Sockets
McGill Microwave Systems RT062028SNH-K	Zinc Alloy	28	Nickel	Female Sockets Plug	0.65 in	0.866 in	Silver	Shielded	28	20	UL94 V-0	Bayonet Lock		Metal	-40 °C	105 °C	N (Normal)	300 VAC/DC	Free Hanging (In-Line)	13 A	IP67	Dust Tight Waterproof	Crimp	Backshell Coupling Nut	Thermoplastic	Aerospace Automation Industrial Telecom Transportation		Nickel	Zinc Alloy								DC

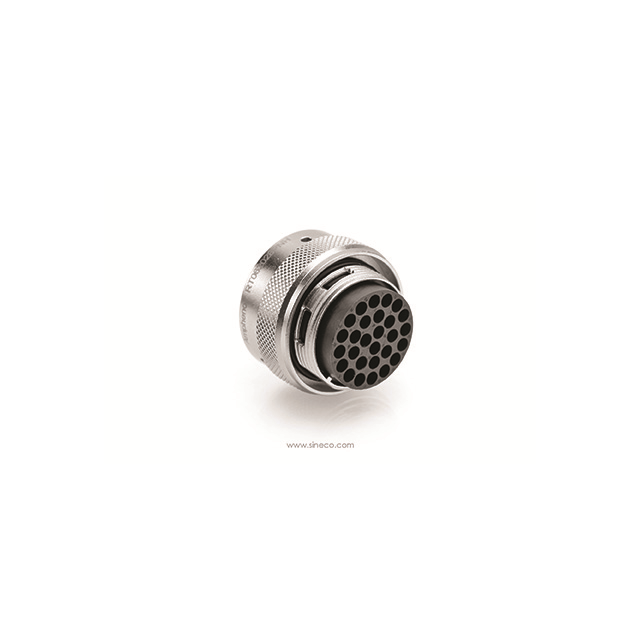

McGill Microwave Systems RT062028PNH03	Zinc Alloy	28	Nickel	Plug Housing				Shielded	28	20	UL94 V-0	Bayonet Lock			-40 °C	125 °C	N (Normal)		Free Hanging (In-Line)		IP67	Dust Tight Waterproof		Coupling Nut	Thermoplastic						Crimp	Circular	16 S	Contacts Not Included	Silver	For Male Pins		Connector Gasket O-Ring	3 pcs

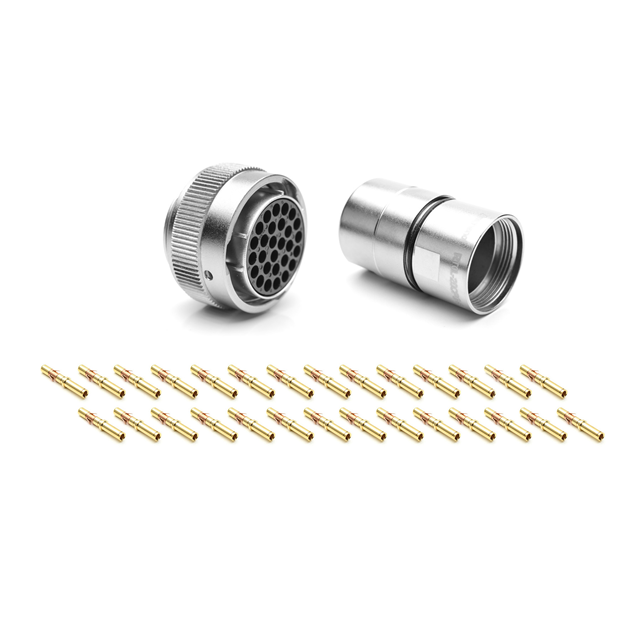

McGill Microwave Systems RT062028SNH03SS-K	Zinc Die Cast	28	Nickel	Female Sockets Plug	0.63 in	0.669 in	Silver	Shielded	28	20	UL94 V-0	Bayonet Lock	Gold	Metal	-40 °C	115 °C	N (Normal)	500 V	Free Hanging (In-Line)	3 A	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	Backshell Coupling Nut	Nylon 6/6 PA66 Polyamide	Aerospace Automation Industrial Telecom Transportation	Brass	Nickel	Zinc Die Cast	Flash
