Z300-C Series

Catalog

WIREWOUND RESISTORS - THROUGH HOLE 5WATT 330OHMS 5% 12KV SURGE

Part	Temperature Coefficient	Package Name	Composition	Number of Terminations	Package / Case	Resistance	Tolerance	Size / Dimension Length	Size / Dimension Diameter	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Features
Vishay Dale Z34081833300J6DC12	200 ppm/°C	Axial	Wirewound	2	Axial	330 Ohm	5 %	0.709 in	0.295 in	5 W	250 °C	-55 °C	Flame Retardant Coating High Voltage Pulse Withstanding Safety

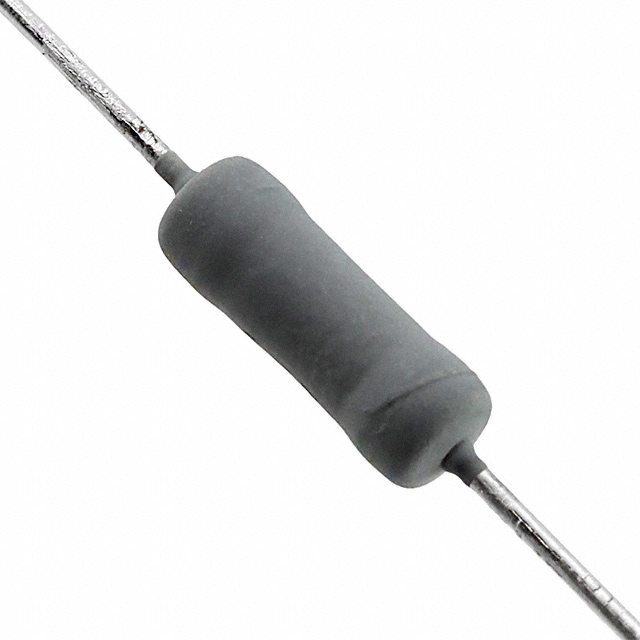

Vishay Dale Z32041433300J2CC06	200 ppm/°C	Axial	Wirewound	2	Axial	330 Ohm	5 %	0.512 in	0.189 in	3 W	250 °C	-55 °C	Flame Retardant Coating High Voltage Pulse Withstanding Safety
Vishay Dale Z32041436809J2CC04	200 ppm/°C	Axial	Wirewound	2	Axial	68 Ohm	5 %	0.512 in	0.189 in	3 W	250 °C	-55 °C	Flame Retardant Coating High Voltage Pulse Withstanding Safety
Vishay Dale Z32041433300J2CC06	200 ppm/°C	Axial	Wirewound	2	Axial	330 Ohm	5 %	0.512 in	0.189 in	3 W	250 °C	-55 °C	Flame Retardant Coating High Voltage Pulse Withstanding Safety
