SP Series

Catalog

LOUDSPEAKER CONNECTORS 2P CABLE CONN SCREW BLUE/NICKEL METAL

Part	Current Rating	Orientation	Features	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Min)	Operating Temperature (Max)	Color	Fastening Type	Primary Material	Termination	Shell Finish	Shell Material	Contact Finish - Mating	Mounting Type	Connector Type	Number of Positions	Mounting Feature	Material Flammability Rating	Shielding

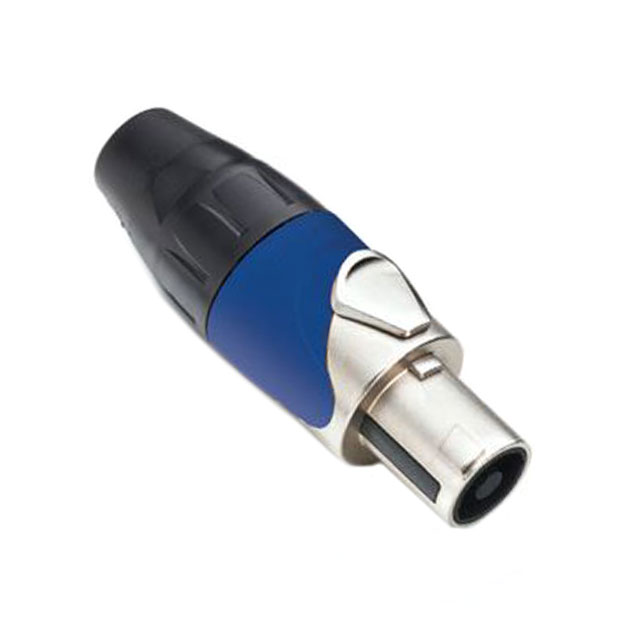

McGill Microwave Systems SP-2-FN	20 A	Keyed	Backshell	IP54	Dust Protected Water Resistant	-25 °C	75 °C	Silver	Latch Lock	Metal	Screw	Nickel	Zinc Die Cast	Silver	Free Hanging (In-Line)	Non-Gendered Plug	2
McGill Microwave Systems SP-2-MD	20 A	Keyed		IP54	Dust Protected Water Resistant	-25 °C	75 °C		Latch Holder	Plastic	Solder Tabs		Glass Filled Nylon 6/6 Polyamide (PA66)	Silver	Panel Mount	Non-Gendered Receptacle	2	Flange
McGill Microwave Systems SP-2-MDH	30 A	Keyed		IP54	Dust Protected Water Resistant	-25 °C	75 °C	Black	Latch Holder	Plastic	Solder	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	Silver	Panel Mount Right Angle Through Hole	Non-Gendered Receptacle	2	Flange	UL94 HB	Unshielded
McGill Microwave Systems SP-4-F	20 A	Keyed	Backshell	IP54	Dust Protected Water Resistant	-25 °C	75 °C		Latch Lock	Plastic	Screw		Glass Filled Nylon 6/6 Polyamide (PA66)	Silver	Free Hanging (In-Line)	Non-Gendered Plug	4
