SFR16S Series

Catalog

METAL FILM RESISTORS - THROUGH HOLE THE FACTORY IS CURRENTLY NOT ACCEPTING ORDERS FOR THIS PRODUCT.

Part	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Resistance	Package / Case	Temperature Coefficient	Tolerance	Number of Terminations	Size / Dimension Length	Size / Dimension Diameter	Power (Watts)	Power (Watts) Options	Composition	Temperature Coefficient (Highest)	Temperature Coefficient (Lowest)
Vishay Dale SFR16S0002000FR500	Axial	155 °C	-55 °C	200 Ohm	Axial	100 ppm/°C	1 %	2	0.138 in	0.075 in	500 mW	1/2W	Metal Film
Vishay Dale SFR16S0003901JA500		155 °C	-55 °C	3.9 kOhm	Axial	100 ppm/°C	5 %	2	0.138 in	0.075 in	500 mW	1/2W	Metal Film

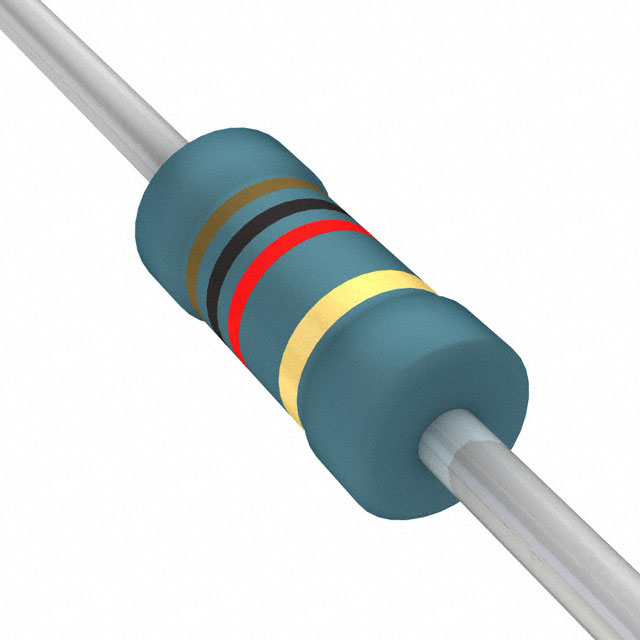

Vishay Dale SFR16S0001001JA500		155 °C	-55 °C	1 kOhm	Axial	100 ppm/°C	5 %	2	0.138 in	0.075 in	500 mW	1/2W	Metal Film
Vishay Dale SFR16S0004709JA100		155 °C	-55 °C	47 Ohms	Axial	100 ppm/°C	5 %	2	0.138 in	0.075 in	500 mW	1/2W	Metal Film
Vishay Dale SFR16S0001503FR500	Axial	155 °C	-55 °C	150 kOhm	Axial	250 ppm/°C	1 %	2	0.138 in	0.075 in	500 mW	1/2W	Metal Film	250 ppm/°C	-250 ppm/°C
Vishay Dale SFR16S0001009JA500		155 °C	-55 °C	10 Ohms	Axial	100 ppm/°C	5 %	2	0.138 in	0.075 in	500 mW	1/2W	Metal Film
Vishay Dale SFR16S0007509FR500	Axial	155 °C	-55 °C	75 Ohm	Axial	100 ppm/°C	1 %	2	0.138 in	0.075 in	500 mW	1/2W	Metal Film

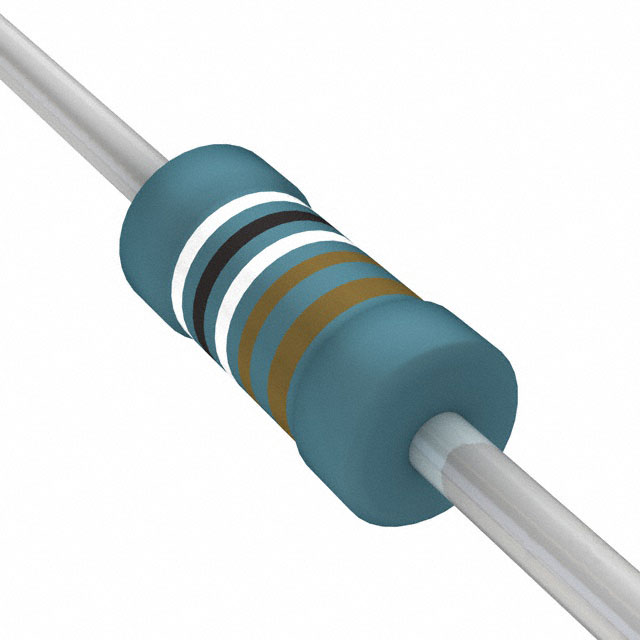

Vishay Dale SFR16S0009091FR500	Axial	155 °C	-55 °C	9.09 kOhm	Axial	100 ppm/°C	1 %	2	0.138 in	0.075 in	500 mW	1/2W	Metal Film
Vishay Dale SFR16S0001910FR500	Axial	155 °C	-55 °C	191 Ohm	Axial	100 ppm/°C	1 %	2	0.138 in	0.075 in	500 mW	1/2W	Metal Film

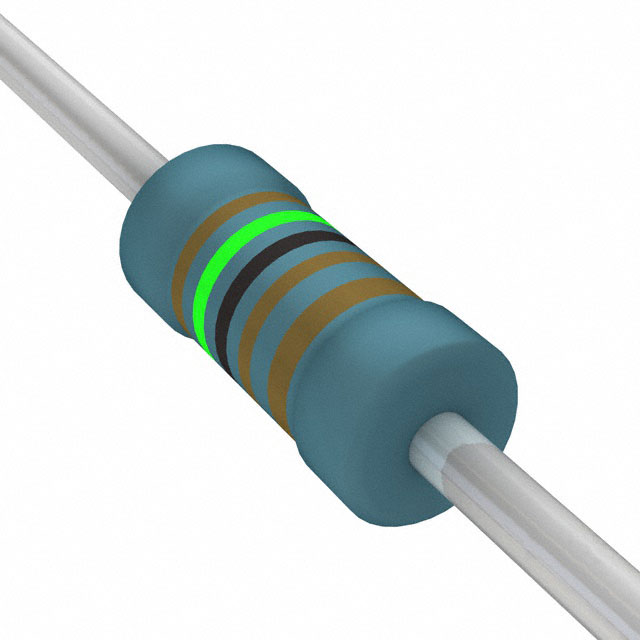

Vishay Dale SFR16S0001501FR500	Axial	155 °C	-55 °C	1.5 kOhms	Axial	100 ppm/°C	1 %	2	0.138 in	0.075 in	500 mW	1/2W	Metal Film
